Directional Couplers are used when part of a signal needs

to be separated off. Typical coupling ranges are from 3 dB

to 50 dB

Features

• IP 65

• Industry leading <-160 dBc PIM rating

• Covers Cellular bands and WiMAX from 698-2700 MHz

• RoHS Compliant

Applications

• May be used in place of power splitters when a known

value of coupling is needed

• In Building and Outdoor DAS Systems requiring best PIM

performance

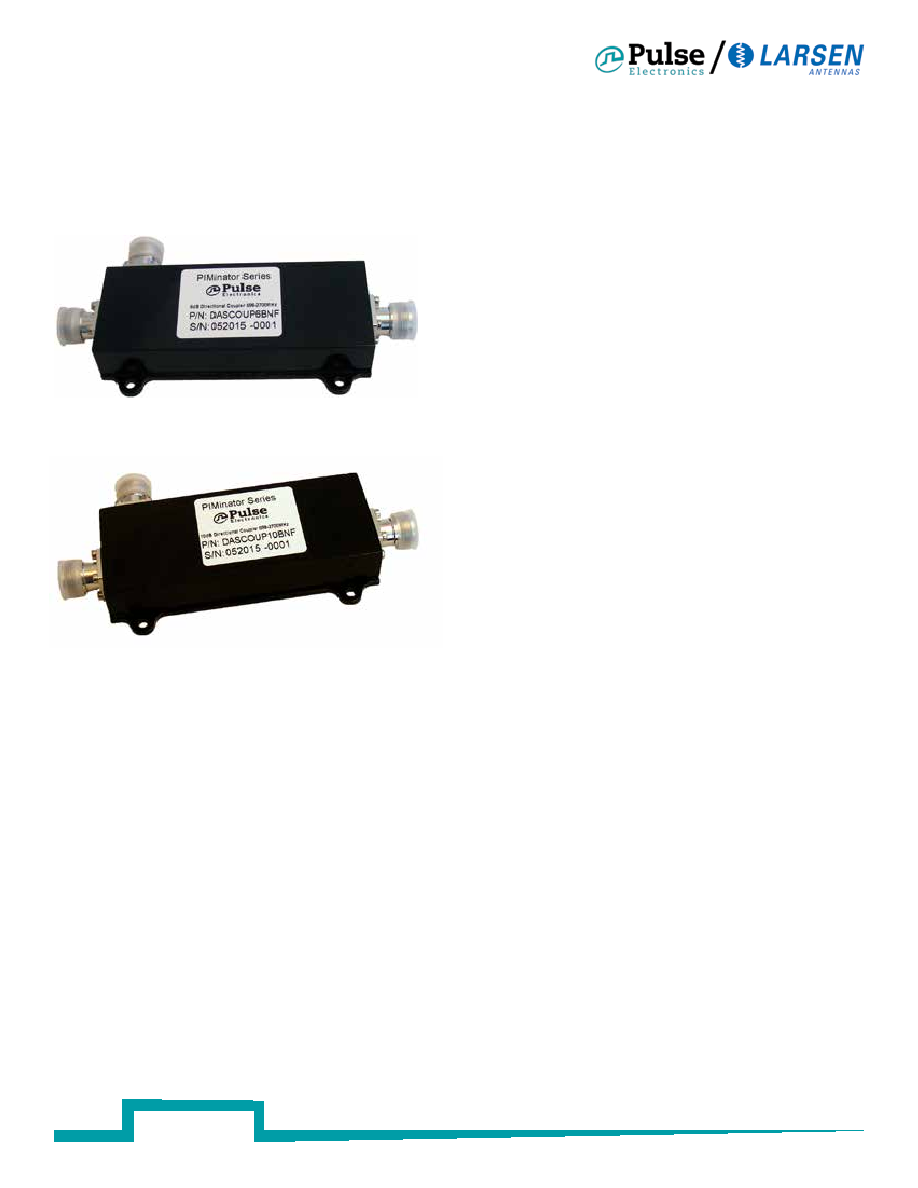

Directional Coupler,

698-2700 MHz, Low PIM

Pulse Part Number DASCOUPxxDBNF Series
