CD5.241

CD-Series

DC/DC Converter 24V, 5A

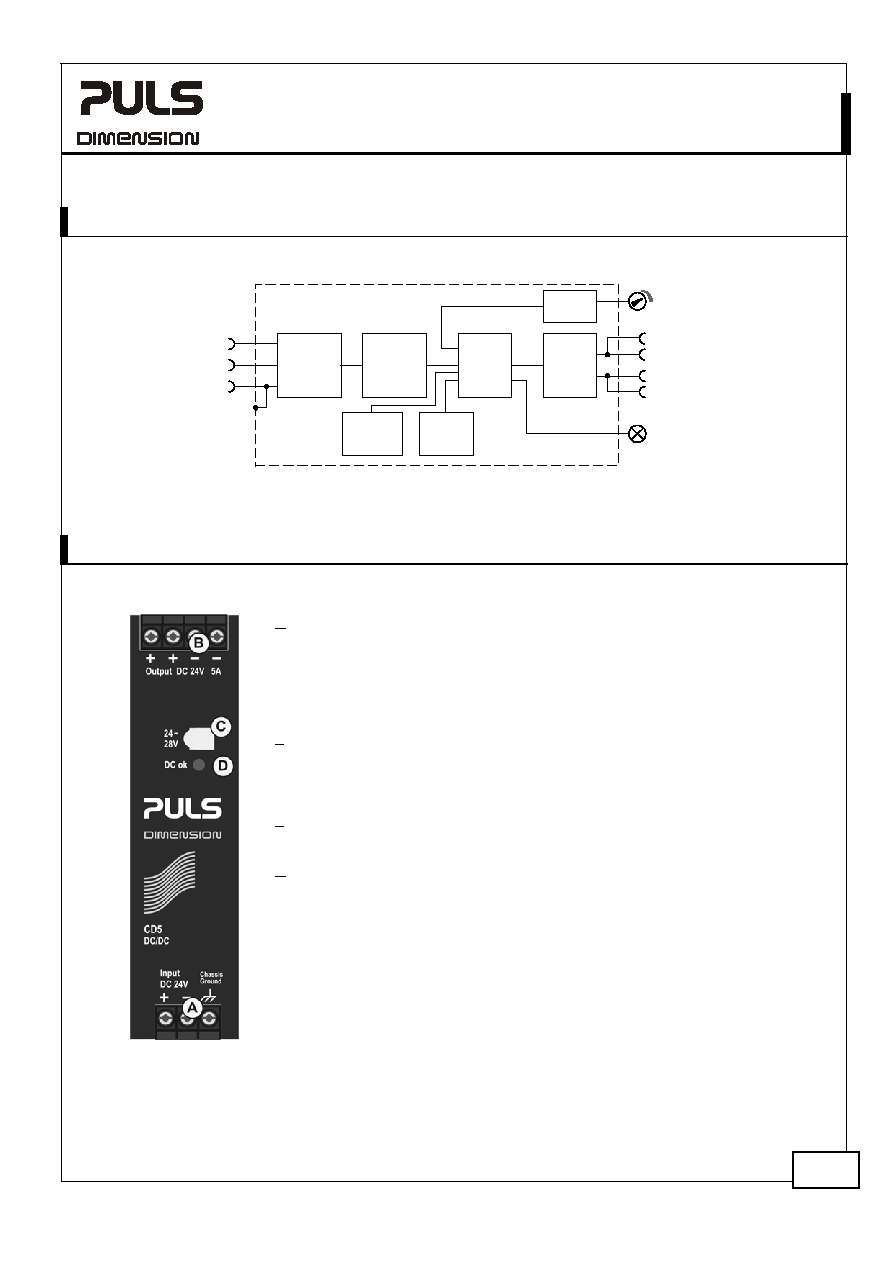

Fig. 8-1 Functional diagram

+

+

-

-

V

OUT

Input Fuse

&

Input Filter

Output

Voltage

Regulator

Power

Converter

Output

Filter

DC

ok

Output

Over-

Voltage

Protection

Reverse

Polarity

Protection

&

Inrush

Limiter

Chassis

Ground

+

-

Over-

Temperature

Protection

Fig. 9-1 Front side

A

Input terminals

Screw terminals

+ Positive input

- Negative (return) input

Chassis ground: can be used to bond the housing to PE

Ground this terminal to minimize high-frequency emissions.

B

Output terminals

Screw terminals, dual terminals per pole, both pins are equal

+ Positive output

- Negative (return) output

Screw terminals

C

Output voltage potentiometer

Open the flap to set the output voltage. Factory set: 24.1V

D

DC-OK LED (green)

On when the voltage on the output terminals is > 21V

Mar. 2016 / Rev. 1.5 DS-CD5.241-EN

All parameters are specified at 24V, 5A, 24Vdc input voltage, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
