CD5.121

CD-Series

DC/DC Converter 12V, 8A

ZM1.WALL Wall mounting bracket

This bracket is used to mount specific Dimension units onto a flat surface without utilizing a DIN-Rail. The two

aluminum brackets and the black plastic slider of the unit have to be removed, so that the two steel brackets can be

mounted.

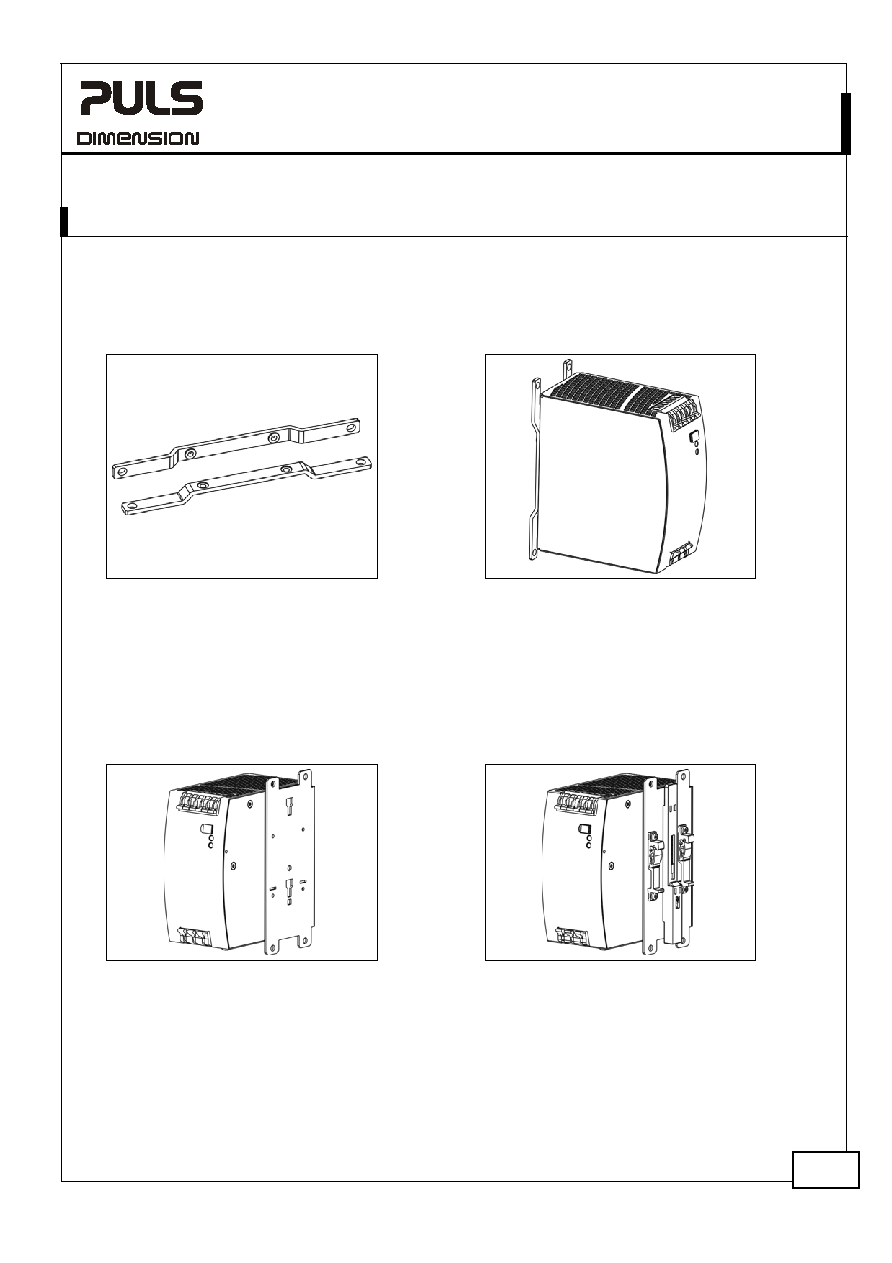

Fig. 20-1 ZM1.WALL Wall mounting bracket

Fig. 20-2 Assembled wall mounting bracket *)

*)

Picture of the DC/DC converter is for representation only

ZM11.SIDE Side mounting bracket

This bracket is used to mount Dimension units sideways with or without utilizing a DIN-Rail. The two aluminum

brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can be mounted.

For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on

the steel bracket.

Fig. 20-3

ZM11.SIDE Side mounting bracket *)

Fig. 20-4

Side mounting with DIN-rail brackets *)

*)

Picture of the DC/DC converter is for representation only
