Efficiency at Full Load

See Selection Guide

Minimum Load = 0%

Specifications valid for 10% minimum load only.

Isolation Voltage

(tested for 1 second)

1000VDC

(rated for 1 minute***)

500VAC / 60Hz

Isolation Voltage

H-Suffix

(tested for 1 second)

3000VDC

H-Suffix

(rated for 1 minute***)

1500VAC / 60Hz

Isolation Capacitance

R1S, R1S8, R1D, R1D10

15pF min. / 70pF max.

R1S12, R1D12

10pF min. / 75pF max.

Isolation Resistance

10 G

Ω min.

Short Circuit Protection

1 Second

P-Suffix

Continuous

Operating Temperature Range (free air convection)

-40°C to +100°C (see Graph)

Storage Temperature Range

-55°C to +125°C

Reflow Temperature

ROHS compliant

245°C (30 sec), Peak 255°C (5 sec) max.

Vapor Phase Process

(for more details see Application Notes)

230°C (90 sec) max.

Relative Humidity

95% RH

Humidity Susceptibility Test

1000 hrs / 90% humidity / +85°C ambient

Package weight

R1S

1.0g

R1S8

1.1g

R1S12, R1D, R1D10, R1D12

1.2g

Packing Quantity

R1S, R1S8

40 pcs per Tube

R1S12, R1D, R1D10, R1D12

33 pcs per tube

All Types

500 pcs per Reel

MTBF (+25°C)

using MIL-HDBK 217F

(+85°C)

using MIL-HDBK 217F

Certifications

CB Test Report

Report: US/14402A/UL

IEC 60950-1:2001 1st Ed.

UL General Safety

Report: E358085

UL 60950-1 2nd Ed.

CUL General Safety

C22.2 No. 60950-1-03

EN Medical Safety

Report: MDD1205098-2 + RM1205098-2

IEC/EN 60601-1 3rd Edition

Medical Report + ISO14971 Risk Assessment

EN General Safety

Report: SPCLVD1211033-3

EN60950-1: 2006 + A12:2011

Conducted / Radiated Emissions

EN55022

Level A

R1S_R1D

Series

ECONOLINE

DC/DC-Converter

100

0

40%

0%

100%

40

Efficiency / Load

60%

80%

20%

20

60

80

Total Output current (%)

3.305

0505

1205

Deviation / Load

-10.000

40%

0%

100%

60%

80%

20%

-5.000

Total Output current (%)

0505

0.000

5.000

10.000

15.000

20.000

25.000

3.305

1205

R1S**-xx05

Application Notes chapter "MTBF"

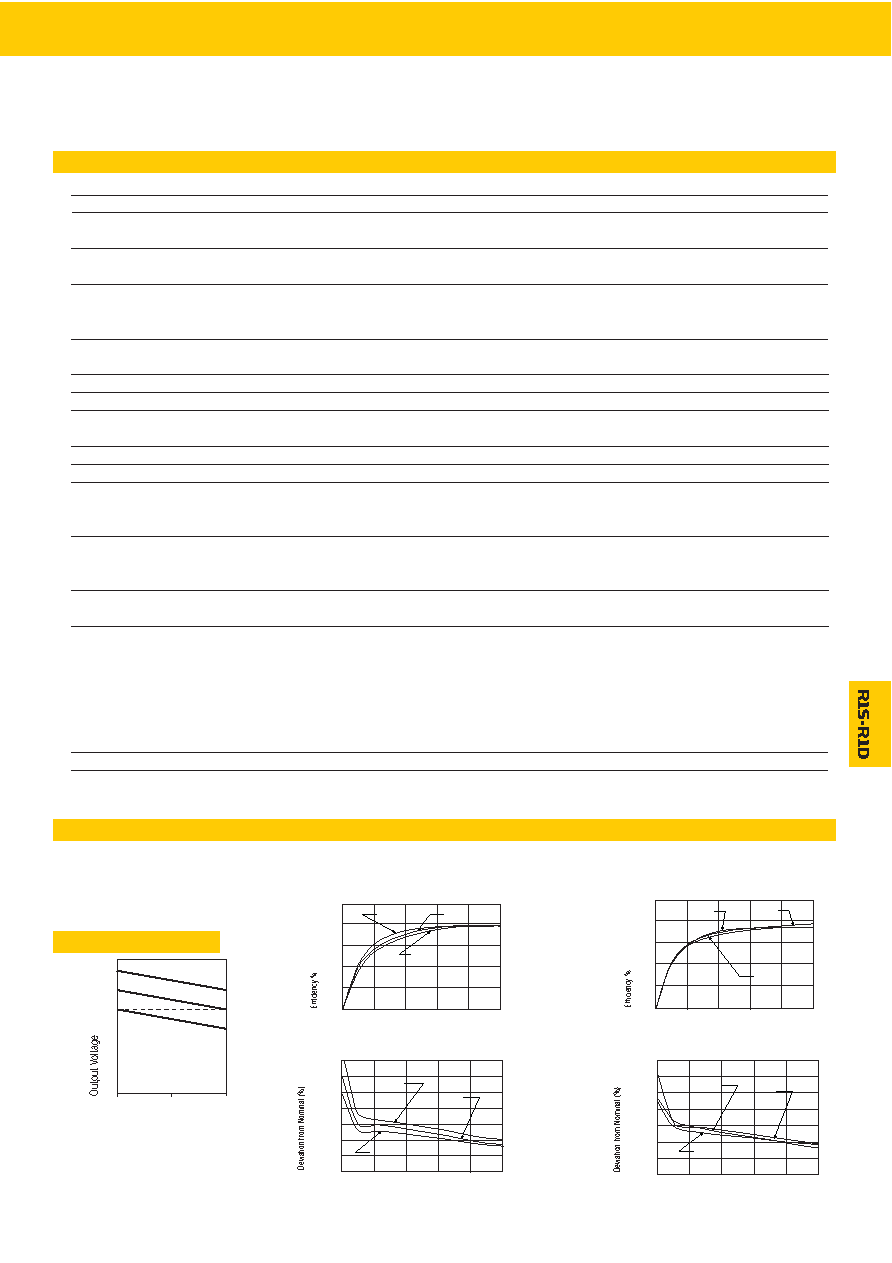

Typical Characteristics

+10%

+5%

V Nom.

+5%

– 1%

10%

50%

100%

Output Load Current (%)

– 5%

Typical Load Line

Tolerance Envelope

100

0

40%

0%

100%

40

Efficiency / Load

60%

80%

20%

20

60

80

Total Output current (%)

3.305

0505

1205

Deviation / Load

-10.000

40%

0%

100%

60%

80%

20%

-5.000

Total Output current (%)

0505

0.000

5.000

10.000

15.000

20.000

25.000

3.305

1205

R1D**-xx05

***Any data referred to in this datasheet are of indicative nature and based on our practical experience only. For further details, please refer to our Application Notes.

Notes

Note 1: Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter.

REV: 1/2016

E-25
