ADA4077-1/ADA4077-2/ADA4077-4

Rev. D | Page 7 of 25

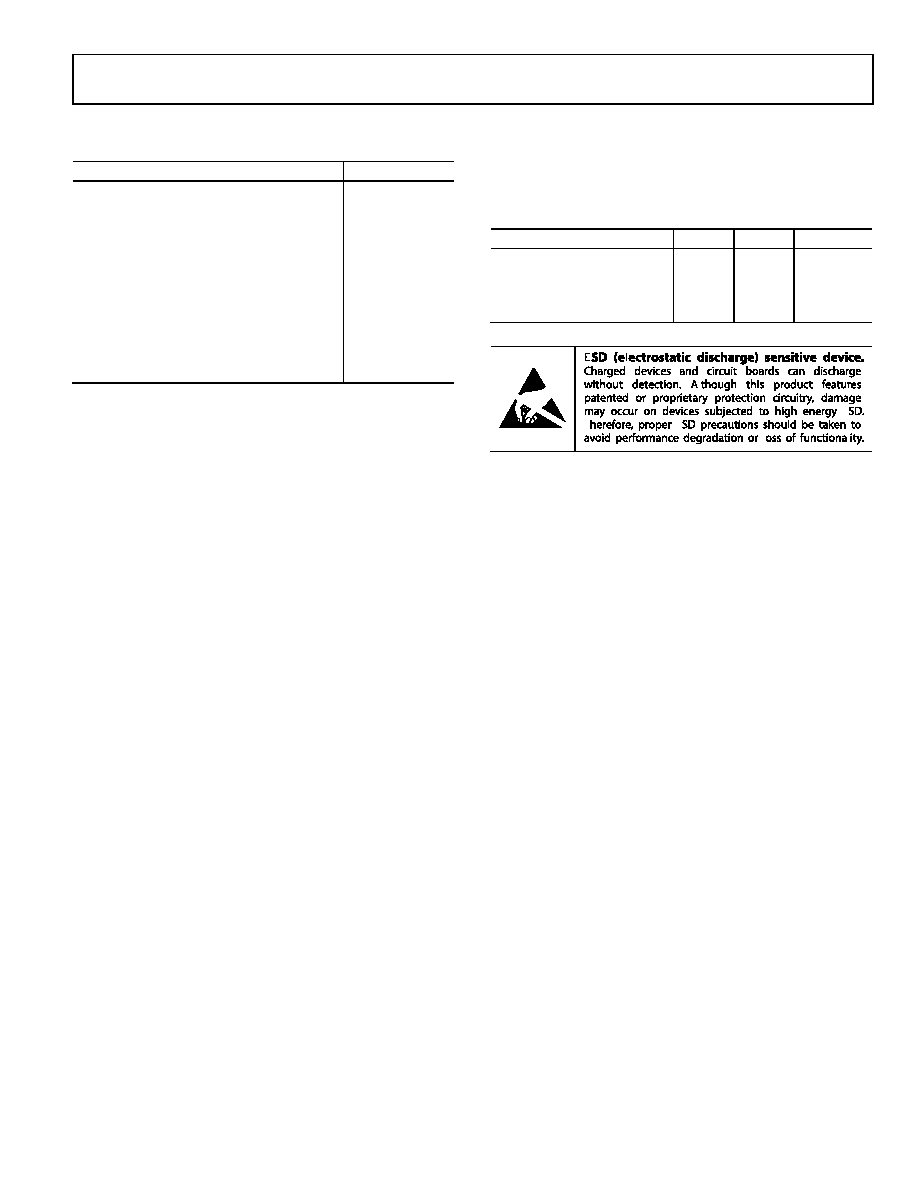

ABSOLUTE MAXIMUM RATINGS

Table 4.

Parameter

Rating

Supply Voltage

36 V

Input Voltage

±V

Input Current1

±10 mA

Differential Input Voltage

±V

Output Short-Circuit Duration to GND

Indefinite

Storage Temperature Range

−65°C to +150°C

Operating Temperature Range

−40°C to +125°C

Junction Temperature Range

−65°C to +150°C

Lead Temperature, Soldering (10 sec)

300°C

ESD Human Body Model (HBM)2

6 kV

Field Induced Charge Device Model (FICDM)3

1.25 kV

1 The input pins have clamp diodes to the power supply pins and to each

other. Limit the input current to 10 mA or less whenever input signals

exceed the power supply rail by 0.3 V.

2 ESDA/JEDEC JS-001-2011 applicable standard.

3 JESD22-C101 (ESD FICDM standard of JEDEC) applicable standard.

Stresses at or above those listed under Absolute Maximum

Ratings may cause permanent damage to the product. This is a

stress rating only; functional operation of the product at these

or any other conditions above those indicated in the operational

section of this specification is not implied. Operation beyond

the maximum operating conditions for extended periods may

affect product reliability.

THERMAL RESISTANCE

θJA is specified for the worst case conditions, that is, a device

soldered in a circuit board for surface-mount packages.

Table 5. Thermal Resistance

Package Type

Unit

8-Lead MSOP

190

°C/W

8-Lead SOIC

158

°C/W

14-Lead TSSOP

240

°C/W

14-Lead SOIC

115

°C/W
