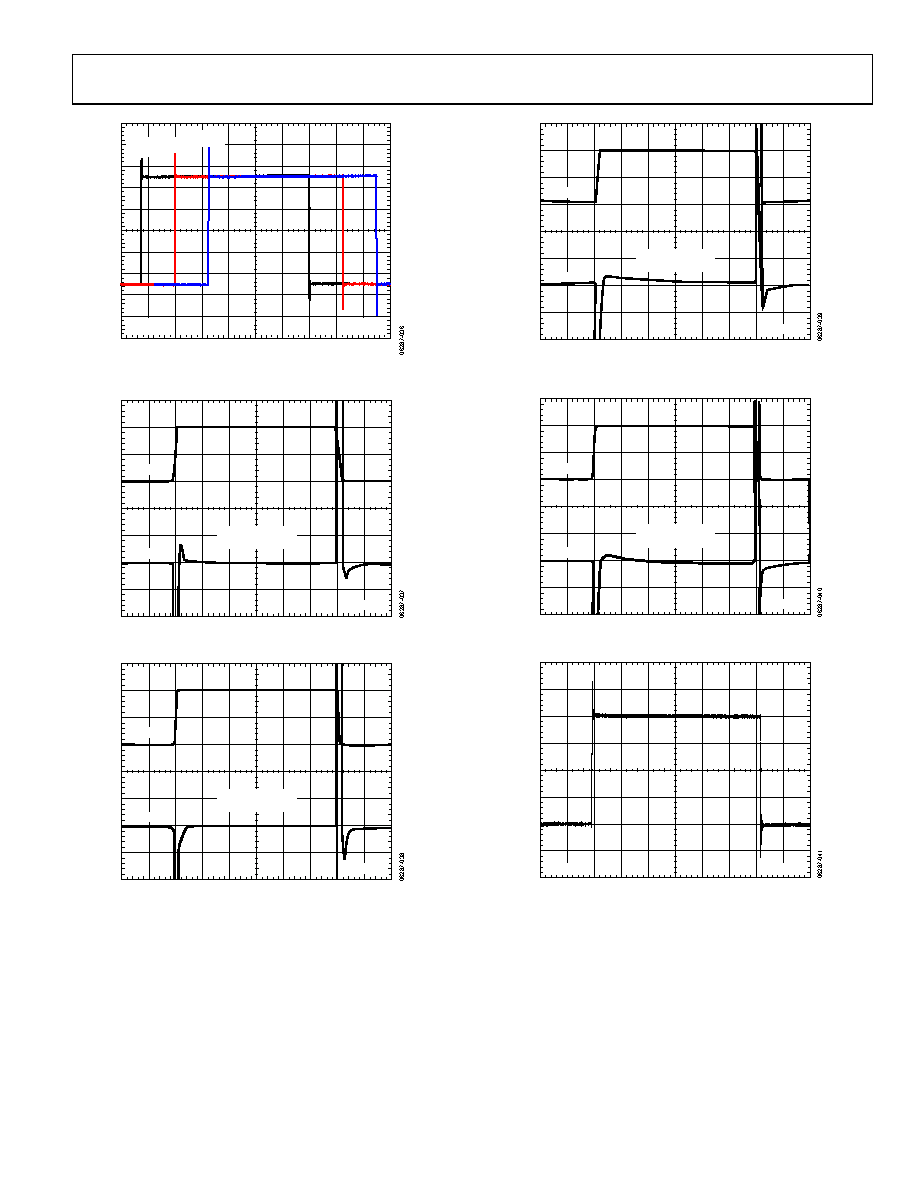

AD8251
Rev. B | Page 13 of 24
2µs/DIV
20mV/DIV
NO
LOAD
47pF
100pF
Figure 36. Small Signal Pulse Response for Various Capacitive Loads
5V/DIV
2µs/DIV
0.002%/DIV
585ns TO 0.01%
723ns TO 0.001%
Figure 37. Large Signal Pulse Response and Settling Time,
G = 1, RL = 10 kΩ
5V/DIV
2µs/DIV
0.002%/DIV
400ns TO 0.01%
600ns TO 0.001%
Figure 38. Large Signal Pulse Response and Settling Time,
G = 2, RL = 10 kΩ
5V/DIV
2µs/DIV
0.002%/DIV
376ns TO 0.01%
640ns TO 0.001%
Figure 39. Large Signal Pulse Response and Settling Time,
G = 4, RL = 10 kΩ
5V/DIV
2µs/DIV
0.002%/DIV
364ns TO 0.01%
522ns TO 0.001%
Figure 40. Large Signal Pulse Response and Settling Time,
G = 8, RL = 10 kΩ
25mV/DIV
2µs/DIV
Figure 41. Small Signal Response,
G = 1, RL = 2 kΩ, CL = 100 pF
