U74LVC32A
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
5 of 6
www.unisonic.com.tw
QW-R502-519.a

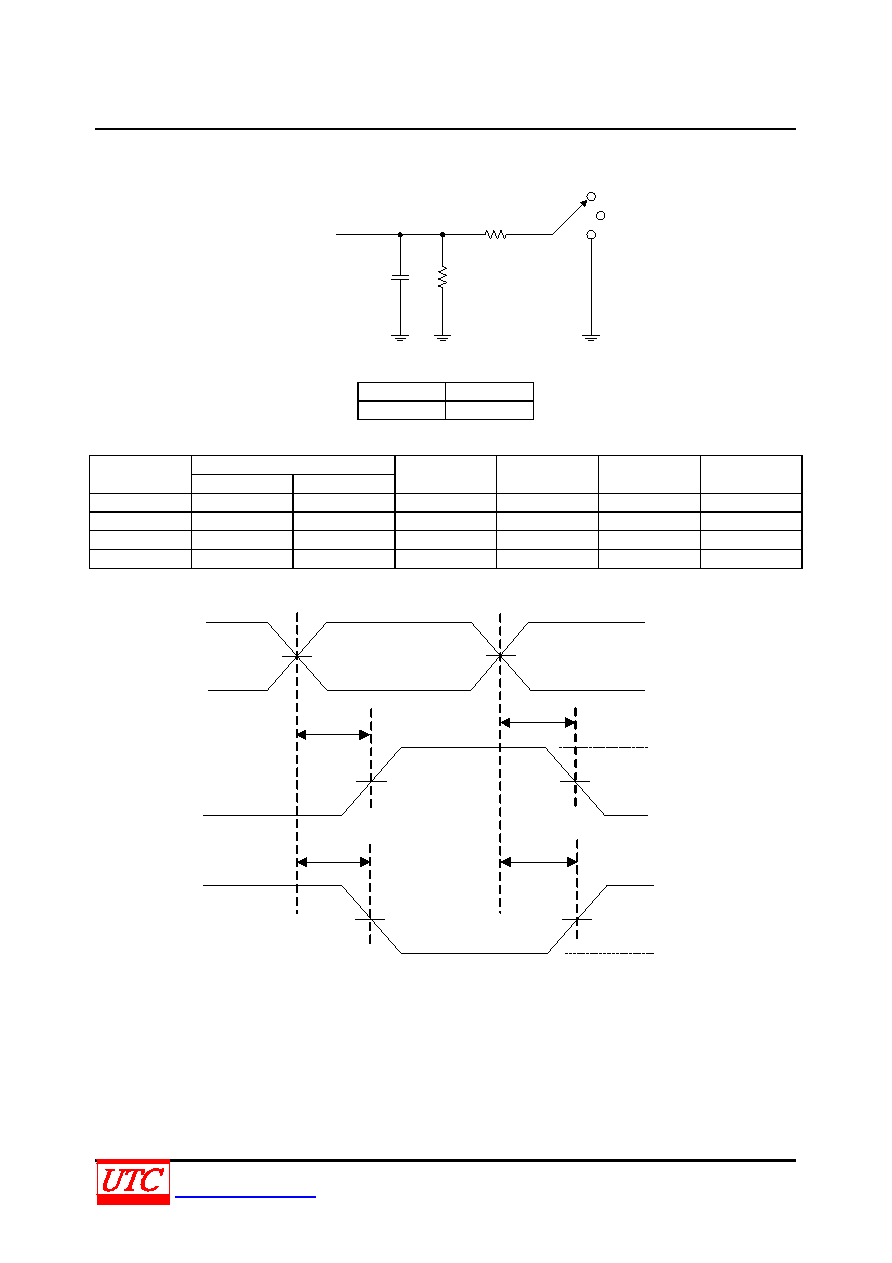

TEST CIRCUIT AND WAVEFORMS
VLOAD
Open
GND
From output
C L
R L
R L
TEST CIRCUIT
S1
TEST
S1
tPLH/tPHL
Open
Inputs
VCC
VIN
tr, tf
VM
VLOAD
CL
RL
1.8V±0.15V
VCC
≤2ns
VCC/2
2*VCC
30pF
1KΩ
2.5V±0.2V
VCC
≤2ns
VCC/2
2*VCC
30pF
500Ω
2.7V
VCC
≤2.5ns
1.5V
6V
50pF
500Ω
3.3V±0.3V
VCC
≤2.5ns
1.5V
6V
50pF
500Ω
VM
VM
VM
VM
VIN
0V
VOH
VOL
Propagation delay times
Inverting and noninverting outputs
Input
Output
tPLH
tPHL
tPLH
tPHL
VOH
VOL
Output
VM
VM
Notes: 1. CL includes probe and jig capacitance.
2. All input pulses are supplied by generators having the following characteristics: PRR ≤10MHz, ZO = 50Ω.
