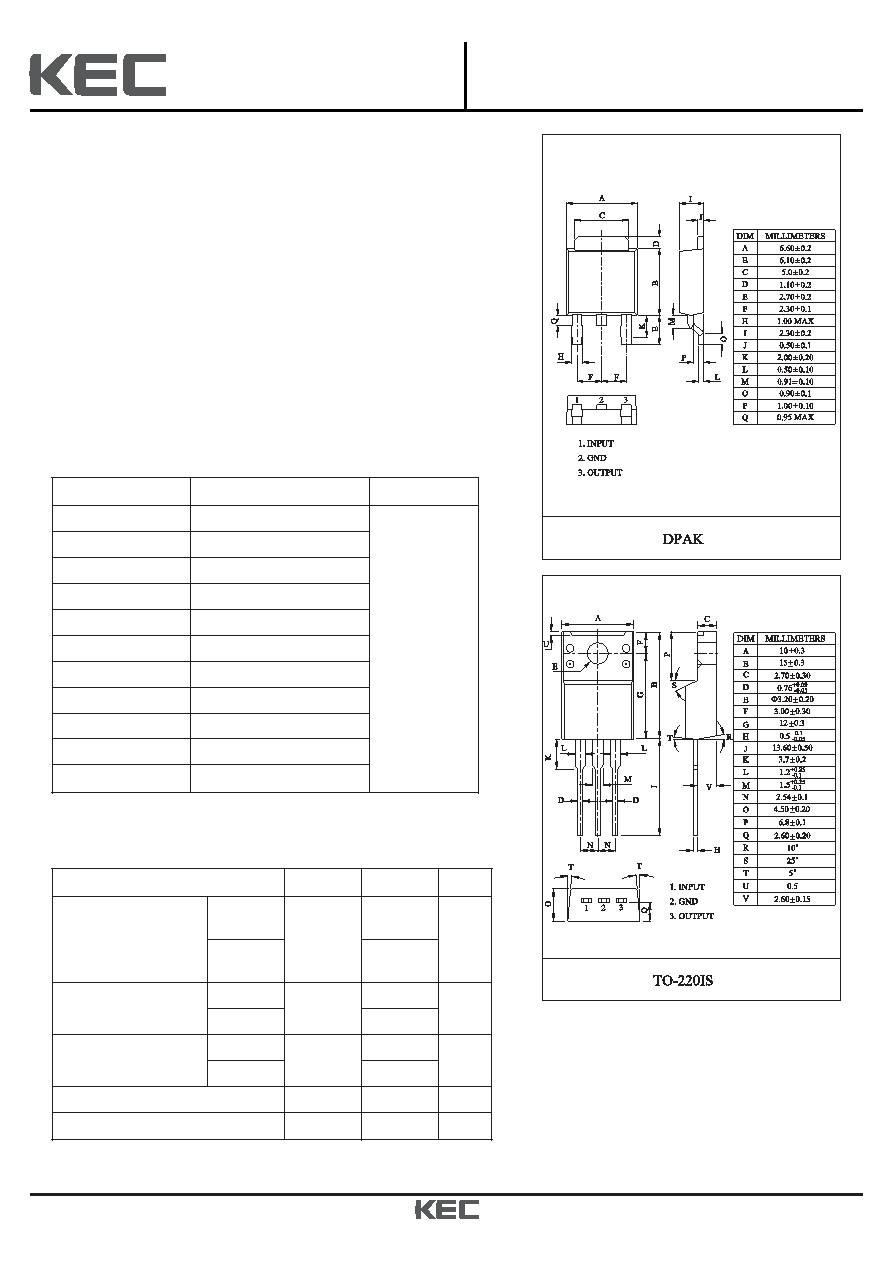

SEMICONDUCTOR

TECHNICAL DATA

KIA7805AF/API~KIA7824AF/API

BIPOLAR LINEAR INTEGRATED CIRCUIT

Revision No : 8

THREE TERMINAL POSITIVE VOLTAGE REGULATORS

5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V.

FEATURES

・Internal Thermal Overload Protection.

・Internal Short Circuit Current Limiting.

・Output Current in Excess of 1A.

・Satisfies IEC-65 Specification. (International Electronical Commission).

・Package is DPAK, TO-220IS

・Suitable for MLCC, Tantalum and Low ESR Electrolytic Capacitors.

・Suffix U : Qualified to AEC-Q100(Grade 0)

: Automotive and standard product are electrically and thermally the same,

except where specified. ex) KIA78**AF-RTF/PU.

MAXIMUM RATINGS (Ta=25

℃)

CHARACTERISTIC

SYMBOL

RATING

UNIT

Input Voltage

KIA7805

～

KIA7815

VIN

35

V

KIA7818

～

KIA7824

40

Power Dissipation-1

(No Heatsink)

AF

PD1

1.3

W

API

2.0

Power Dissipation-2

(Infinite Heatsink)

AF

PD2

12.0

W

API

20.8

Operating Junction Temperature

Tj

-40

～150

℃

Storage Temperature

Tstg

-55

～150

℃

ITEM

OUTPUT VOLTAGE (Typ.)

UNIT

KIA7805AF/API

5

AF : DPAK

API : TO-220IS

KIA7806AF/API

6

KIA7807AF/API

7

KIA7808AF/API

8

KIA7809AF/API

9

KIA7810AF/API

10

KIA7812AF/API

12

KIA7815AF/API

15

KIA7818AF/API

18

KIA7820AF/API

20

KIA7824AF/API

24

LINE-UP
