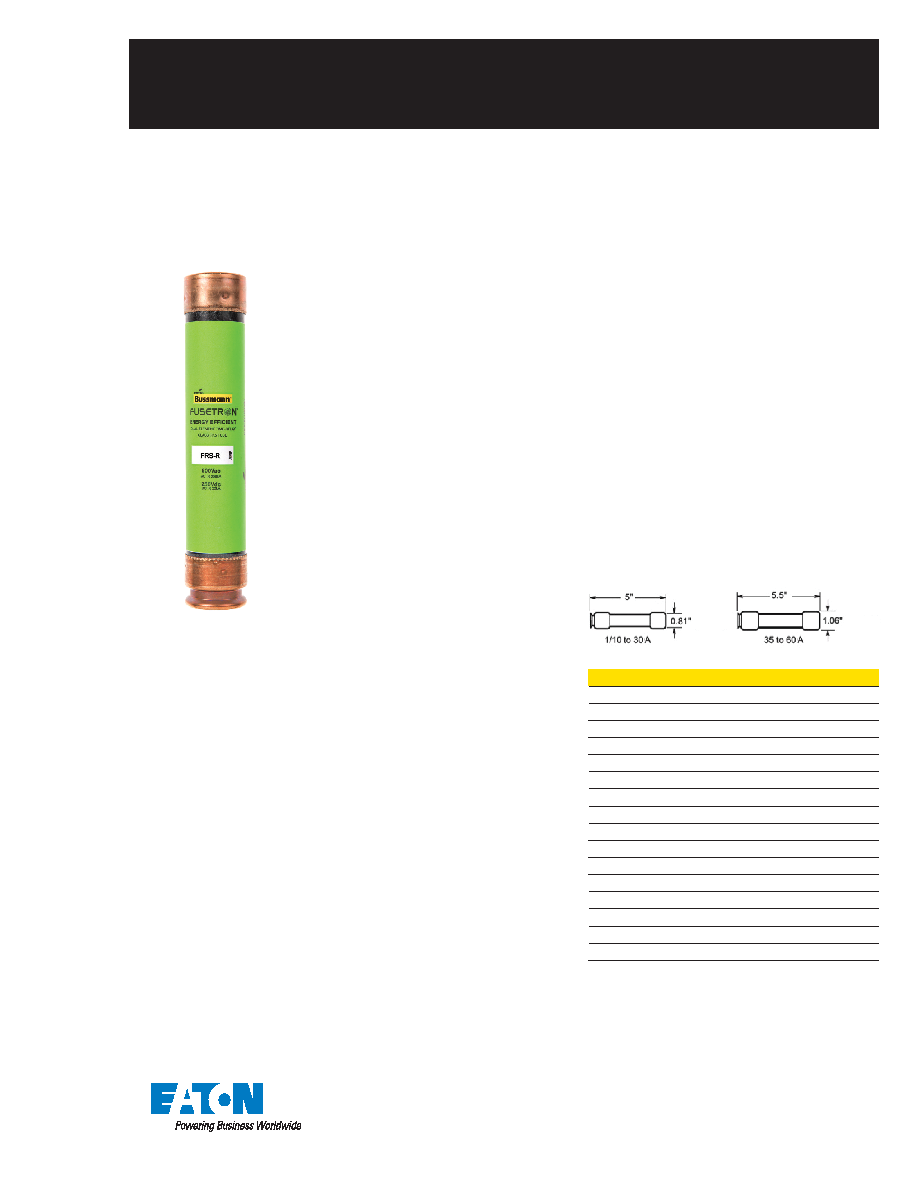

Fusetron™ 600 V Class RK5, FRS-R — 600 Vac/300 Vdc,

1/10-60 A, dual element, time-delay fuses

Catalog symbol:

•

FRS-R-(amp) (non-indicating)

•

FRS-R-(amp)ID (indicating)

Description:

•

Advanced protection, energy efficient

Class RK5 dual element, current-limiting,

time-delay fuses with optional open fuse

indication on select ratings

•

Time-delay – 10 second (minimum) at 500%

of rated current

Specifications:

Ratings

•

Volts

•

600 Vac, 300 Vdc (1/10-30 A)

•

600 Vac, 250 Vdc (35-60 A)

•

Amps — 1/10-60 A

•

Interrupting rating

•

200 kA Vac RMS Sym

•

20 kA Vdc

Agency information:

•

CE, UL® Listed, Std. 248-12, Class RK5, Guide

JDDZ, File E4273

•

CSA® Certified, C22.2 No. 248.12, Class

1422-02, File 53787

•

CE

Features:

•

Dual-element feature provides the best

time-delay performance, allowing closer

sizing and superior protection of motors and

transformers

•

Closer sizing allows for smaller fuses and

less costly switches

•

Class RK5 fuses with a 200 kA interrupting

rating for use in a broad range of

applications

•

Provides motor overload, ground fault, and

short-circuit protection

•

Helps protect motors against burnout from

overloads and single-phasing when sized

properly

•

Dual-element fuses can be applied in circuits

subject to temporary motor overloads

and surge currents to provide both high

performance short-circuit and overload

protection

•

Offers a 10-second time delay at 5 times the

rated current

•

The time-delay feature makes it possible

to use fuse amp ratings that are much

smaller than those of non-time delay

fuses. Considerable cost savings occur by

permitting the use of smaller size switches,

panels, and fuses themselves.

•

Provides current limitation to help protect

downstream components from high fault

currents.

•

Gives motor running back-up protection to

motors without extra costs.

Dimensions - in:

Catalog numbers (amps) — Non-indictaing fuses

FRS-R-1/10

FRS-R-1 8/10

FRS-R-8*

FRS-R-1/8

FRS-R-2

FRS-R-9*

FRS-R-15/100

FRS-R-2 1/4

FRS-R-10*

FRS-R-2/10

FRS-R-2 1/2

FRS-R-12*

FRS-R-1/4

FRS-R-2 8/10

FRS-R-15*

FRS-R-3/10

FRS-R-3

FRS-R-17 1/2*

FRS-R-4/10

FRS-R-3 2/10

FRS-R-20*

FRS-R-1/2

FRS-R-3 1/2

FRS-R-25*

FRS-R-6/10

FRS-R-4

FRS-R-30*

FRS-R-8/10

FRS-R-4 1/2

FRS-R-35*

FRS-R-1

FRS-R-5

FRS-R-40*

FRS-R-1 1/8

FRS-R-5 6/10

FRS-R-45*

FRS-R-1 1/4

FRS-R-6*

FRS-R-50*

FRS-R-1 4/10

FRS-R-6 1/4*

FRS-R-60*

FRS-R-1 1/2

FRS-R-7*

–

FRS-R-1 6/10

FRS-R-7 1/2*

–

* Open fuse indication available by inserting the sufix

“ID.” E.g., FRS-R-15ID.

Technical Data 1017

Effective May 2016

Supersedes August 2013

BUSSMANN

SERIES
