AD8555
Rev. 0 | Page 10 of 28
TEMPERATURE (°C)
175
–75
–25
25
75
125
1
100
10
VS = 5V

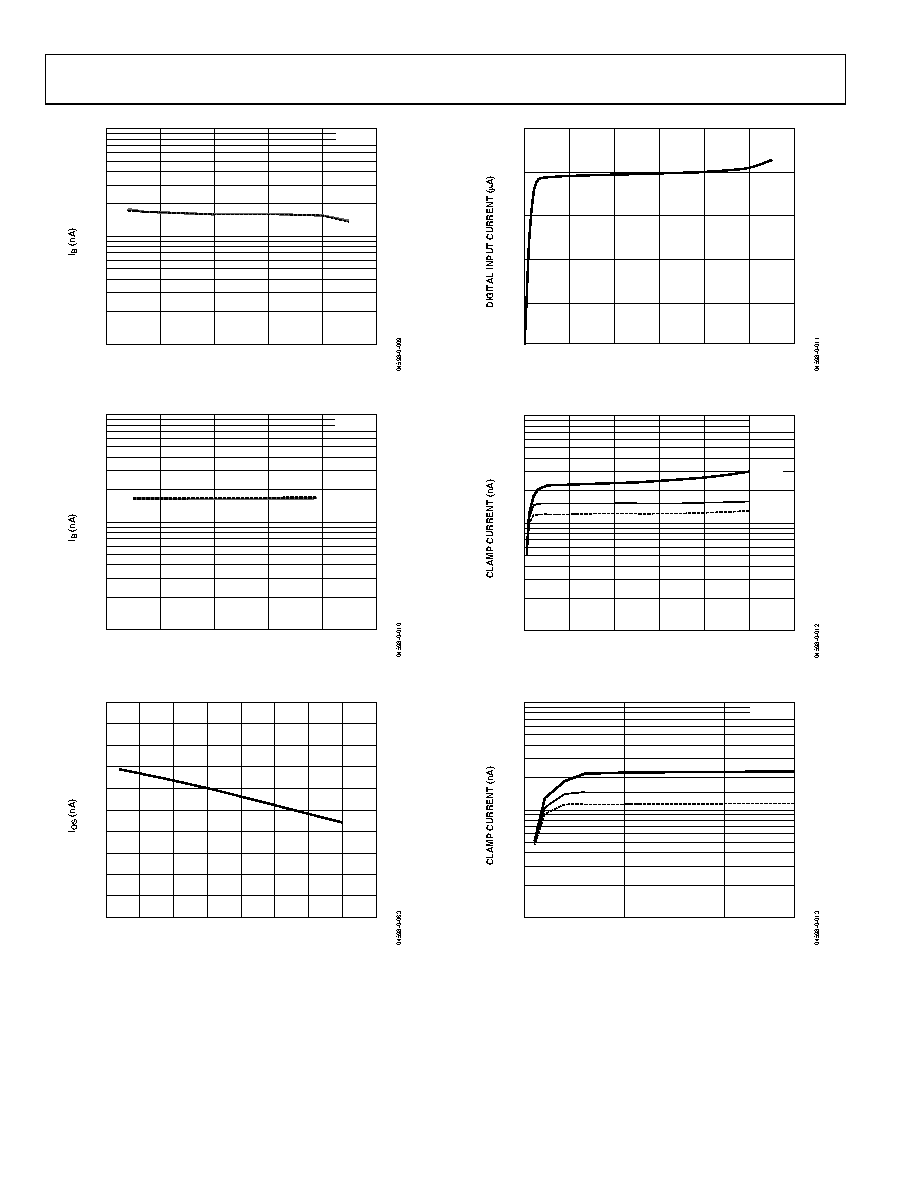

Figure 10. Input Bias Current at VPOS, VNEG vs. Temperature
VCM (V)
5
0
1234
1
100
10
VS = 5V
Figure 11. Input Bias Current at VPOS, VNEG vs. Common-Mode Voltage
TEMPERATURE (°C)
150
–50
–25
0
25
50
75
100
125
0.5
0.4
0.2
0.1
0
0.3
–0.1
–0.2
–0.3
–0.4
–0.5
Figure 12. Input Offset Current vs. Temperature
DIGITAL INPUT VOLTAGE(V)
6
0
123
45
0
2.5
2.0
1.5
1.0
0.5
VS = 5.5V
Figure 13. Digital Input Current vs. Digital Input Voltage (Pin 3)
VCLAMP VOLTAGE (V)
6
02
3
14
5
10
1000
100
–40°C
+25°C
+125°C
VS = 5V
Figure 14. VCLAMP Current Over Temperature at VS = 5 V vs. VCLAMP Voltage
VCLAMP VOLTAGE (V)
2.7
02
1
10
1000
100
–40
+25
+125
VS = 2.7V
Figure 15. VCLAMP Current Over Temperature at VS = 2.7 vs. VCLAMP Voltage
