LD80011CD datasheet(1/3 Pages) LIGHTKEY

Nome de Peças	LD80011CD

Descrição Electrónicos	8 inch Large Assembly 7 Segment LED Display

PDF	3 Pages

Scroll/Zoom	100%

Fabricante Electrônico	LIGHTKEY [LightKey Optoelectronics Ltd.]

Página de início	http://www.display-leds.com

Logo

1 / 3 page

LightKey

SPEC NO: DS10121499

REV: A.4

CHECKED: Emily Zhou

APPROVED: M.H. Lin

PAGE: 1/3

HTTP://WWW.DISPLAY-LEDS.COM

TEL: 0086-574-86322282

DATE: Jul/20/2011

Datasheet of 8 inch Large Assembly 7 Segment LED Display

LD80011A/B Series – 8 inch Large Assembly 7 Segment LED Display

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Available options

Alternative emitting luminosity:

Standard or high brightness version

Alternative emitted color

Alternative segment color

Alternative font

Both CA and CC versions are available

Cropped terminal pins

Features

200 mm (18 inch) digit high

Excellent digit appearance

Wide viewing angle

Range of emitted colors

I.C. compatible

Low power consumption

White segment

RoHS compliant

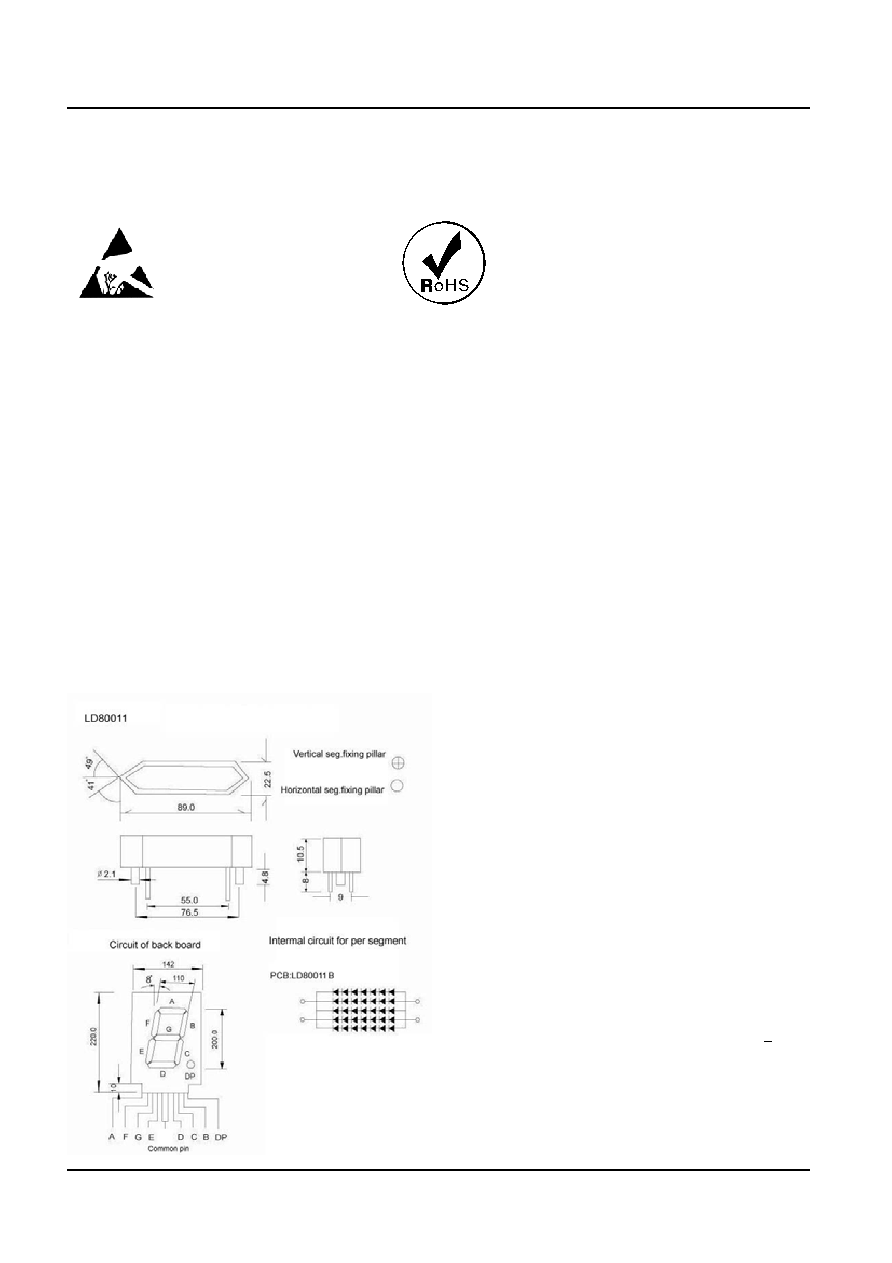

Package Dimensions & Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters(inches), Tolerance is +

0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed

0.25mm.
