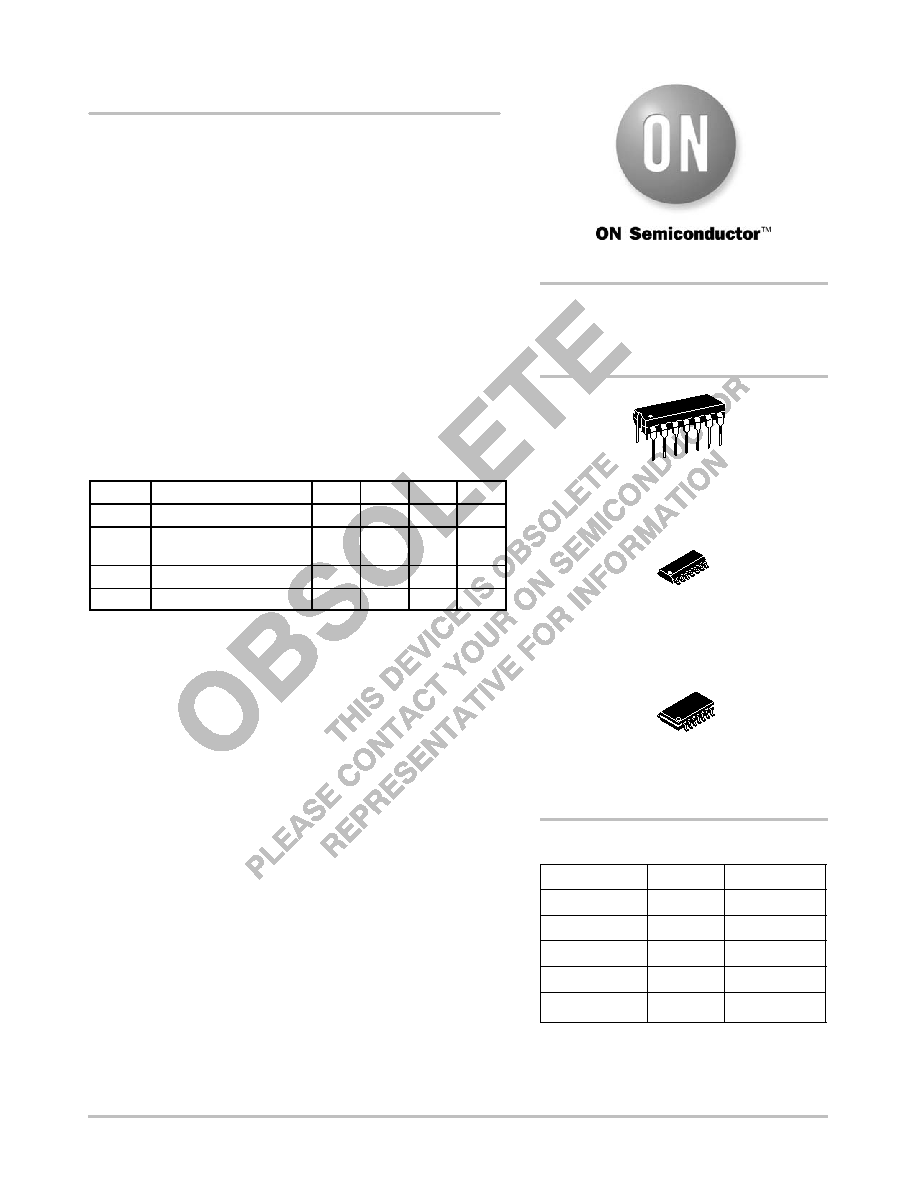

July, 2006 − Rev. 2

1

Publication Order Number:

SN74LS393/D

SN74LS393

Dual 4−Stage Binary

Counter

The SN74LS393 contains a pair of high-speed 4-stage ripple

counters.

Each half of the LS393 operates as a Modulo-16 binary divider, with

the last three stages triggered in a ripple fashion. In the LS393, the

flip-flops are triggered by a HIGH-to-LOW transition of their CP

inputs. Each half of each circuit type has a Master Reset input which

responds to a HIGH signal by forcing all four outputs to the LOW

state.

• Dual Versions

• Individual Asynchronous Clear for Each Counter

• Typical Max Count Frequency of 50 MHz

• Input Clamp Diodes Minimize High Speed Termination Effects

GUARANTEED OPERATING RANGES

Symbol

Parameter

Min

Typ

Max

Unit

VCC

Supply Voltage

4.75

5.0

5.25

V

TA

Operating Ambient

Temperature Range

0

25

70

°C

IOH

Output Current − High

−0.4

mA

IOL

Output Current − Low

8.0

mA

LOW

POWER

SCHOTTKY

SOIC

D SUFFIX

CASE 751A

PLASTIC

N SUFFIX

CASE 646

14

1

14

1

SOEIAJ

M SUFFIX

CASE 965

14

1

http://onsemi.com

Device

Package

Shipping

ORDERING INFORMATION

SN74LS393N

14 Pin DIP

2000 Units/Box

SN74LS393D

SOIC−14

55 Units/Rail

SN74LS393DR2

SOIC−14

2500/Tape & Reel

SN74LS393M

SOEIAJ−14

See Note 1

SN74LS393MEL

SOEIAJ−14

1. For ordering information on the EIAJ version of

the SOIC package, please contact your local

ON Semiconductor representative.

See Note 1
