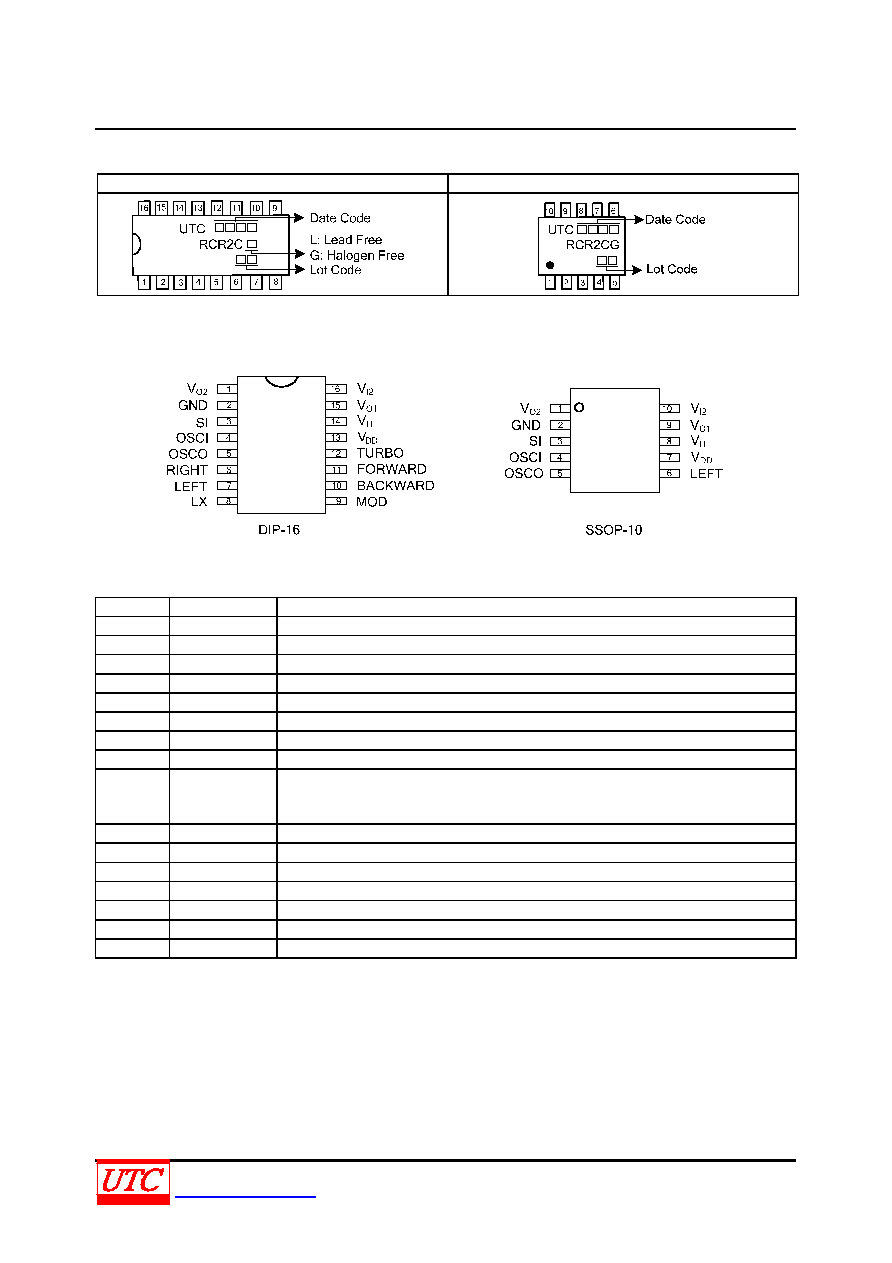

RCR2C
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 8
www.unisonic.com.tw
QW-R502-026.C
MARKING
DIP-16
SSOP-10
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
FUNCTION
1
VO2
Inverter 2 output pin for power amplify
2
GND
Negative power supply
3
SI
Input pin of the encoding signal
4
OSCI
Oscillator input pin
5
OSCO
Oscillator output pin
6
RIGHT
Rightward output pin
7
LEFT
Leftward output pin
8
LX
DC-DC converter output pin
9
MOD
Output-signal-fomat selection input pin. High=Open. When Mod is open, the output
Signal is same format as UTC RCR2C. When it is pulled low, there is the other
Format.
10
BACKWARD
Backward output pin
11
FORWARD
Forward output pin
12
TURBO
Turbo output pin
13
VDD
Positive power supply
14
VI1
Inverter 1 input pin for power amplify
15
VO1
Inverter 1 output pin for power amplify
16
VI2
Inverter 2 input pin for power amplify
