UTDA8024
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
12 of 15
www.unisonic.com.tw
QW-R113-014.a

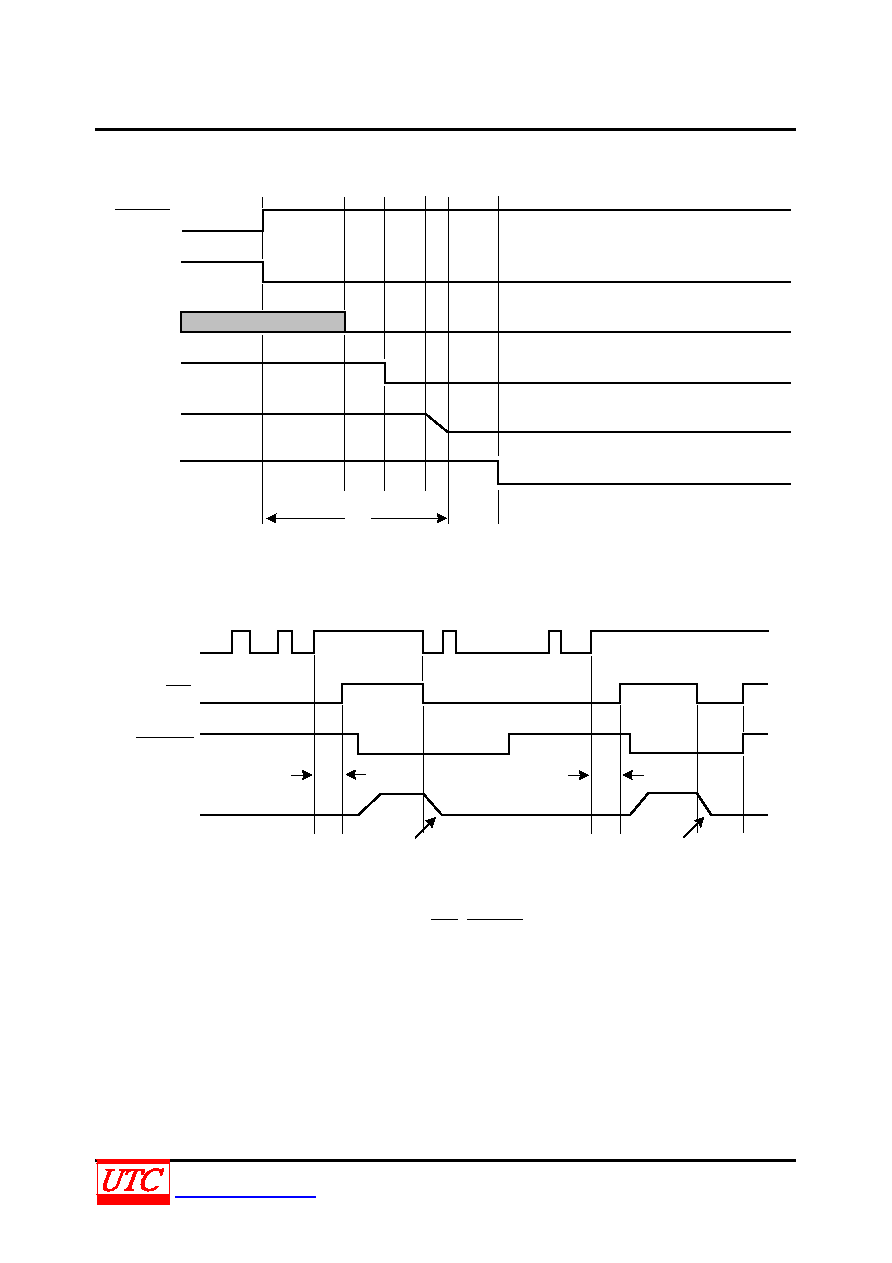

TIMING WAVEFORMS (Cont.)
CMDVCC
RST
CLK
I/O
VCC
VUP
t10
t12
t13
t14
tde
Fig.3 Deactivation Sequence
t15
PRES
OFF
CMDVCC
VCC
debounce
deactivation caused by
cards withdrawal
deactivation caused by
short-circuit
debounce
Fig. 4 Behaviour of OFF, CMDVCC, PRES and VCC.
