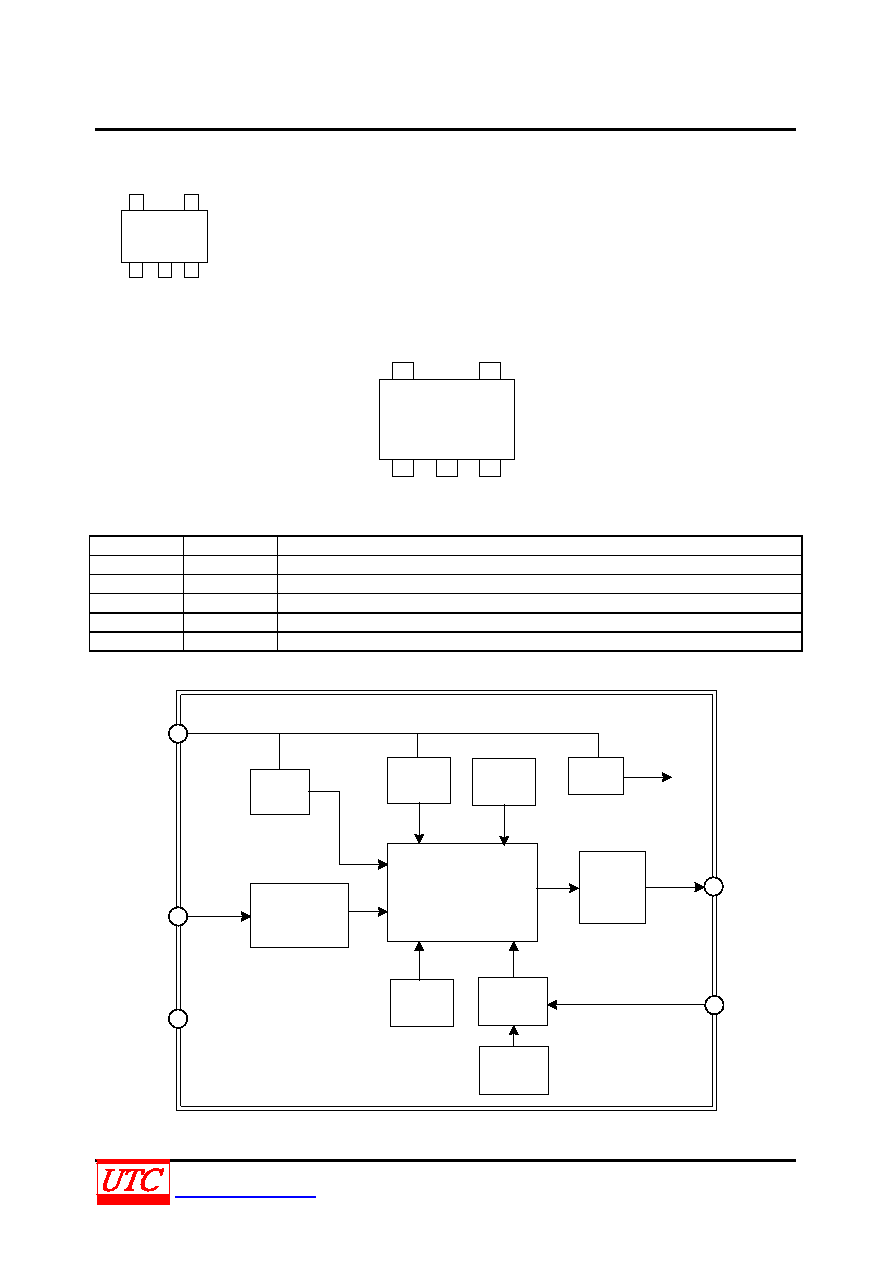

 2 / 6 page
background image
UPSL102
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 6
www.unisonic.com.tw
QW-R125-028.c
MARKING
54
3
L102G
2
1
PIN CONFIGURATION
3
2
1
4
5
BASE
CS
GND
VDD
INV
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
GND
Ground
2
CS
Current sense input.
3
BASE
Base driver with current limit for power BJT.
4
INV
The voltage feedback from auxiliary winding.
5
VDD
Power supply.
BLOCK DIAGRAM
VDD
INV
GND
CC
Controller
UVLO
Logic
Control
Base
Drive
LEB
BASE
CS
OCP
3
2
1
4
5
POR
OVP
5V
Internal
Supply
OSC
OTP
