8 / 12 page

Single/Dual/Quad, 10MHz

Single-Supply Op Amps

_______________________________________________________________________________________

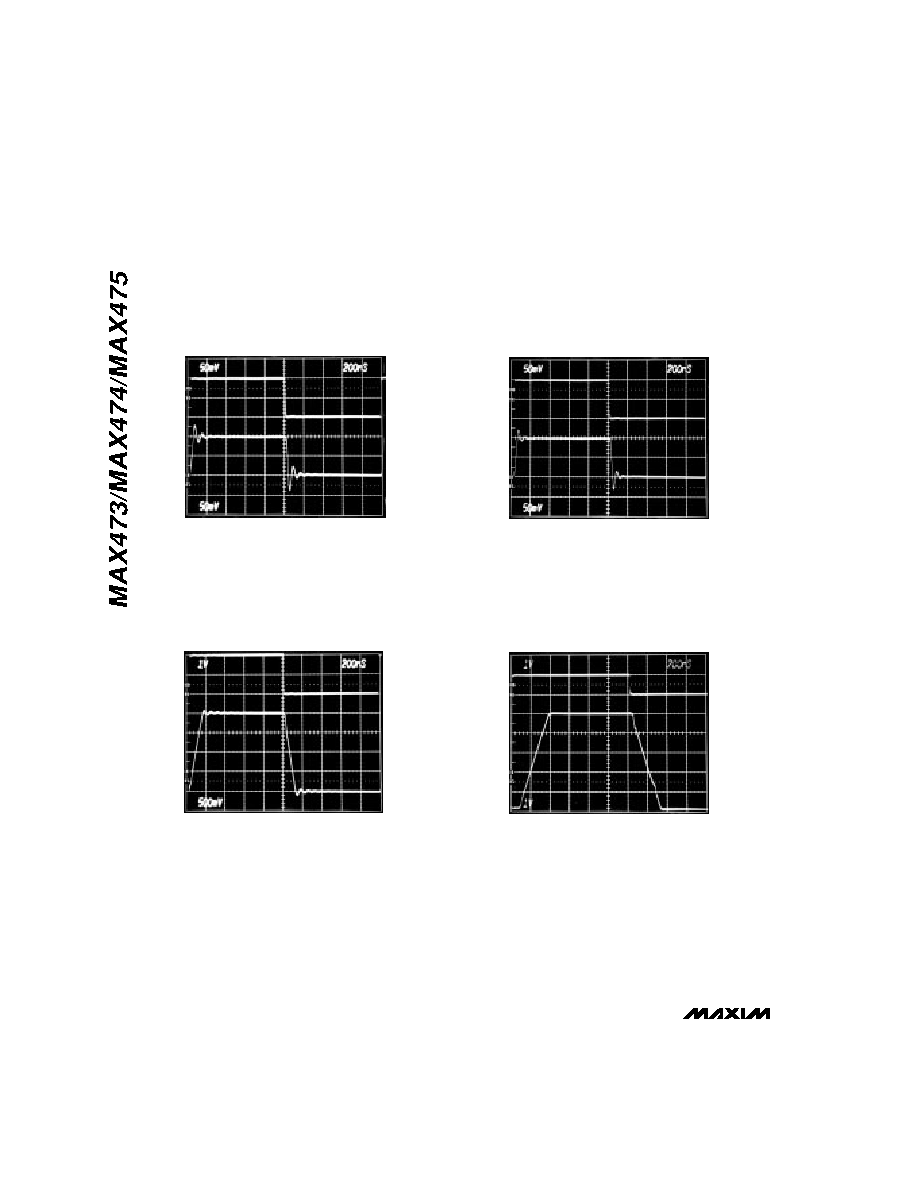

____________________________Typical Operating Characteristics (continued)

(VCC = 5V, VEE = 0V, TA = +25°C, unless otherwise noted.)

VCC = 3V, AV = +1, RL = 10kΩ, CL = 100pF

A : VIN, 50mV/div

B : VOUT, 50mV/div

SMALL-SIGNAL TRANSIENT RESPONSE

(VCC = 3V)

0.5V

200ns/div

VCC = 5V, AV = +1, RL = 10kΩ, CL = 220pF

A : VIN, 50mV/div

B : VOUT, 50mV/div

SMALL-SIGNAL TRANSIENT RESPONSE

(VCC = 5V)

0.5V

200ns/div

VCC = 5V, AV = +1, RL = 10kΩ, CL = 220pF

A : VIN, 1V/div

B : VOUT, 500mV/div

LARGE-SIGNAL TRANSIENT RESPONSE

0.5V

200ns/div

VCC = 5V, VIN- = 2.0V, RL = 10kΩ, CL = 33pF

A : VIN+, 1V/div

B : VOUT, 1V/div

OVERDRIVING THE OUTPUT

1.5V

200ns/div
