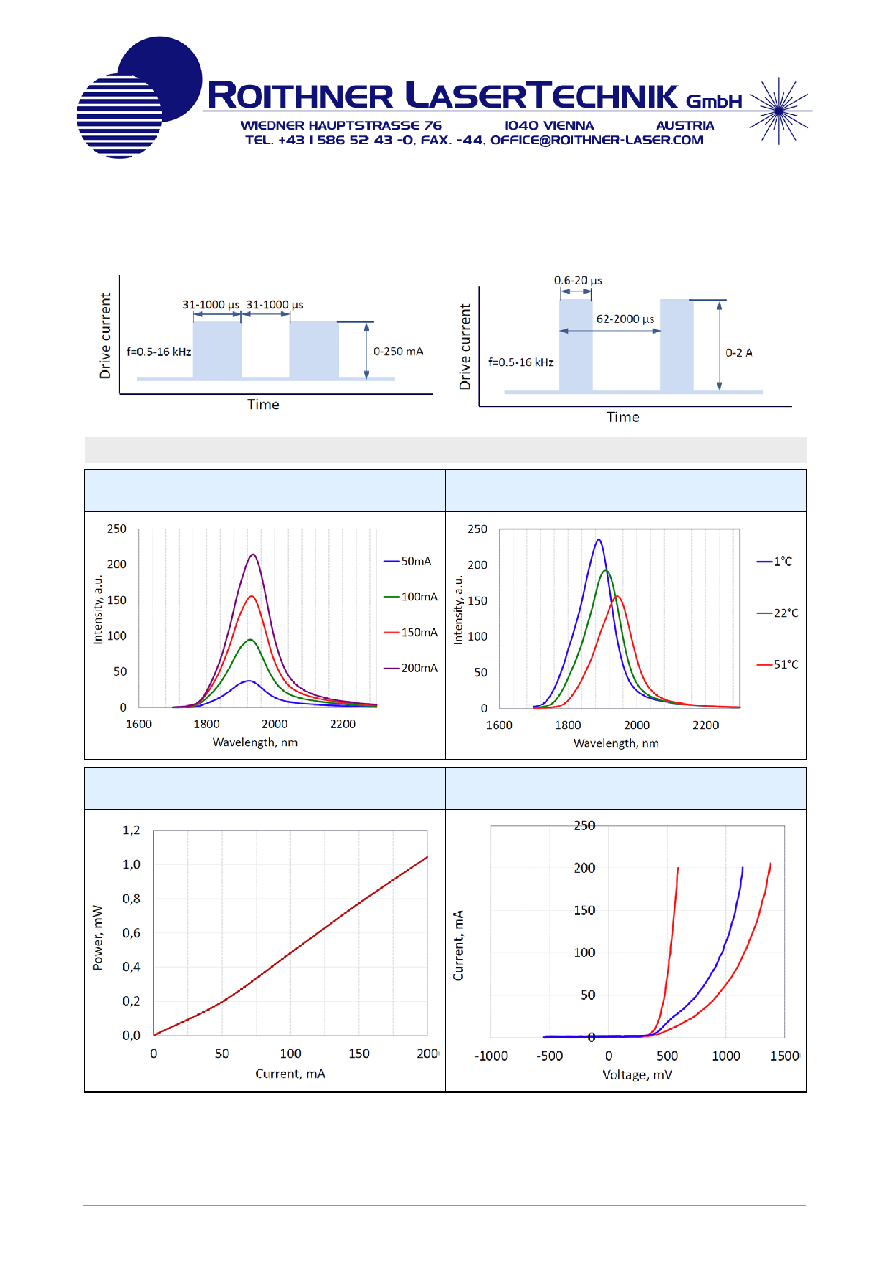

background image
24.09.2012
LED19
2 of 3
We recommend to use Quasi Continuous Wave (qCW) mode with duty cycle 50% or 25% to obtain
maximum average optical power and short Pulse mode to obtain maximum peak power.
Hard CW (continues wave) mode is NOT recommended.
•
Quasi CW Mode
•
Pulsed Mode
Typical Performance Curves
Spectra – Operation Currents
(qCW, T=300 K)
Spectra – Temperature
(qCW, I=150 mA)
Output Power – Forward Current
(qCW, T=300 K)
Forward Current – Forward Voltage
(qCW, T=300 K)
