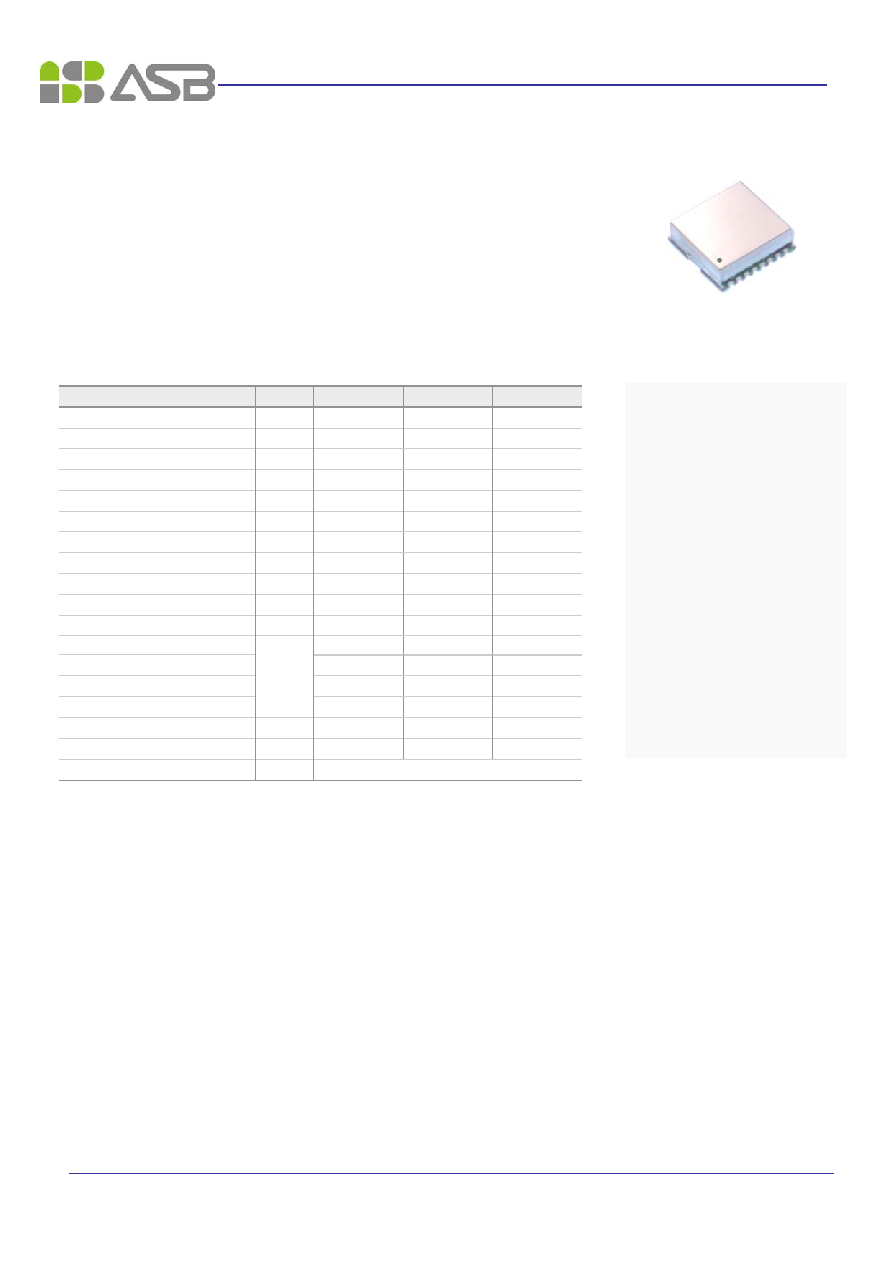

1 / 2 page

1/2

www.asb.co.kr

June 2010

plerow

TM APL0726-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

726.5

Output Power

dBm

+0

+3

+5

Supply Voltage

V

4.75

5.00

Current Consumption

mA

38

80

Channel Step Size

kHz

2

nd Harmonics

dBc

-20

Spurious Level

dBc

-75

Lock Time

Ms

Reference Frequency

MHz

10

Reference Input Level

dBm

-5

0

5

Phase Noise (C / N)

@100kHz

-72

@ 1kHz

-85

@ 10kHz

-105

@ 100 kHz

dBc/Hz

-120

Output Impedance



50

Operating Temp. Range

C

-30

+25

+70

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 450 MHz, 50 ohm system.

Features

Specifications

· +3 dBm Output Level at 726.5 MHz

· 2

nd Harmonic: < -20 dBc

· Spurious Level: < -75 dBc

· Lock Time : < 10 ms

· 80 mA Current Consumption

· Strip-line Resonator

Description

The plerow

TM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7223

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
