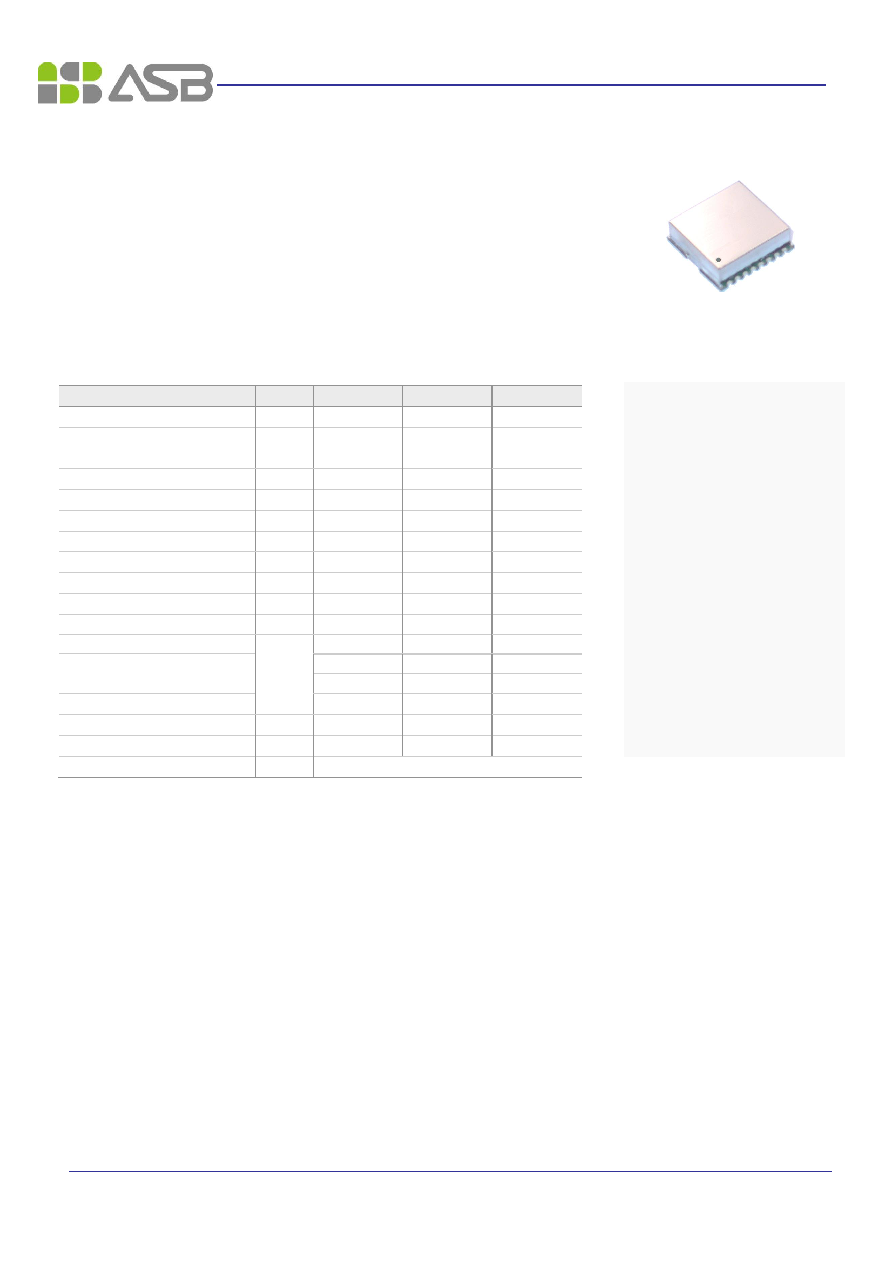

plerowTM APL0146-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

146

Output Power

dBm

3

5

7

Supply Voltage

V

4.8

5.0

5.2

Current Consumption

mA

25

35

Channel Step Size

kHz

2nd Harmonics

dBc

-25

-15

Spurious Level

dBc

-75

-65

Lock Time

ms

Reference Frequency

MHz

10

Reference Input Level

dBm

3

5

7

Phase Noise (C / N)

0

2

5

@ 100MHz

dBc/Hz

@ 1 kHz

-82

-75

@ 10 kHz

-107

-105

@ 100 kHz

-120

-115

Output Impedance



50

Operating Temp. Range

C

-30

25

80

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 1890.25 MHz, 50 ohm system.

Features

Specifications

· 5 dBm Output Level at 146MHz

· 2nd Harmonic : < -15 dBc

· Spurious Level : < -65 dBc

· Current Consumption <35 mA

Description

The plerowTM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB

’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7223

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejon 302-716, Korea
