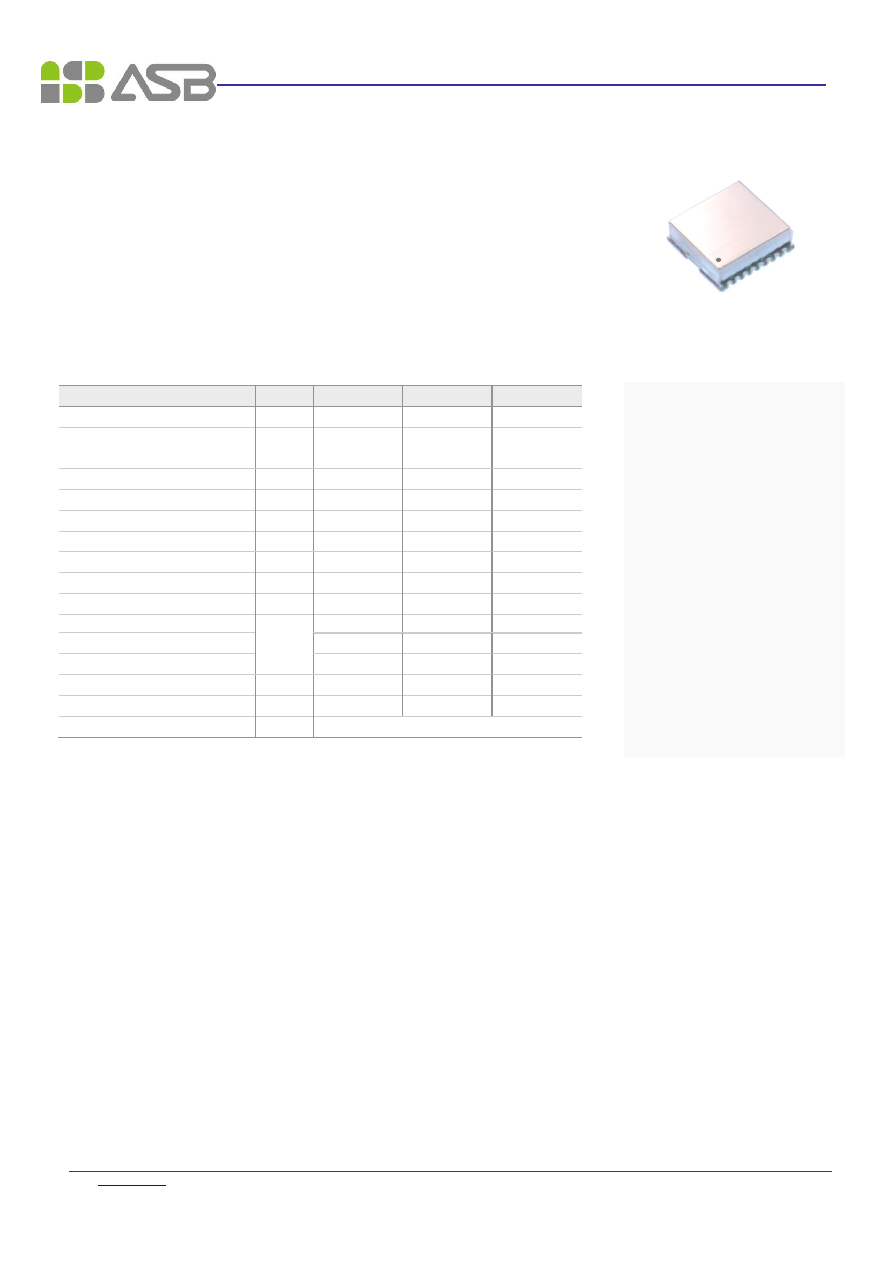

plerowTM APL0100-R

PLL Synthesizer Module

Parameter

Unit

Min.

Typical

Max.

Frequency Range

MHz

100

Output Power

dBm

4.0

5.0

6.0

Supply Voltage

V

4.7

5.0

5.3

Current Consumption

mA

17

30

Channel Step Size

kHz

20

2nd Harmonics

dBc

-24

-20

Spurious Level

dBc

-78

-70

Reference Frequency

MHz

10

Reference Input Level

dBm

0

2

5

Phase Noise (C / N)

@ 1 kHz

dBc/Hz

@ 10 kHz

-113

-110

-107

@ 100 kHz

-124

-121

-118

Output Impedance



50

Operating Temp. Range

C

-30

25

80

Package Type & Size

mm

SMT, 19.0W

19.0L5.8H

1) Measurement conditions are as follows: T = 25

C, V

CC = 5 V, Freq. = 100 MHz, 50 ohm system.

Features

Specifications

· 5 dBm Output Level at 100 MHz

· 2nd Harmonic: < -20 dBc

· Spurious Level: < -70 dBc

· Current Consumption: < 30 mA

Description

The plerowTM PLL synthesizer module was

designed for use in wireless and wireline

systems in a wide range of frequency from

50 MHz to 6 GHz. ASB

’s PLL provides ex-

ceptionally low spurious and phase noise

performance with fast locking time and low

current consumption. All products are avail-

able in a surface-mount type package.

More Information

Website: www.asb.co.kr

E-mail: sales@asb.co.kr

Tel: (82) 42-528-7220

Fax: (82) 42-528-7222

ASB Inc., 4th Fl. Venture Town

Bldg., 367-17 Goijeong-Dong,

Seo-Gu, Daejeon 302-716, Ko-

rea
