SMD Type
www.kexin.com.cn
4
Transistors
PNP Transistors
2SA1514K
■
Typical Characterisitics
-0.1
-1
-10
-100
-1000
-0.1
-1
-10
-100
-1000
Ta=25ºC
Single non repetitive pulse
2SA1514K
DC
(Mounted on a
reference land)
10ms
1ms
100ms
1
10
100
-0.1
-1
-10
-100
Ta=25ºC
f=1MHz
IE=0A
Cob
Cib

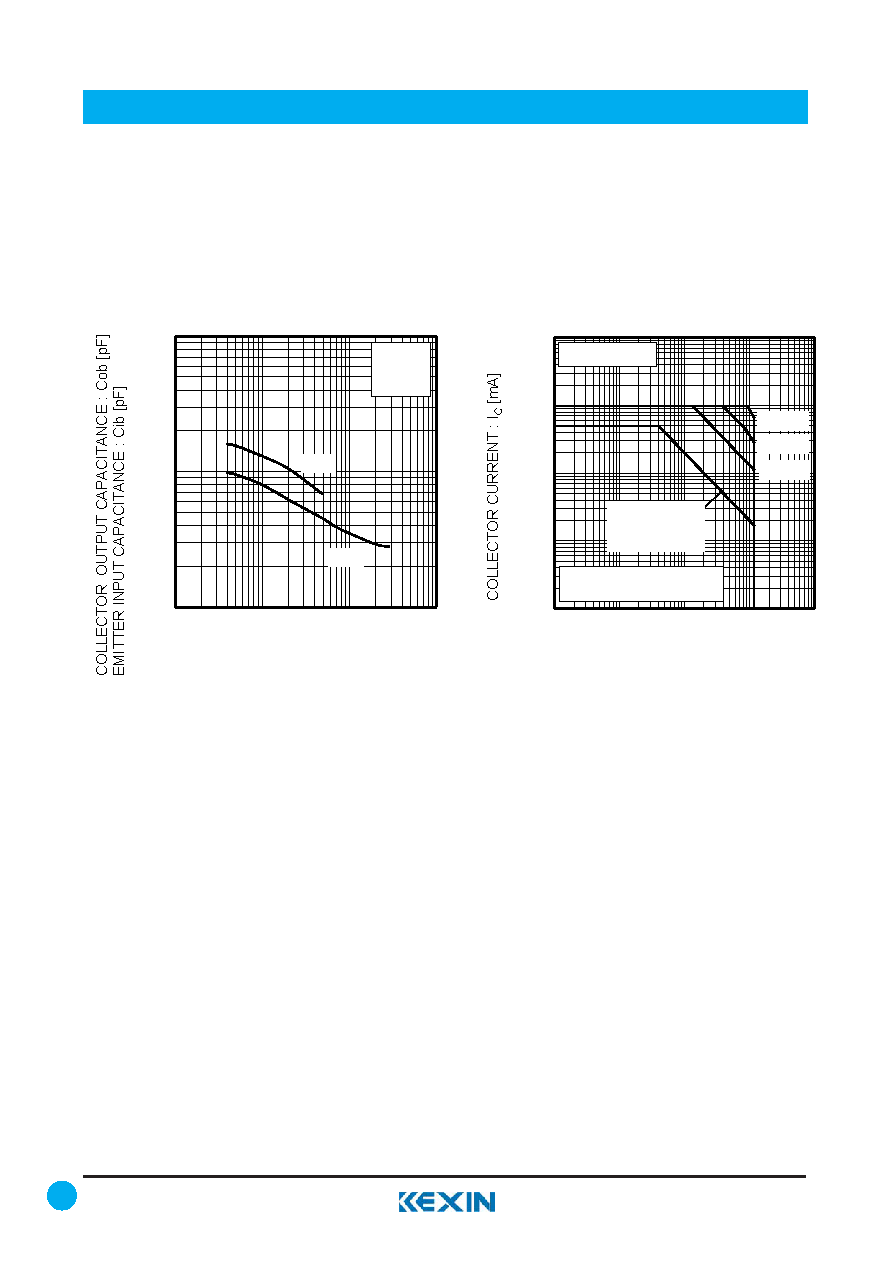

Fig.9 Emitter input capacitance vs.
Emitter-Base Voltage
Collector output capacitance vs.
Collector-Base Voltage
COLLECTOR - BASE VOLTAGE : VCB [V]
EMITTER - BASE VOLTAGE : VEB [V]
Fig.10 Safe Operating Area
COLLECTOR TO EMITTER VOLTAGE : VCE [V]
