DocID16891 Rev 30

35/45

M24C64-W M24C64-R M24C64-F

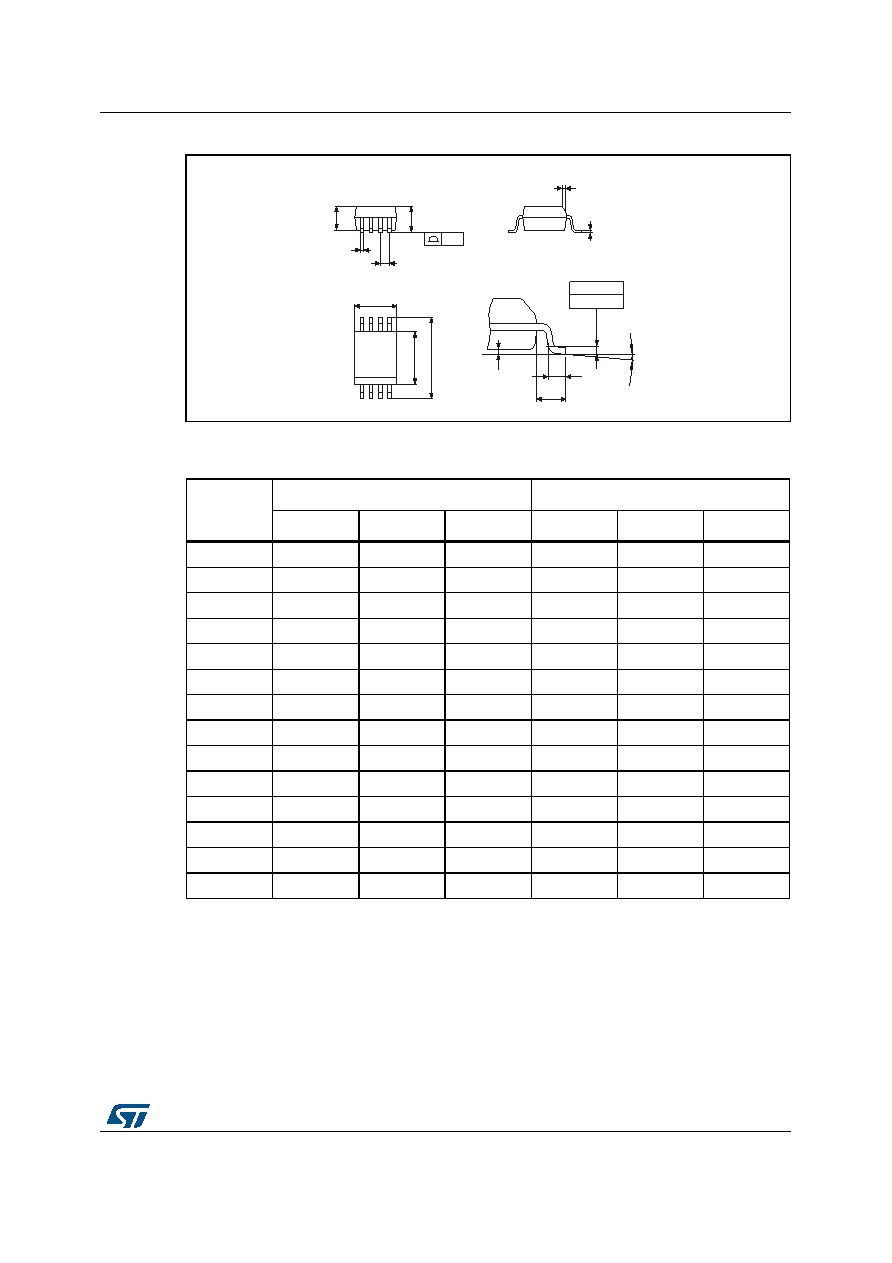

Figure 19. SO8N – 8-lead plastic small outline, 150 mils body width, package outline

1. Drawing is not to scale.

Table 20. SO8N – 8-lead plastic small outline, 150 mils body width, package data

Symbol

millimeters

inches (1)

1. Values in inches are converted from mm and rounded to four decimal digits.

Typ

Min

Max

Typ

Min

Max

–

1.750

–

0.0689

–

0.100

0.250

–

0.0039

0.0098

–

1.250

–

0.0492

–

0.280

0.480

–

0.0110

0.0189

–

0.170

0.230

–

0.0067

0.0091

ccc

–

0.100

–

0.0039

4.900

4.800

5.000

0.1929

0.1890

0.1969

6.000

5.800

6.200

0.2362

0.2283

0.2441

3.900

3.800

4.000

0.1535

0.1496

0.1575

1.270

–

0.0500

–

0.250

0.500

–

0.0098

0.0197

–

0°

8°

–

0°

8°

–

0.400

1.270

–

0.0157

0.0500

1.040

–

0.0409

–
