SSL21083AT
Compact non-dimmable LED driver IC
8.2 Valley detection
A new cycle is started when the primary switch is switched on (see Figure 4). Following
time t1, when the peak current is detected on the SOURCE pin, the switch is turned off
and the secondary stroke starts (3). When the secondary stroke is complete and the coil
current at t3 equals zero, the drain voltage starts to oscillate around the VIN  VOUT level.
The amplitude equals VOUT. A special feature, called valley detection is an integrated part
of the SSL21083AT circuitry. Dedicated built-in circuitry connected to the DRAIN pin,
senses when the voltage on the drain of the switch has reached its lowest value. The next
cycle is then started and as a result the capacitive switching losses are reduced.
If both the frequency of the oscillations and the voltage swing are within the range
specified (fring and ∆Vvrec(min)) for detection, a valley is detected and accepted. If a valid
valley is not detected, the secondary stroke is continued until the maximum off-time
(toff(high)) is reached. Then the next cycle is started.

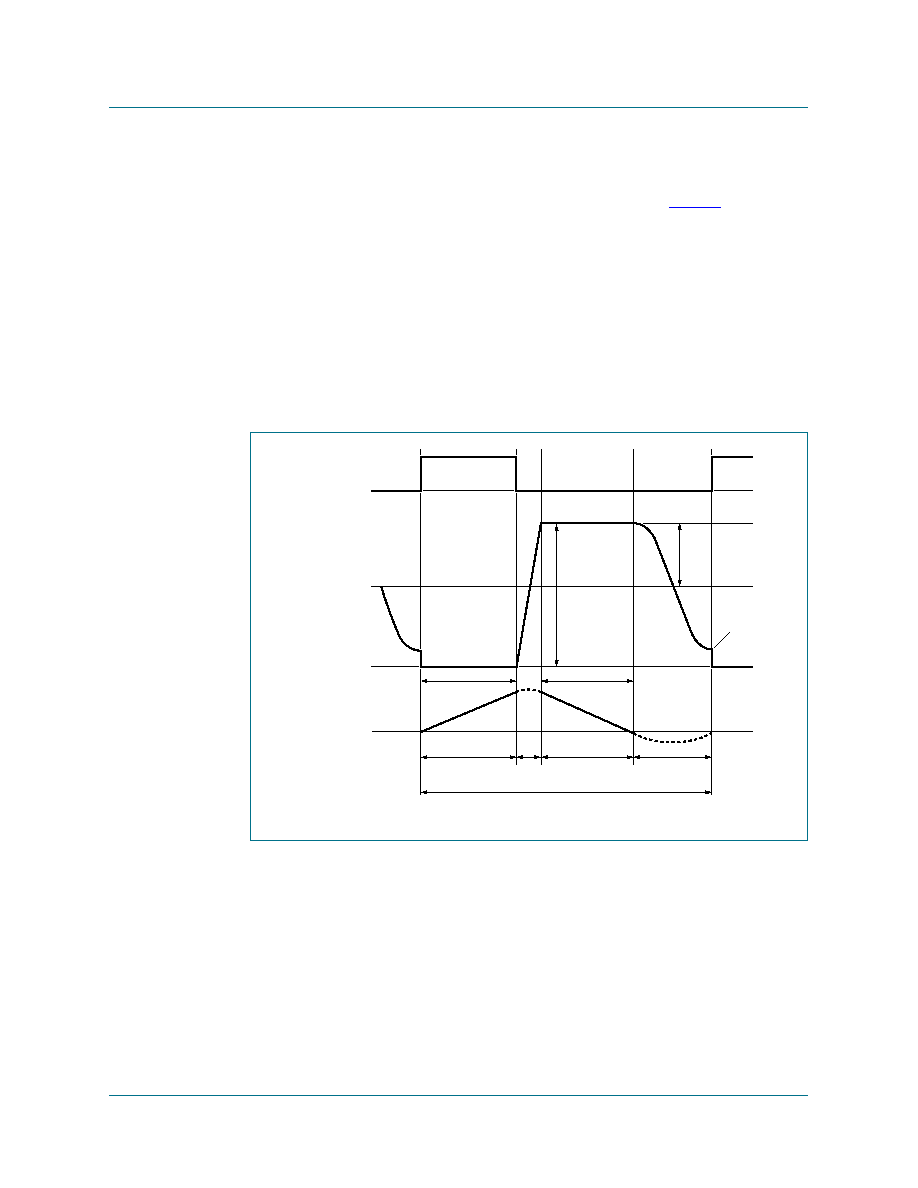

Fig 4.
Buck waveforms and valley detection
