TITLE

SCALE

DATE

DR

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

SHEET

OF

REV

PCR NO

DESCRIPTION

DATE

BY

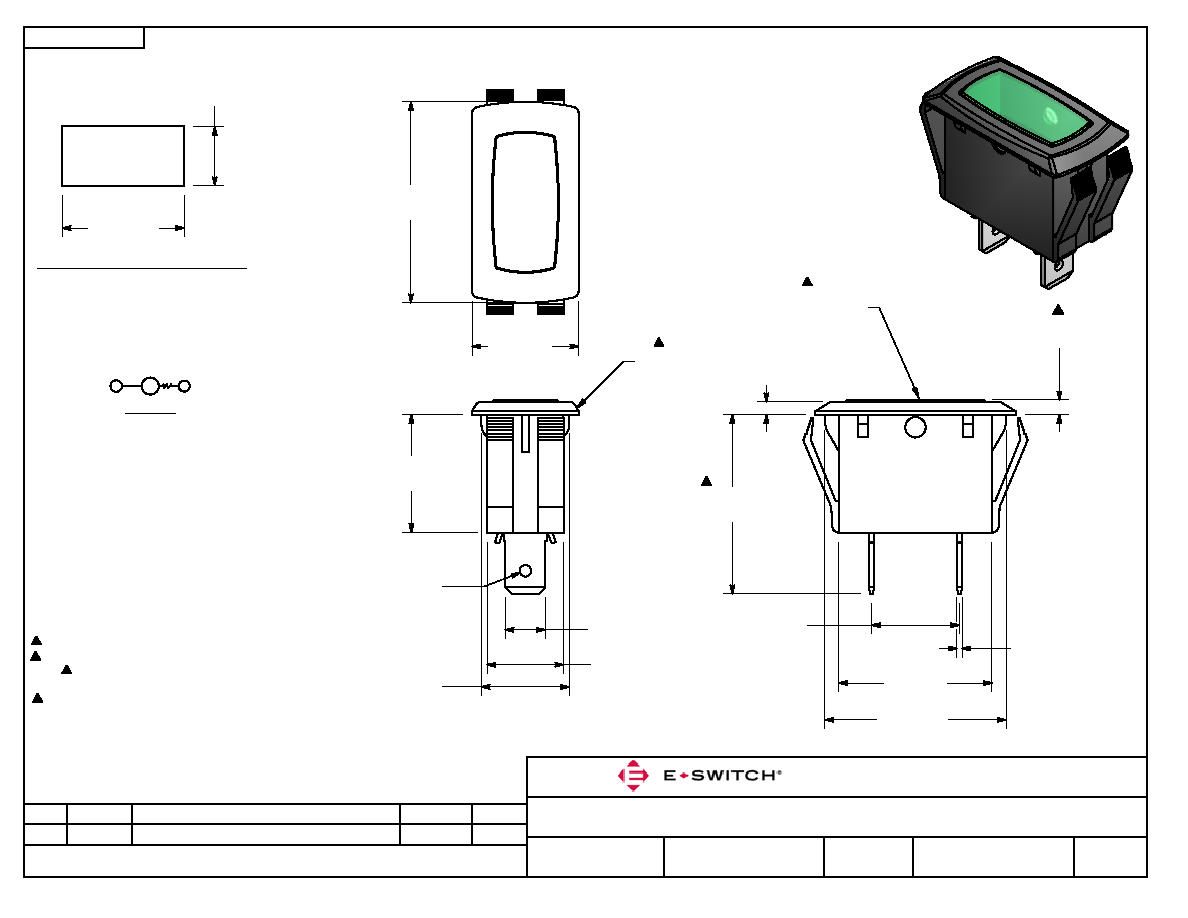

RSCHT14001000-137

1.5 : 1

4/9/2012

14-RSCS00224

A

rc

1

1

1

3

3

A

20610

Release For Production

5/16/12

rc

31.50

[1.240 in]

16.70

[.657 in]

18.50

[.728 in]

[]

2.00

[.079 in]

[]

.80

[.031 in]

13.80

[.543 in]

6.30

[.248 in]

n1.80

[.071 in]

12.00

[.472 in]

13.80

[.543 in]

24.00

[.945 in]

28.50

[1.122 in]

28.60

[1.126 in]

13.90

[.547 in]

SUGGESTED PANEL CUTOUT

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERM. NOS. FOR REF. ONLY

4. FUNCTION: SIGNAL LIGHT

5. LAMP VOLTAGE: 250V NEON BULB

6.

DENOTES CRITICAL PARAMETER.

7. 2002/95/EC (ROHS) COMPLIANT.

8. MATERIAL:

HOUSING: POLYAMIDE 6/6, UL94V0, CM3004

ACYUATOR: POLYCARBONATE, UL94V0

BLACK

HOUSING

FULL ILLUMINATION

GREEN

L1

3

CIRCUIT
