RS6-R30 Folha de dados(PDF) 3 Page - RSG Electronic Components GmbH

Nome de Peças RS6-R30
Descrição Electrónicos  3.0 Watt regulated single output
PDF  3 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  RSG [RSG Electronic Components GmbH]
Página de início  http://www.rsg-electronic.de
Logo RSG - RSG Electronic Components GmbH

RS6-R30 Folha de dados(HTML) 3 Page - RSG Electronic Components GmbH

  RS6-R30 Datasheet HTML 1Page - RSG Electronic Components GmbH RS6-R30 Datasheet HTML 2Page - RSG Electronic Components GmbH RS6-R30 Datasheet HTML 3Page - RSG Electronic Components GmbH
Zoom Inzoom in Zoom Outzoom out
 3 / 3 page
background image
PIN NUMBER
1
2
3
9
10
11
12

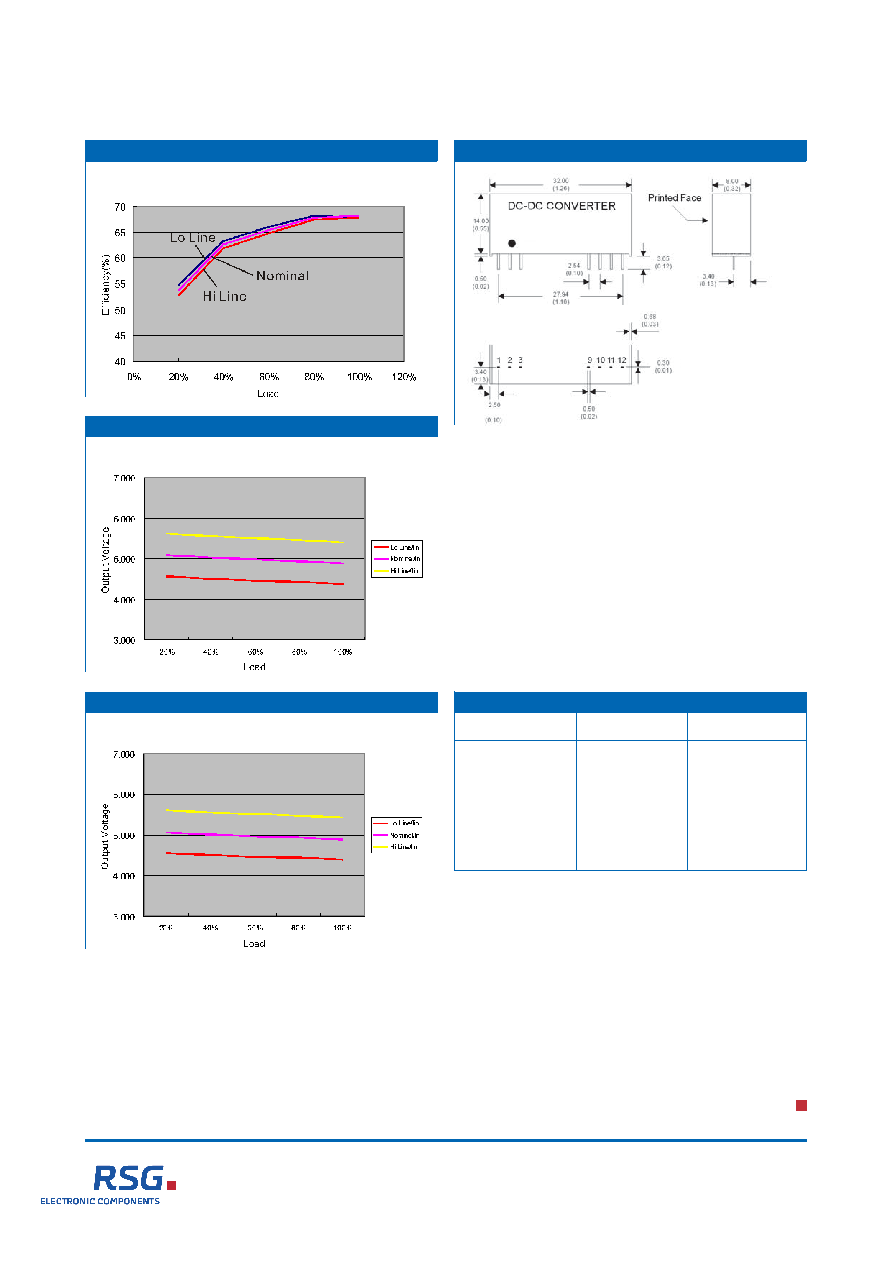

MECHANICAL SPECIFICATIONS
Single
+V Input
N.C.
N.C.
N.C.
-V Output
+V Output
-V Input
RS6-R30
3.0 Watt regulated
single output
Page: 3/3
Last update: 18.02.09
mail: info@rsg-electronic.de
www.rsg-electronic.de
RSG Electronic Components GmbH
Sprendlinger Landstr. 115
D-63069 Offenbach
Tel. +49 69 984047-0
Fax +49 69 984047-77
EFFICIENCY VS OUTPUT CURRENT 05
EFFICIENCY VS OUTPUT CURRENT 12
EFFICIENCY VS OUTPUT CURRENT 24
05 MODELS
24 MODELS
12 MODELS
PIN CONNECTIONS
Notes:
All dimensions are typical in millimeters (inches).
1) Pin diameter: 0.5 ± 0.05 (0.02 ± 0.002)
2) Pin pitch tolerance: ± 0.35 (± 0.014)
3) Case tolerance: ± 0.5 (± 0.02)
Single -A3
+V Input
-V Input
N.C.
N.C.
-V Output
+V Output
N.C.
