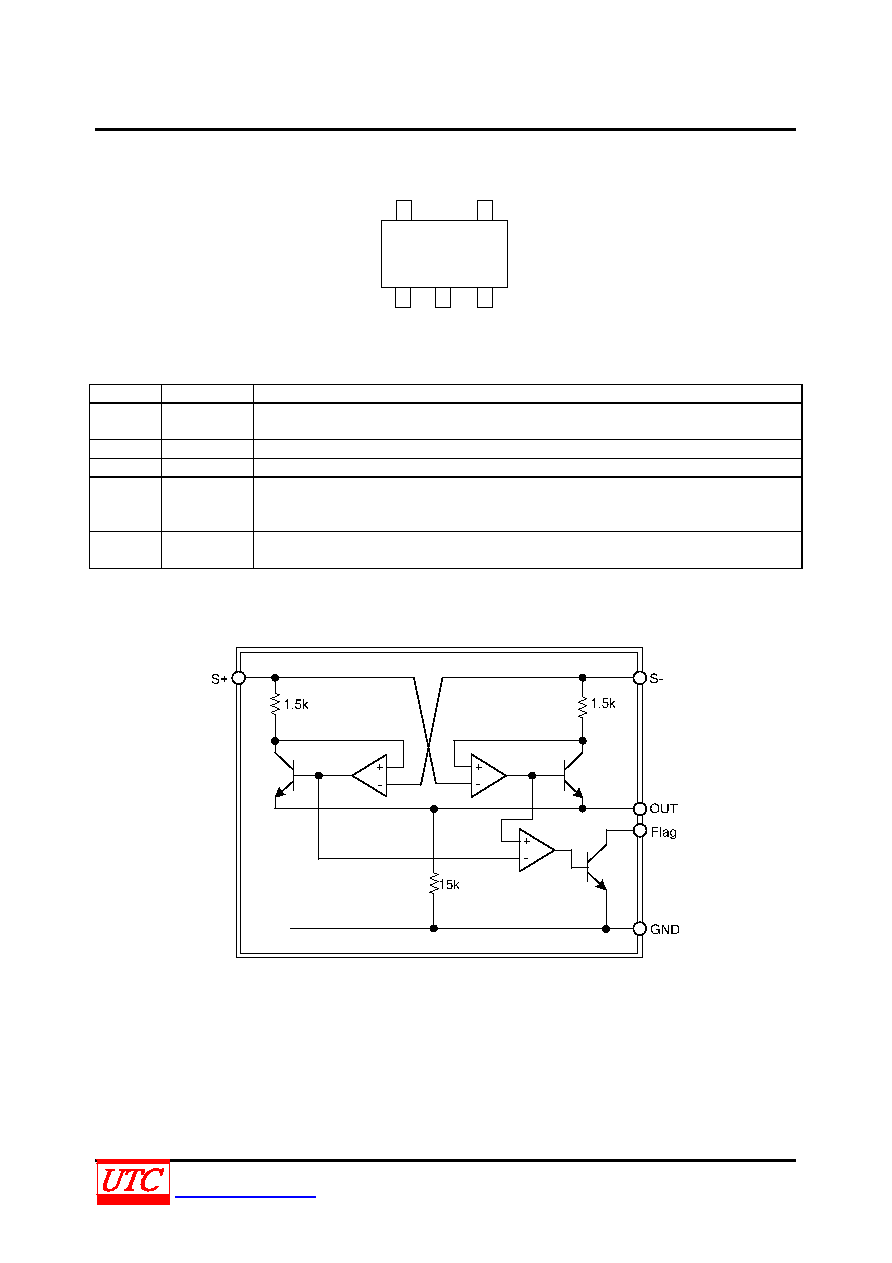

background image
UCM101
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 4
www.unisonic.com.tw
QW-R502-933.a
PIN CONFIGURATION
GND
S-
Flag
S+
OUT
1
23
4
5
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
Flag
This is the current direction pin. It is open collector and allows the logic high level to be
set independent of VS+ voltage. Low indicates VS+ is greater than VS-
2
GND
Ground pin
3
OUT
Output voltage pin
4
S+
This is the positive input of the current monitor. It also acts as the supply voltage pin
providing current for internal circuitry. The current through this pin varies with differential
sense voltage
5
S-
This is the negative input of the current monitor. The current through this pin varies with
differential sense voltage
BLOCK DIAGRAM
