Data Sheet
ADP1660
Rev. 0 | Page 5 of 28
I2C-COMPATIBLE INTERFACE TIMING SPECIFICATIONS
Table 3.
Parameter1
Min
Max
Unit
Description
fSCL
1000
kHz
SCL clock frequency
tHIGH
0.26
μs
SCL high time
tLOW
0.5
μs
SCL low time
tSU, DAT
50
ns
Data setup time
tHD, DAT
0
0.9
μs
Data hold time
tSU, STA
0.26
μs
Setup time for repeated start
tHD, STA
0.26
μs
Hold time for start/repeated start
tBUF
0.5
μs
Bus free time between a stop and a start condition
tSU, STO
0.26
μs
Setup time for stop condition
tR
20 + 0.1 CB2
120
ns
Rise time of SCL and SDA
tF
20 + 0.1 CB2
120
ns
Fall time of SCL and SDA
tSP
0
50
ns
Pulse width of suppressed spike
CB2
400
pF
Capacitive load for each bus line
1 Guaranteed by design.
2 CB is the total capacitance of one bus line in picofarads.

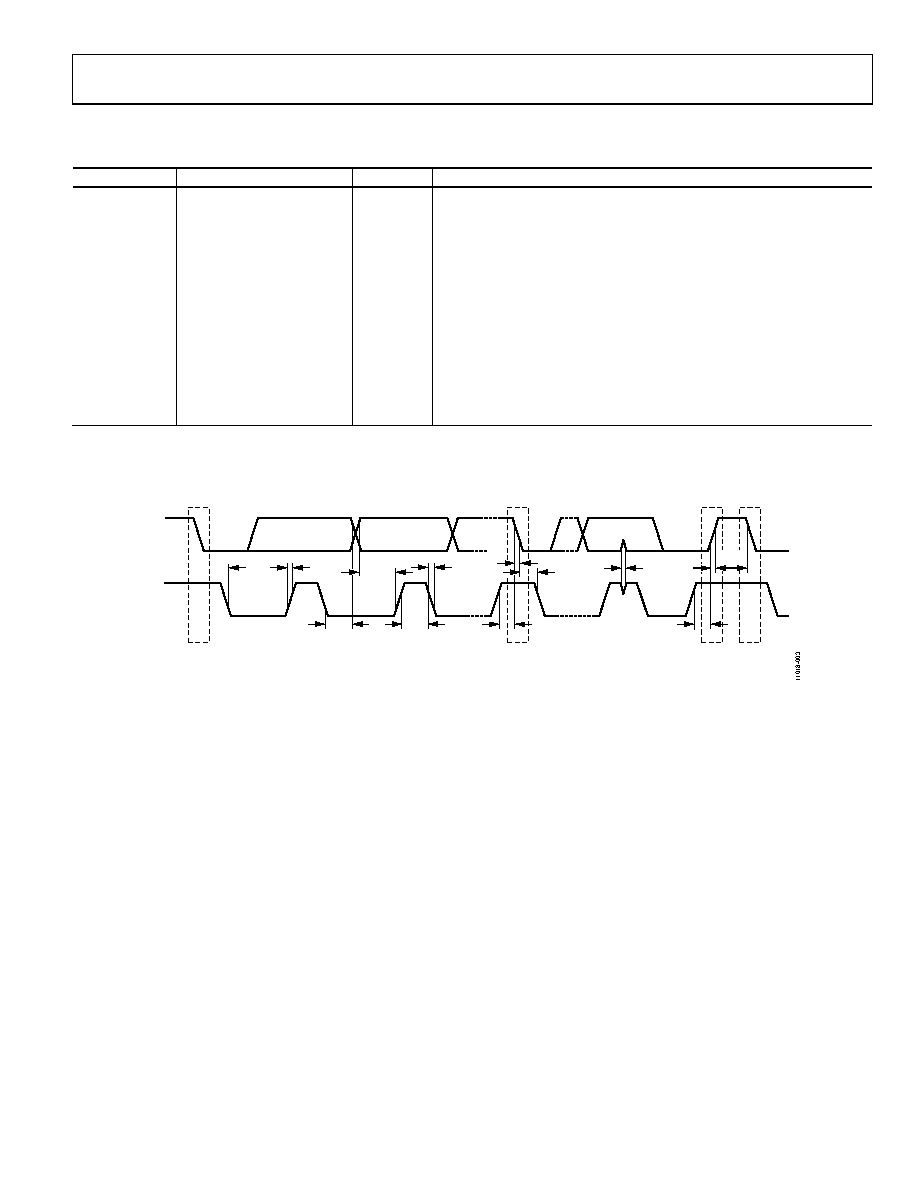

Timing Diagram
SDA
SCL
S
S = START CONDITION
Sr = REPEATED START CONDITION
P = STOP CONDITION
Sr
P
S
tLOW
tR
tHD, DAT
tHIGH
tSU, DAT
tF
tF
tSU, STA
tHD, STA
tSP
tSU, STO
tBUF
tR
Figure 3. I2C-Compatible Interface Timing Diagram
