Data Sheet
ADL5601
Rev. A | Page 13 of 16
W-CDMA ACPR PERFORMANCE

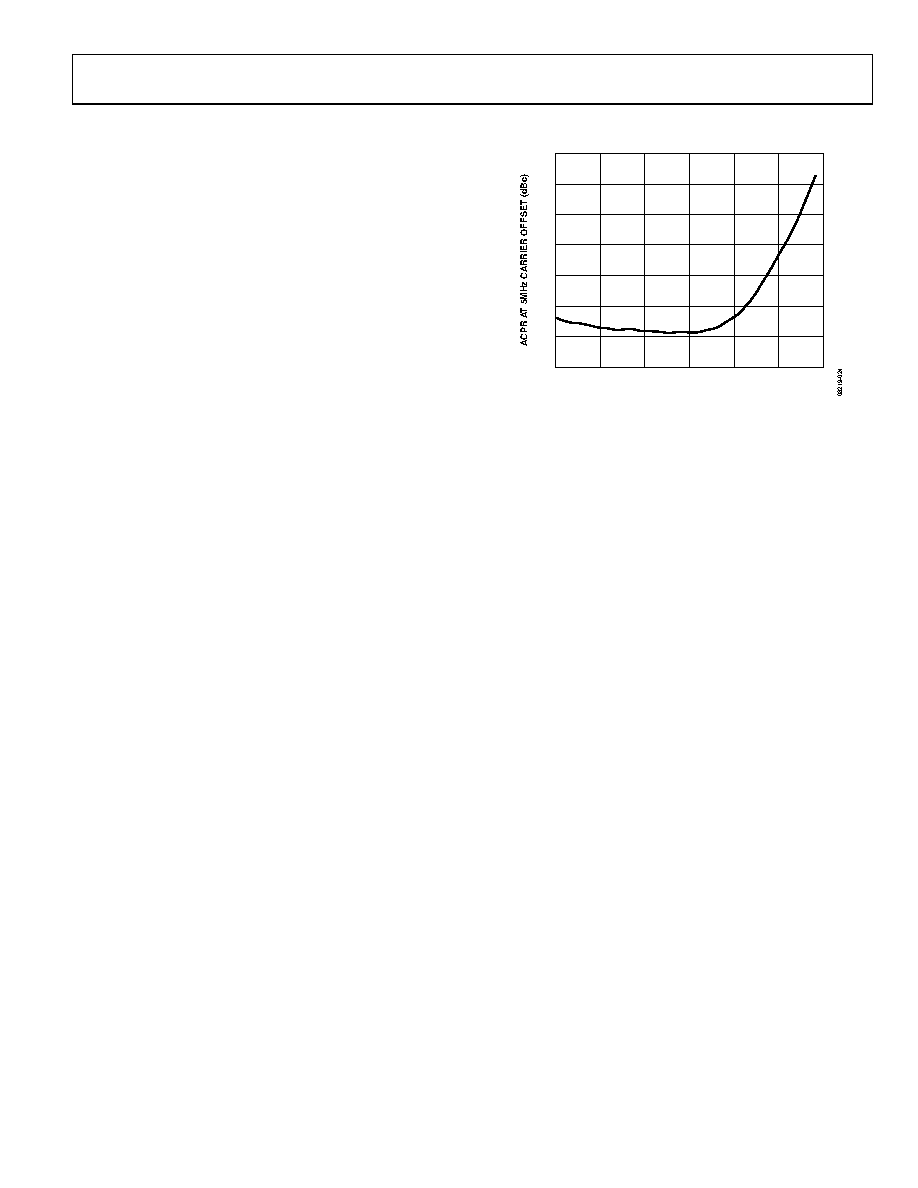

Figure 18 shows a plot of the adjacent channel power ratio
(ACPR) vs. POUT for the ADL5601. The signal type used is a
single wideband code division multiple access (W-CDMA)
carrier (Test Model 1, 64) at 2140 MHz. This signal is generated
by a very low ACPR source. ACPR is measured at the output by
a high dynamic range spectrum analyzer that incorporates an
instrument noise-correction function.
The ADL5601 achieves an ACPR of −69 dBc at −5 dBm output,
at which point device noise, rather than distortion, begins to
dominate the power in the adjacent channels. At an output
power of +5 dBm, ACPR is still very low at −56 dBc, making
the device particularly suitable for power amplifier (PA) driver
applications.
–75
–70
–65
–60
–55
–50
–45
–40
–20
–15
–10
–5
0
5
10
POUT (dBm)
Figure 18. ACPR vs. POUT, Single W-CDMA Carrier (Test Model 1, 64)
at 2140 MHz
