API840N Folha de dados(PDF) 8 Page - Aplus Intergrated Circuits

Nome de Peças API840N
Descrição Electrónicos  32 to 40 SEC INSTANT VOICE ROM
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  APLUS [Aplus Intergrated Circuits]
Página de início  http://www.aplusinc.com.tw
Logo APLUS - Aplus Intergrated Circuits

API840N Folha de dados(HTML) 8 Page - Aplus Intergrated Circuits

Back Button API840N Datasheet HTML 2Page - Aplus Intergrated Circuits API840N Datasheet HTML 3Page - Aplus Intergrated Circuits API840N Datasheet HTML 4Page - Aplus Intergrated Circuits API840N Datasheet HTML 5Page - Aplus Intergrated Circuits API840N Datasheet HTML 6Page - Aplus Intergrated Circuits API840N Datasheet HTML 7Page - Aplus Intergrated Circuits API840N Datasheet HTML 8Page - Aplus Intergrated Circuits API840N Datasheet HTML 9Page - Aplus Intergrated Circuits API840N Datasheet HTML 10Page - Aplus Intergrated Circuits
Zoom Inzoom in Zoom Outzoom out
 8 / 10 page
background image
8
APPLICATION CIRCUITS
Vcc
GND
TG1
TG2
TG3
TG4
TG5
TG6
TG7
TG8
SBT
IRP
OSC
COUT
SP
ROSC
Vcc
GND
SBT
IRP
OSC
COUT
SP
ROSC
Vcc
GND
SBT
IRP
OSC
ROSC
COUT
STP

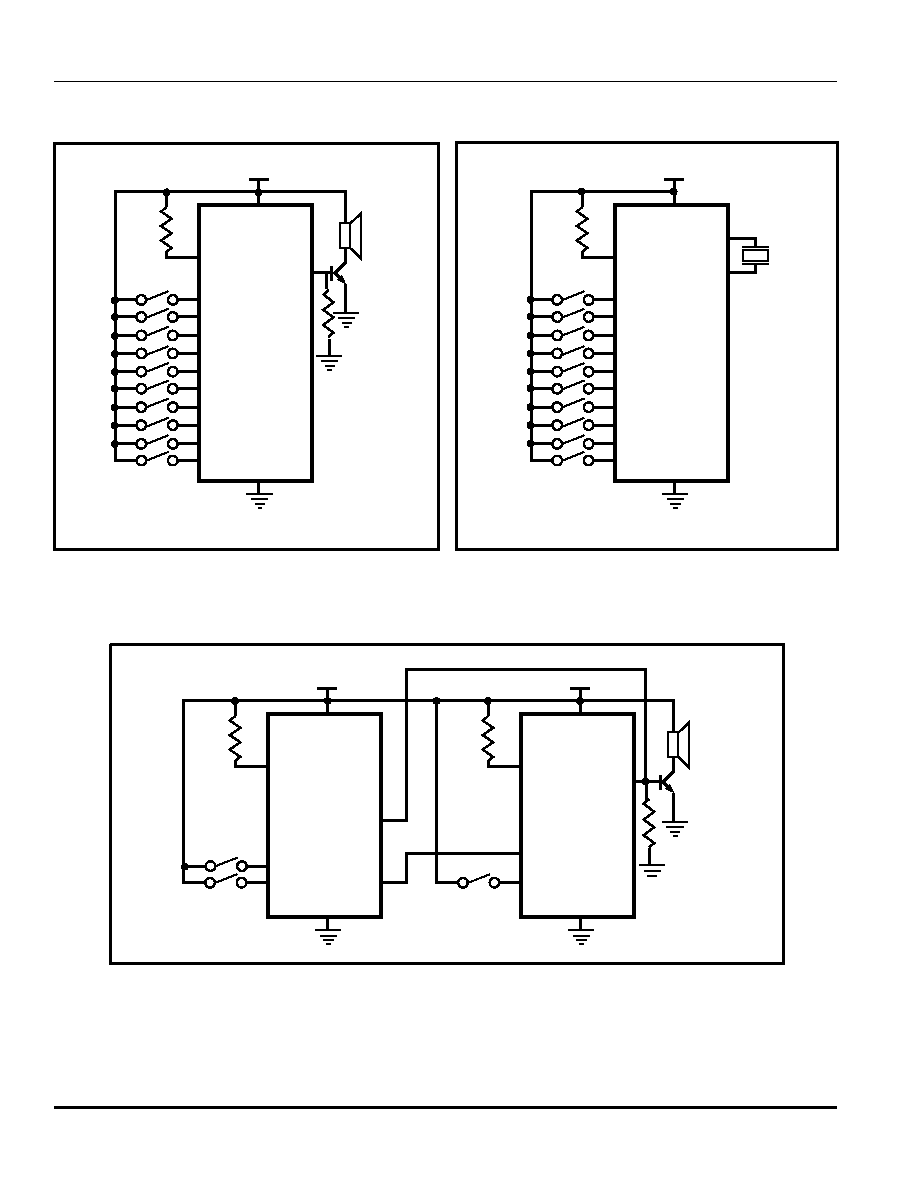

Figure 1. Typical Application with Speaker
Figure 3. Cascade Application
Figure 2. Typical Application with Piezo Buzzer
Vcc
GND
TG1
TG2
TG3
TG4
TG5
TG6
TG7
TG8
SBT
IRP
OSC
VOUT2
ROSC
VOUT1
PIEZO
BUZZER
APLUS
API840N
R
R
