ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
VCC - GND
Terminal Voltage with Respect to GND
–0.5 to +7.0
V
VIN
GND – 0.3 < VIN < VCC + 0.3
V
VOUT
GND < VOUT < VCC
V
TA
Operating Temperature
–10 to +85
°C
TSTG
Storage Temperature
–55 to +125
°C
BONDING PARAMETERS
Pin
Name
X
Y
1
OUT1
-6
–1017
2VOUT1
297
–1017
3VOUT2
803
–1017
4
GND
1058
–1017
5
OUT2
927
1017
6
OUT3
697
1017
7COUT
199
1017
8
OSC
–103
1017
9VPP
–358
1017
10
TG1
–566
1017
11
TG2
–810
1017
12
VCC
–1059
1017
13
TG3
–934
–1017
14
TG4
–689
–1017
15
SBT
–444
–1017
16
IRP
–200
–1017

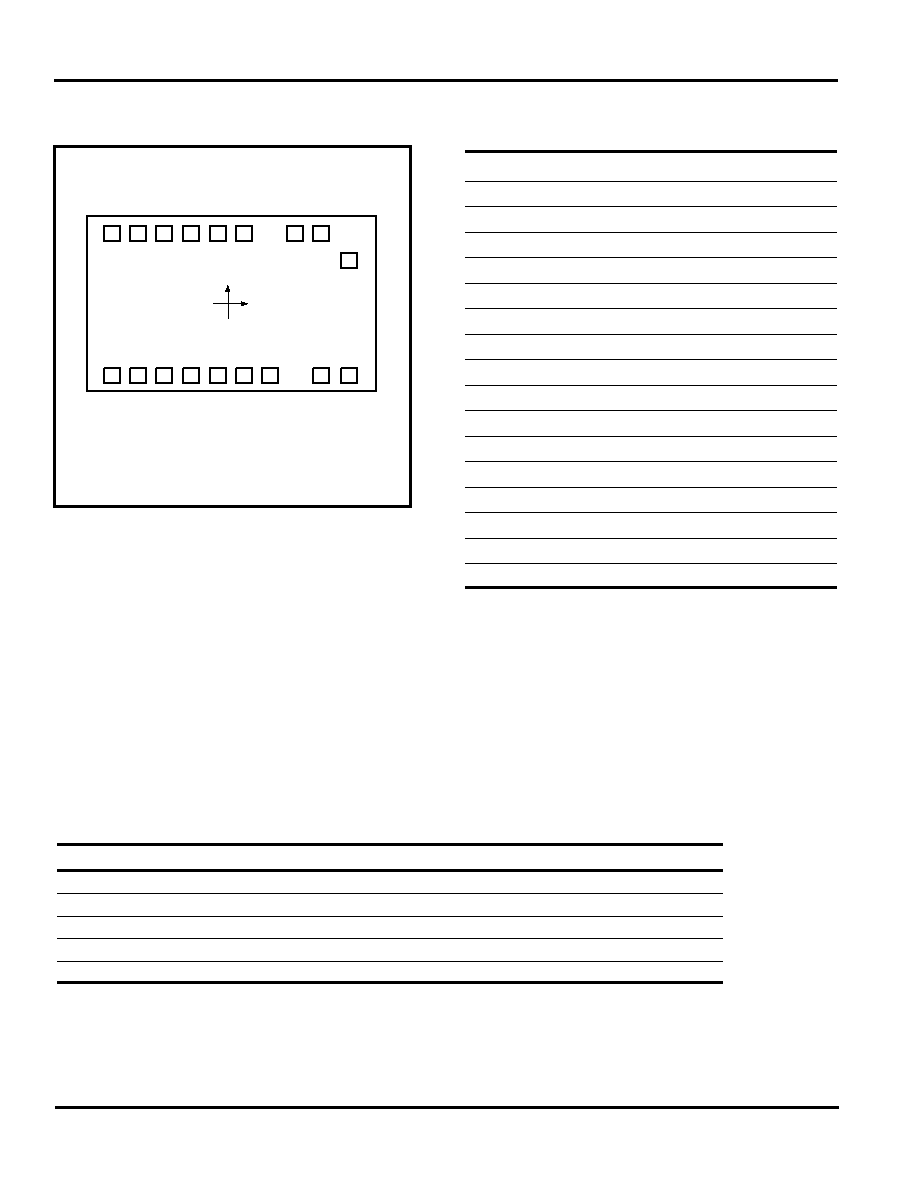

BONDING DIAGRAM
Note:
Programming requires connection to
pins 4, 5, 6, 8, 9, 12, 15, and 16.
12
11
10
9
8
7
6
5
13
14
15
16
2
4
13
NC
NC
(0,0)
X
Y
Note: Substrate must be connected to GND
Pad size = 80 µm x 80 µm
Die size = 2350 x 2260 µm
92.5 x 88.97 mil
