PHASE-LOCKED LOOP (PLL)
VCCx = 5 V, TA = 25°C, 120 kHz loop filter, fREF = 153.6 MHz, PLL reference amplitude = 4 dBm, fPFD = 38.4 MHz, measured at LO
output, unless otherwise noted.
–160
–150
–140
–130
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)

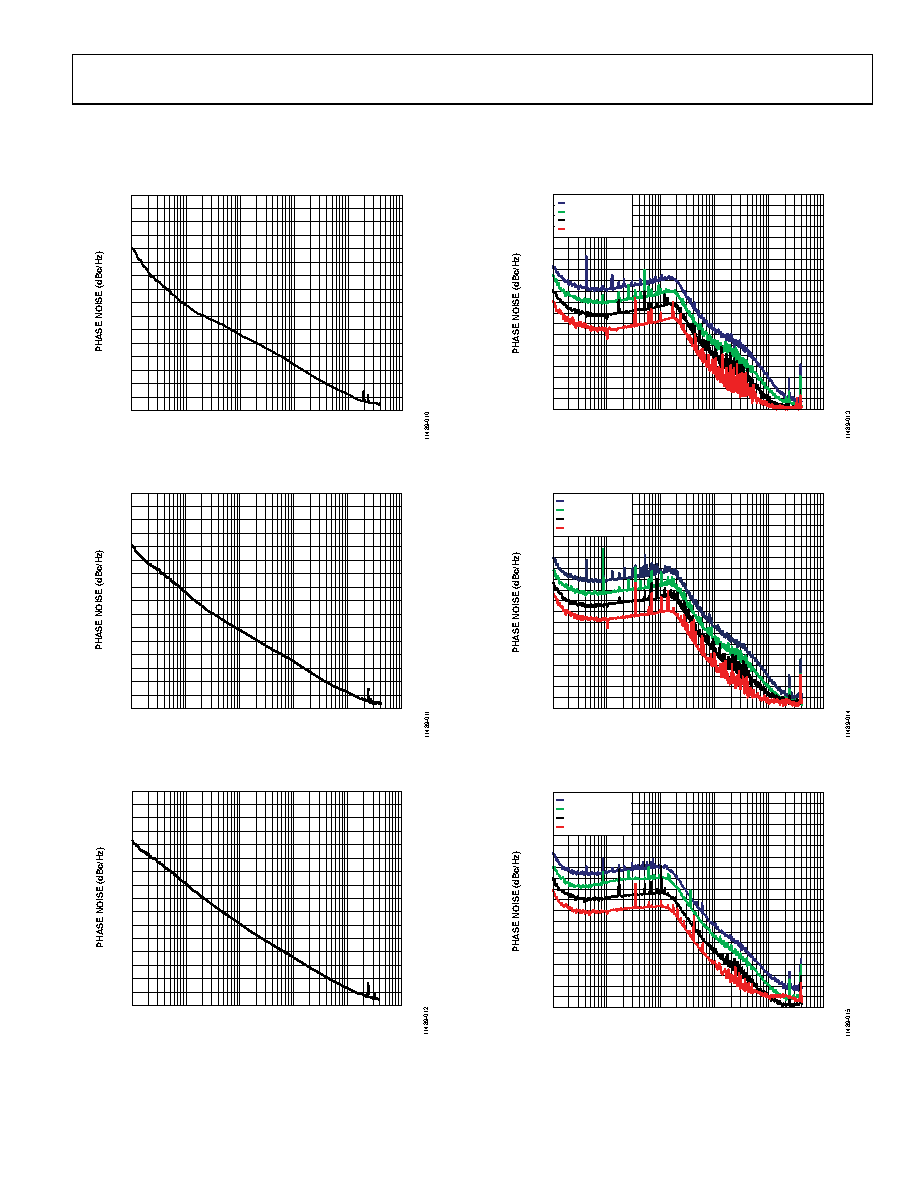

Figure 14. VCO2 Open-Loop VCO Phase Noise vs. Offset Frequency;
fVCO2 = 3.4 GHz, LO_DIV_A = 00, VTUNE = 2 V
–160
–150
–140
–130
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)
Figure 15. VCO1 Open-Loop Phase Noise vs. Offset Frequency;
fVCO1 = 4.6 GHz, LO_DIV_A = 00, VTUNE = 2 V
–160
–150
–140
–130
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
0
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)
Figure 16. VCO0 Open-Loop Phase Noise vs. Offset Frequency;
fVCO0 = 5.5 GHz, LO_DIV_A = 00, VTUNE = 2 V
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)
–160
–155
–150
–145
–140
–135
–130
–125
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
–65
–60
LO_DIV_A = 00
LO_DIV_A = 01
LO_DIV_A = 10
LO_DIV_A = 11
Figure 17. VCO2 Closed-Loop Phase Noise for Various LO_DIV_A Dividers vs.
Offset Frequency; fVCO2 = 3.4 GHz
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)
–160
–155
–150
–145
–140
–135
–130
–125
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
–65
–60
LO_DIV_A = 00
LO_DIV_A = 01
LO_DIV_A = 10
LO_DIV_A = 11
Figure 18. VCO1 Closed-Loop Phase Noise for Various LO_DIV_A Dividers vs.
Offset Frequency; fVCO1 = 4.6 GHz
1k
10k
100k
1M
10M
100M
OFFSET FREQUENCY (Hz)
–160
–155
–150
–145
–140
–135
–130
–125
–120
–115
–110
–105
–100
–95
–90
–85
–80
–75
–70
–65
–60
LO_DIV_A = 00
LO_DIV_A = 01
LO_DIV_A = 10
LO_DIV_A = 11
Figure 19. VCO0 Closed-Loop Phase Noise for Various LO_DIV_A Dividers vs.
Offset Frequency; fVCO0 = 5.532 GHz
