EE-SY671/672

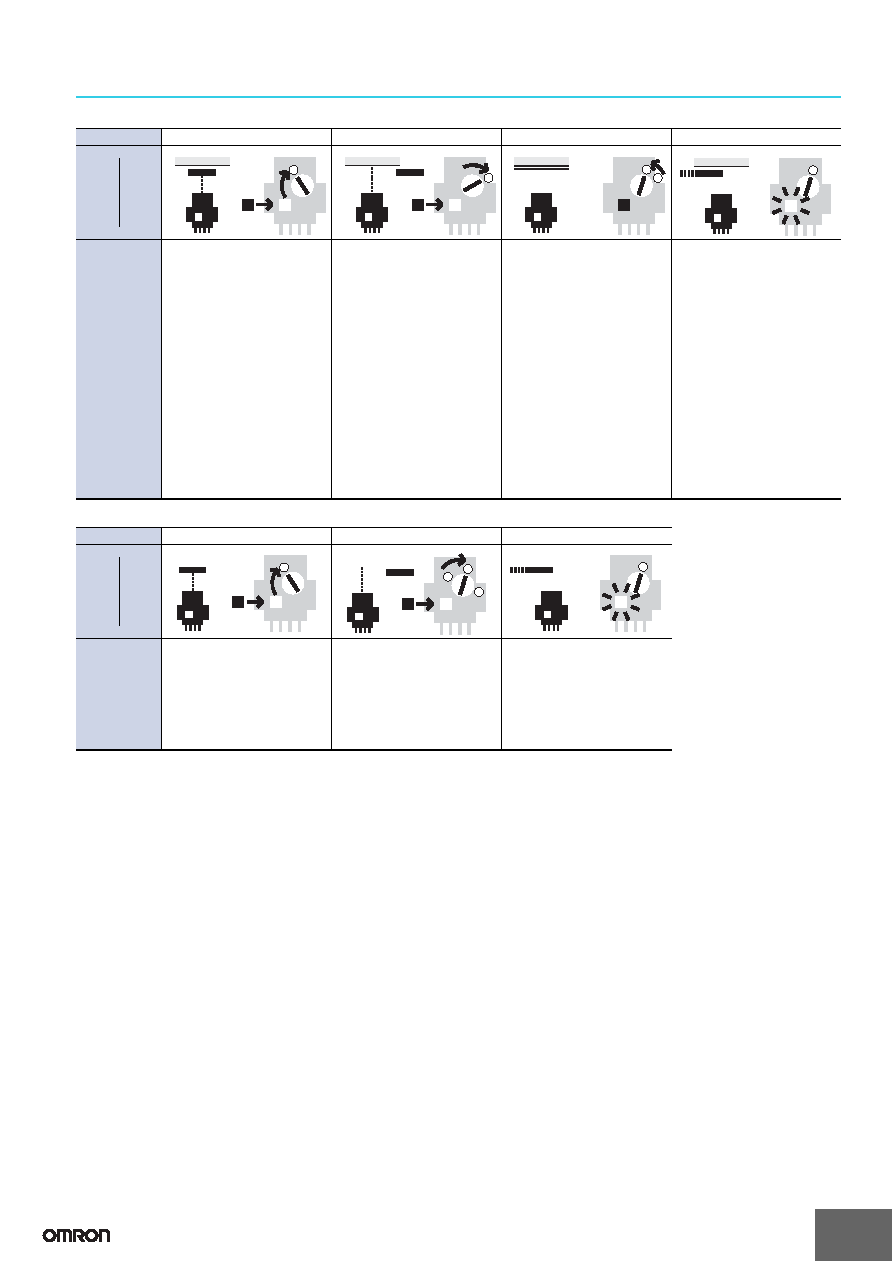

Sensitivity Adjustment with Background Object

Sensitivity Adjustment with No Background Object

Point A

Point B

Setting

Check

Sens-

ing

condi-

tions

Ad-

juster

indi-

cator

Adjustment

Procedure

1. Set the sensitivity of the

photomicrosensor to

minimum, place the sensing

object in the sensing

position, turn the sensitivity

adjuster clockwise slowly

until the light indicator is lit

(point A).

2. Remove the sensing object,

at which time the light

indicator will be OFF.

Further turn the sensitivity

adjuster clockwise slowly

until the light indicator is lit

again (point B). The

operation indicator will not

light again if the background

object does not reflect light,

in which case refer to

‘Sensitivity Adjustment with

No Background Object”.

3. Set the sensitivity adjuster

at the center (point C)

between point A and B.

Points A and B will be very

close if the sensor is

influenced by excessive

light reflected by the

background object, in which

case take the following

preventive measures.

(1) Separate the sensor and

the background object

by a distance of 20 mm

min.

(2) Cover the surface of the

background object with

a material with a small

reflection factor, such as

black sponge.

4. After setting the sensitivity

adjuster to point C, check if

the light indicator is lit on

placing the sensing object at

the sensing position and not

lit on removing the sensing

object.

Background object

Black paper with small

reflection factor

Point A

Point B

Check

Sens-

ing

condi-

tions

Ad-

juster

indi-

cator

Adjustment

Procedure

1. Set the sensitivity of the

photomicrosensor to

minimum, place the sensing

object at the sensing

position, turn the sensitivity

adjuster clockwise slowly

until the light indicator is lit

(point A).

2. Set the sensitivity adjuster

at the center (point C)

between points A and B (the

point where the sensitivity is

maximum).

3. After setting the sensitivity

adjuster to point C, check if

the light indicator is not lit on

removing the sensing

object.
