Application information

LED2000

30/40

DocID023432 Rev 4

higher than the nominal value thanks to the increased voltage drop across stray

components. In most of the application conditions the pulse-by-pulse current limitation is

effective to limit the inductor current. Whenever the current escalates, a second level current

protection called “Hiccup mode” is enabled. Hiccup protection offers an additional protection

against heavy short-circuit conditions at very high input voltage even considering the spread

of the minimum conduction time of the power element. If the hiccup current level (6.2 A

typical) is triggered, the switching activity is prevented for 12 cycles.

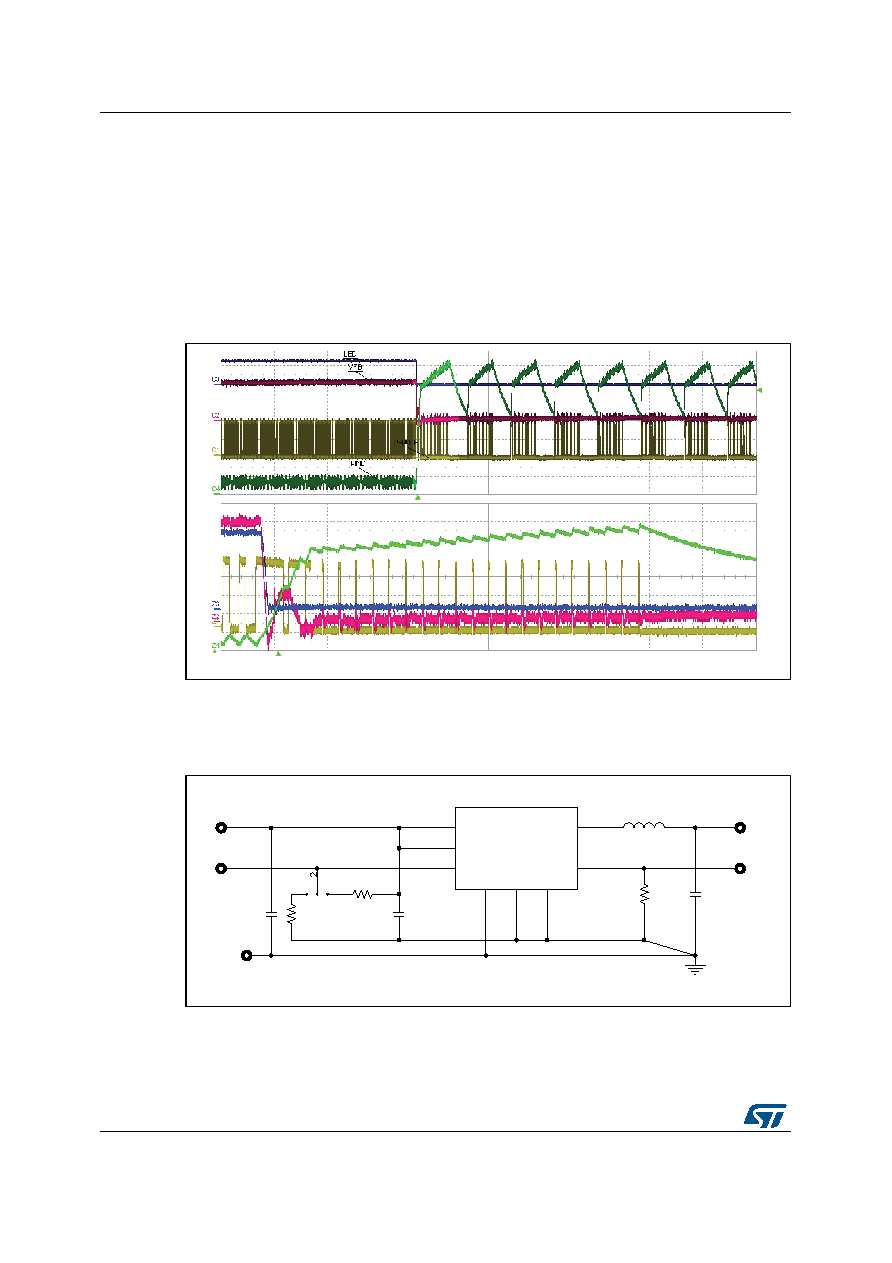

Figure 18 shows the operation of the constant current protection when a short-circuit is

applied at the output at the maximum input voltage.

Figure 18. Constant current protection triggering hiccup mode

7.5

Application circuit

Figure 19. Demonstration board application circuit

AM12909v1
