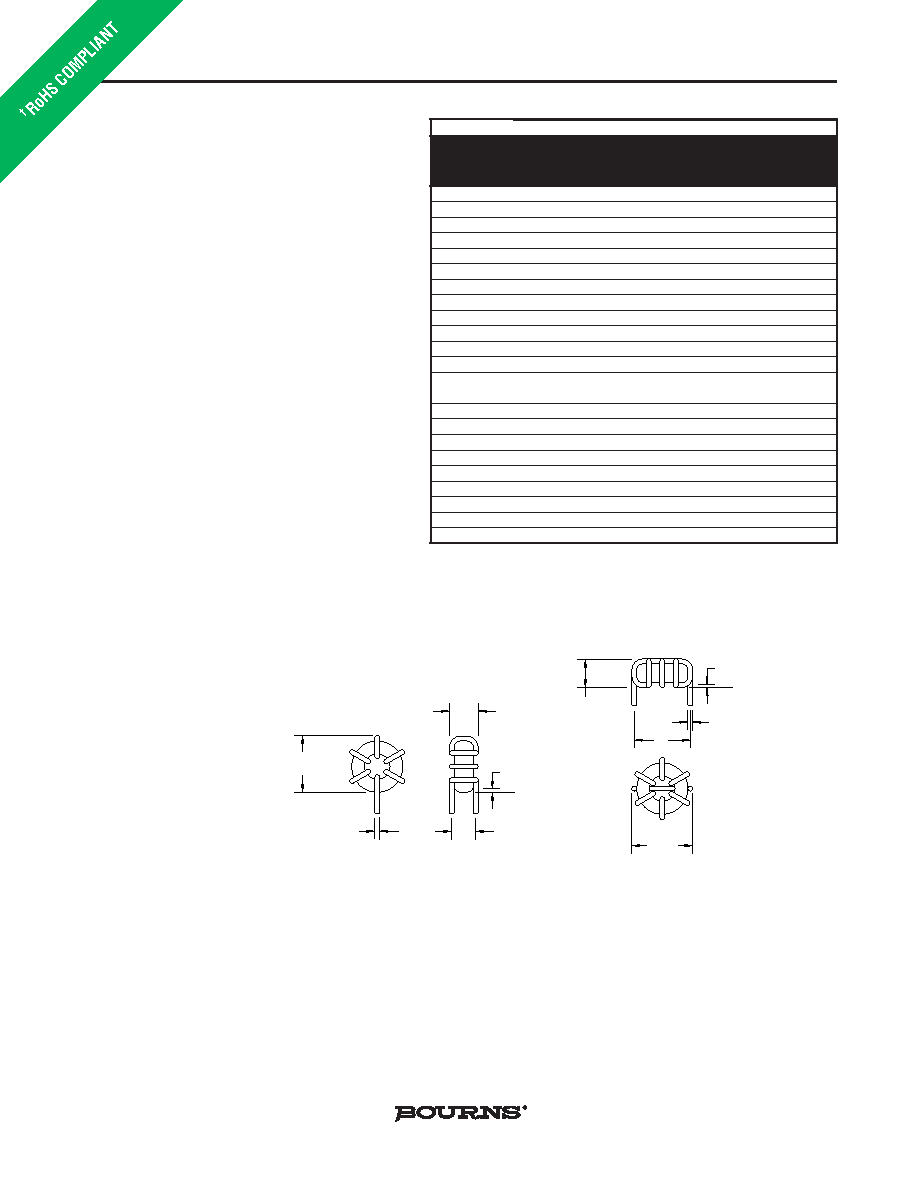

1 / 1 page  Tel. (877) 426-8767 • Fax (951) 781-5006 www.bourns.com 23.1 High Current Toroid Inductors Special Features • Low radiation • Low core loss • High operation frequency • High current capacity • Low core saturation • Horizontal or vertical mount • Operating temperature: -55 to +105 °C Typical Applications • High current, low voltage converters • High-speed computers • Video game machines • Output chokes • EMI filters Notes * Rated current to cause 40 °C temperature rise. ** Insert “-H” or “-V” for mounting style before “-RC”. Example: 2000-390-V-RC 2000 Series Part Number L (µH) ±20 % @ 1 KHz Idc* (A) L (µH) ±20 % @ I rated DCR Ω Max. Dim. A Nom. Dim. B Nom. Dim. C Nom. 2000-R3-RC 0.3 28.5 0.24 0.0010 0.35 0.60 0.059 2000-R5-RC 0.5 24.7 0.41 0.0012 0.35 0.60 0.059 2000-R8-RC 0.8 22.1 0.62 0.0014 0.35 0.60 0.059 2000-1R2-RC 1.2 20.2 0.86 0.0017 0.35 0.60 0.059 2000-1R5-RC 1.5 18.7 1.14 0.0020 0.35 0.60 0.059 2000-2R0-RC 2.0 15.6 1.5 0.0027 0.34 0.59 0.053 2000-2R7-RC 2.7 14.7 1.9 0.0030 0.34 0.59 0.053 2000-3R3-RC 3.3 11.1 2.5 0.0053 0.33 0.58 0.042 2000-3R9-RC 3.9 10.5 3.0 0.0059 0.33 0.58 0.042 2000-4R7-RC 4.7 10.1 3.5 0.0064 0.33 0.58 0.042 2000-5R6-RC 5.6 9.7 4.0 0.0069 0.33 0.58 0.042 2000-6R8-RC 6.8 7.2 5.7 0.013 0.31 0.56 0.034 ± 15 % ± 15 % 2000-8R2-RC 8.2 7.0 6.4 0.014 0.31 0.56 0.034 2000-100-RC 10 6.6 7.9 0.015 0.31 0.56 0.034 2000-120-RC 12 6.4 8.7 0.016 0.31 0.56 0.034 2000-150-RC 15 4.7 12.4 0.029 0.29 0.53 0.027 2000-180-RC 18 4.5 14.5 0.032 0.29 0.53 0.027 2000-220-RC 22 4.3 16.7 0.035 0.29 0.53 0.027 2000-270-RC 27 4.1 20.4 0.039 0.29 0.53 0.027 2000-330-RC 33 3.5 25.4 0.054 0.29 0.53 0.024 2000-390-RC 39 3.3 29.9 0.059 0.29 0.53 0.024 2000-470-RC 47 3.2 34.6 0.064 0.29 0.53 0.024 REV. 11/09 † RoHS Directive 2002/95/EC Jan 27 2003 including Annex. Vertical Dimensions: Inches Horizontal 0.41 Max. Max. A 0.68 0.41 Max. B C C 0.062 Max. 0.68 Max. 0.062 Max. Mounting plane. Leads tinned to within 0.062 above mounting plane. 0.25 lead length. Mounting plane. Leads tinned to within 0.062 above mounting plane. 0.25 lead length. |
