AD6650
Rev. A | Page 13 of 44
TYPICAL PERFORMANCE CHARACTERISTICS
IF FREQUENCY (MHz)
44
42
40
38
36
32
34
30
70
90
110
130
150
170
190
210
230
250
–25°C
+25°C
+85°C

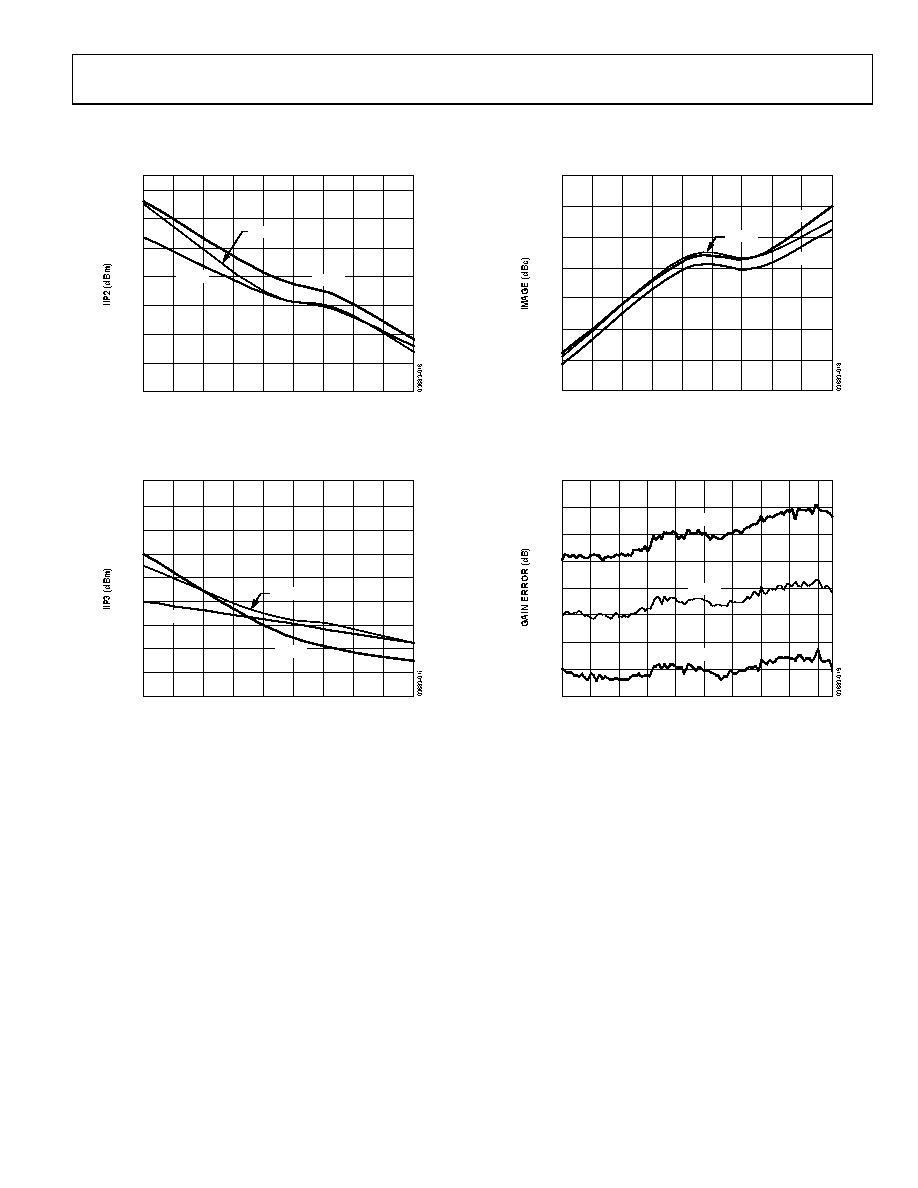

Figure 15. Input IP2 vs. Frequency
IF FREQUENCY (MHz)
–6
–7
–8
–9
–10
–13
–14
–12
–11
–15
70
90
110
130
150
170
190
210
230
250
–25°C
+25°C
+85°C
Figure 16. Input IP3 vs. Frequency
IF FREQUENCY (MHz)
–44
–45
–46
–47
–48
–49
–50
–51
70
90
110
130
150
170
190
210
230
250
–25°C
+25°C
+85°C
Figure 17. Image vs. Frequency
IF FREQUENCY (MHz)
0.2
0
–0.2
–0.4
–0.6
–0.8
–1.0
–1.2
–1.4
70
90
110
130
150
170
190
210
230
250
–25°C
+25°C
+85°C
Figure 18. Gain Error vs. Frequency
