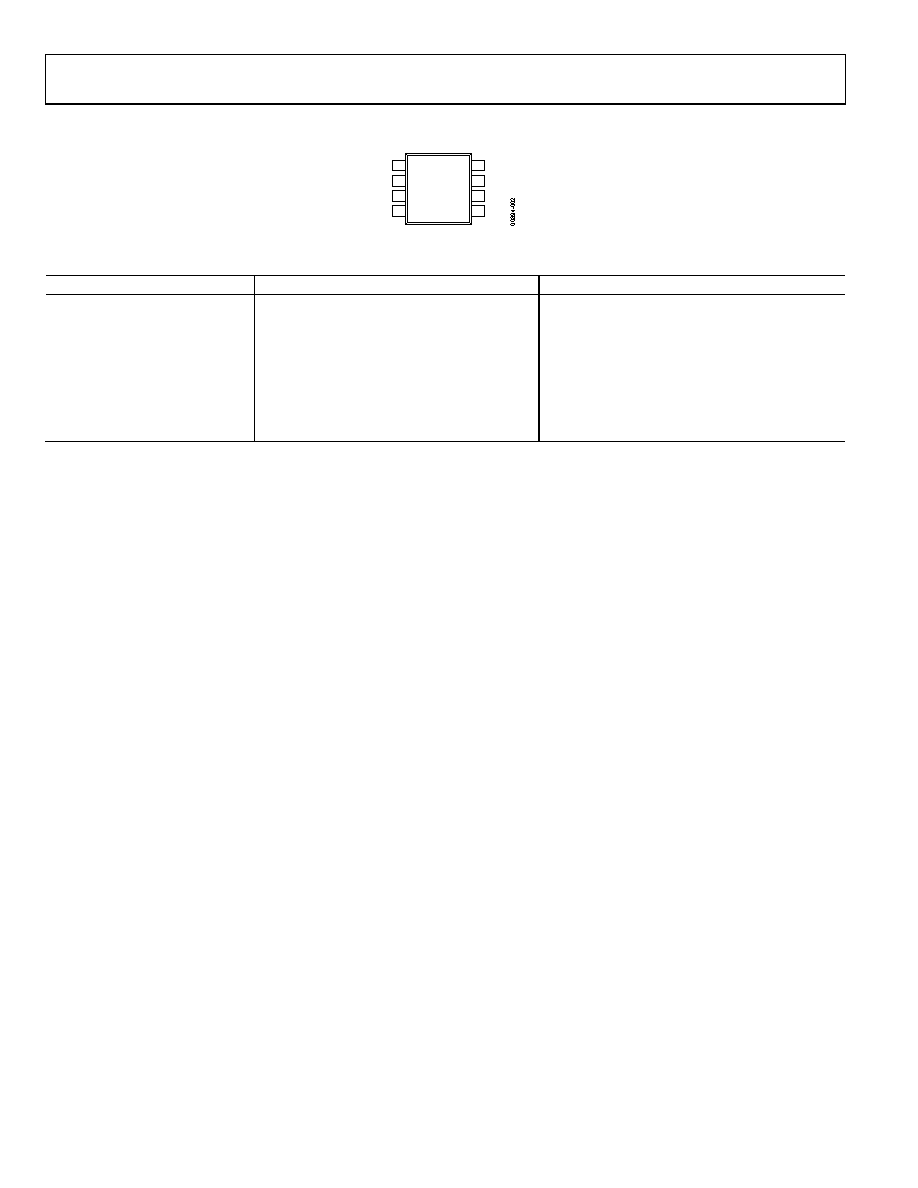

6 / 20 page ![]() AD834 Data Sheet Rev. F | Page 6 of 20 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Y1 1 Y2 2 –VS 3 W2 4 X2 8 X1 7 +VS 6 W1 5 AD834 TOP VIEW (Not to Scale) Figure 3. Pin Configuration Table 4. Pin Function Descriptions Pin No. Mnemonic Description 1 Y1 Positive Y Input 2 Y2 Negative Y Input 3 −VS Negative Power Supply 4 W2 Open-Collector Output 5 W1 Open-Collector Output 6 +VS Positive Power Supply. 7 X1 Positive X Input 8 X2 Negative X Input |
|
|
