Series AMLDW-RZ

Up to 1000mA | LED Driver

www.aimtec.com

Tel: +1 514 620 2722

Toll free: + 1 888 9 AIMTEC

(924 6832)

F 051e R12.B

2 of 3

North America only

Safety Specifications

Parameters

Standards

Designed to meet EN 60950-1

Pin Out Specifications

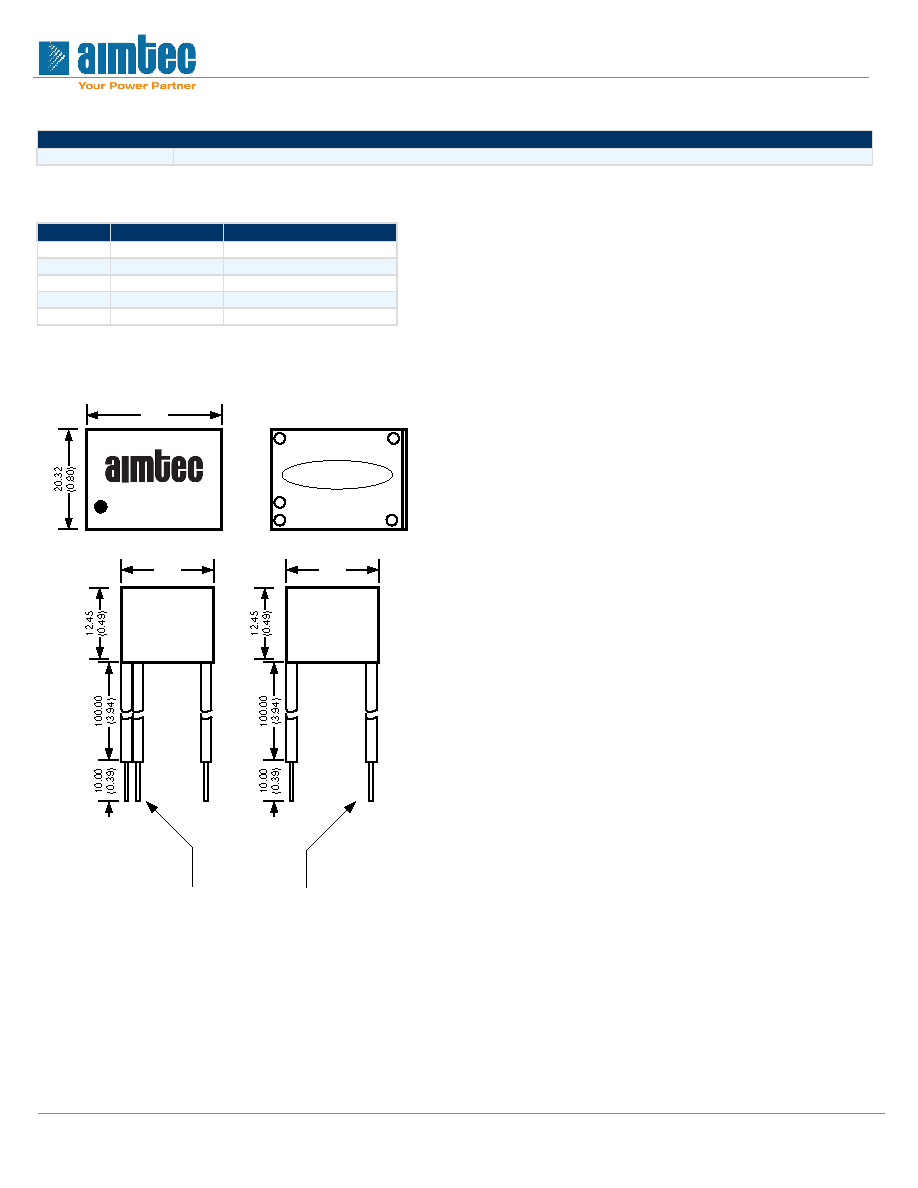

Dimensions

31.75

(1.25)

2

12

24

1

13

Bottom View

20.32

(0.80)

1 2

24

20.32

(0.80)

12

13

All Wires are

Stripped & Tinned

Lead Wires are under the specifications of general lamps:

Wire is UL 1015/CSATEM listed #22AWG / 600V / 105ºC

Pin

Single

Description

1(Black)

- V Input

- DC Supply

2(White)

Vadj

PWM/ON/OFF or not used

12(Blue)

-V Output

LED Cathode Connection

13(Yellow) + V Output

LED Anode connection

24 (Red)

+ V Input

+ DC Supply
