M24LR04E-R
RF electrical parameters
Doc ID 022208 Rev 5
129/142

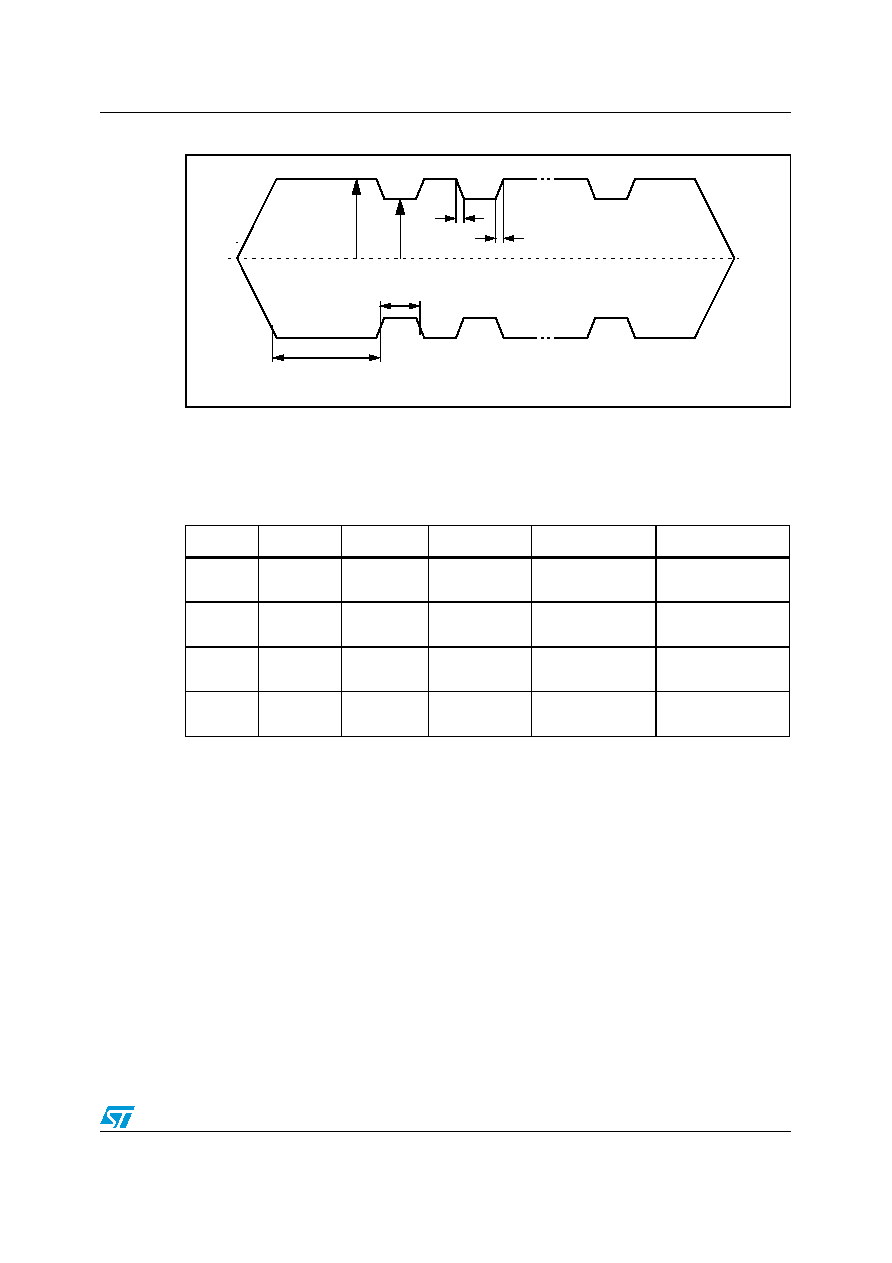

Figure 81.
ASK modulated signal
Table 125 below summarizes respectively the minimum AC0-AC1 input power level PAC0-
AC1_min required for the Energy harvesting mode, the corresponding maximum current
consumption Isink_max and variation of the analog voltage Vout for the various Energy
harvesting fan-out configurations defined by bits b0 and b1 of the Configuration byte.
Note:
We recommend to choose the Energy Harvesting Range in respect with the maximum
current requested by the application to avoid any disabling of Energy Harvesting mode (for
example, choose Range 01 for a max consumption of 2 mA).
Table 125.
Energy harvesting(1) (2)
1.
Characterized only
2.
Valid from -40 °C to +85 °C
Range
Hmin
(3)
3.
Hmin characterized according to ISO10373-7 test method
Pmin
(4)
4.
Pmin calculated from DC measurements
Vout@I=0
Vout@Isink_max
Isink_max@Pmin
00
3.5 A/m
100 mW
2.7 V min
4.5 V max
1.7 V
6 mA
01
2.4 A/m
60 mW
2.7 V min
4.5 V max
1.9 V
3 mA
10
1.6 A/m
30 mW
2.7 V min
4.5 V max
2.1 V
1 mA
11
1.0 A/m
16 mW
2.7 V min
4.5 V max
2.3 V
300 µA
MS19784V1
AB
tRFF
tRFR
tRFSBL
tMIN CD
fCC
