I2C DC and AC parameters
M24LR04E-R
126/142
Doc ID 022208 Rev 5

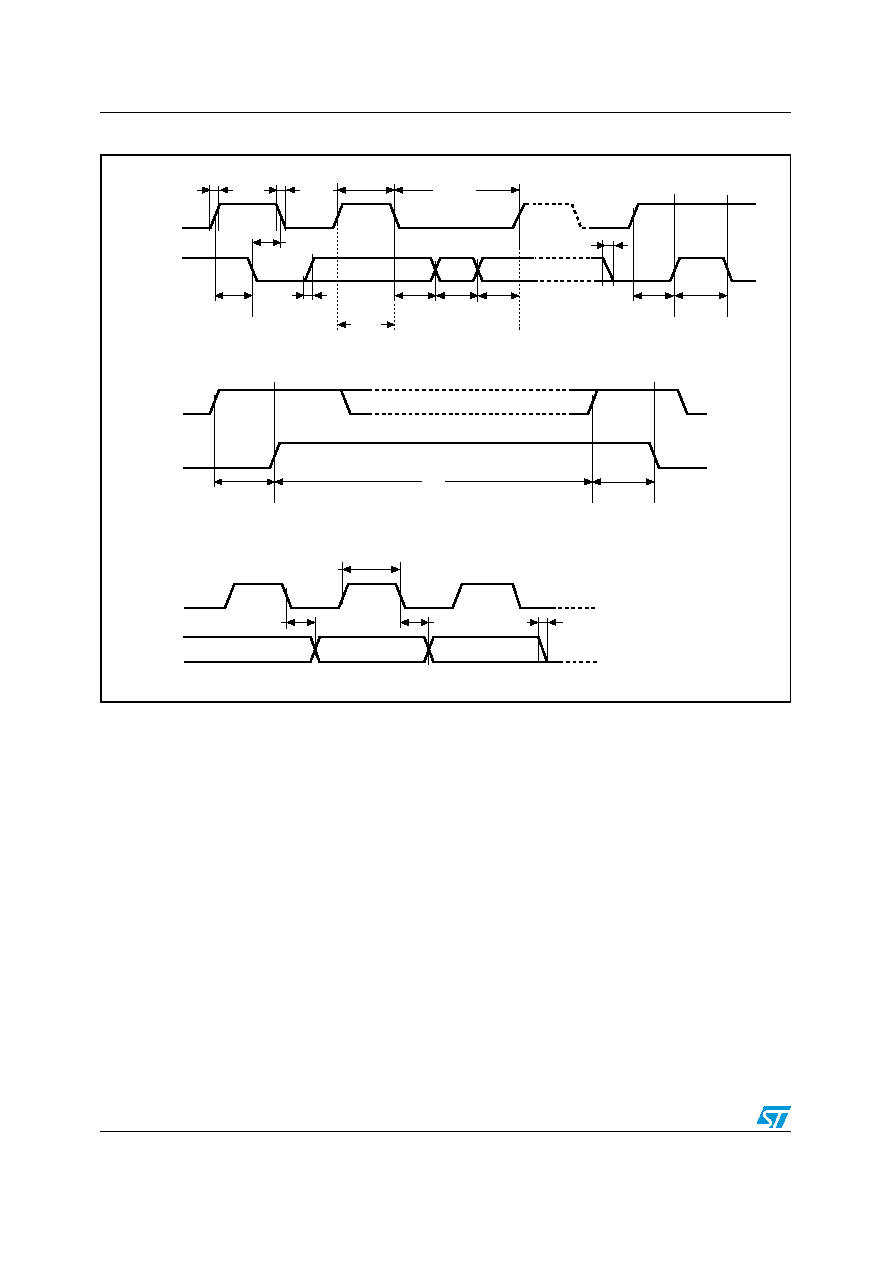

Figure 80.
I2C AC waveforms
SCL
SDA In
SCL
SDA Out
SCL
SDA In
tCHCL
tDLCL
tCHDX
Start
condition
tCLCH
tDXCX
tCLDX
SDA
Input
SDA
Change
tCHDH
tDHDL
Stop
condition
Data valid
tCLQV
tCLQX
tCHDH
Stop
condition
tCHDX
Start
condition
Write cycle
tW
AI00795e
Start
condition
tCHCL
tXH1XH2
tXH1XH2
tXL1XL2
tXL1XL2
Data valid
tDL1DL2
