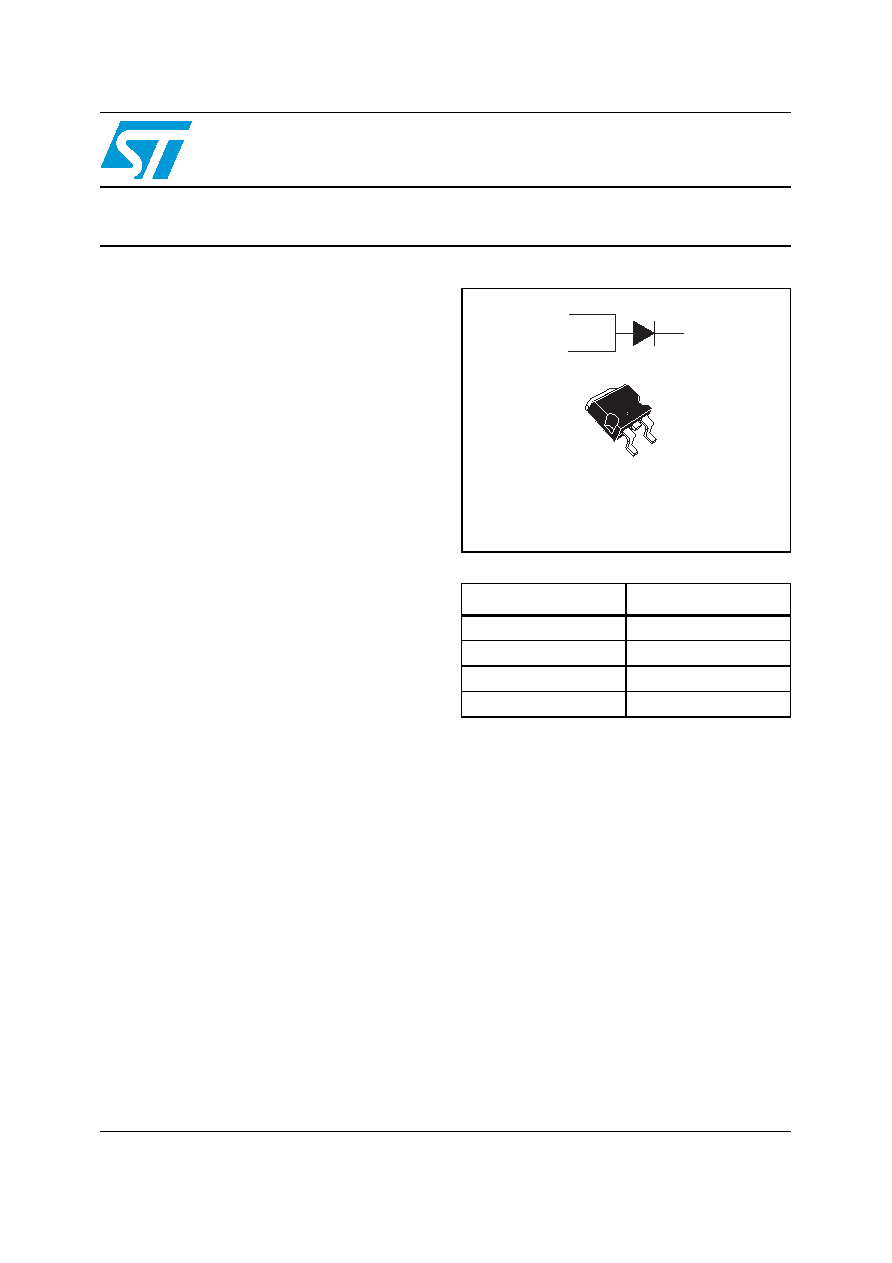

STPS5045S datasheet(1/7 Pages) STMICROELECTRONICS

Nome de Peças	STPS5045S

Descrição Electrónicos	Power Schottky rectifier

PDF	7 Pages

Scroll/Zoom	100%

Fabricante Electrônico	STMICROELECTRONICS [STMicroelectronics]

Página de início	http://www.st.com

Logo

1 / 7 page

This is information on a product in full production.

June 2012

Doc ID022861 Rev 1

1/7

7

STPS5045S

Power Schottky rectifier

Datasheet

− production data

Features

■

Low forward voltage drop

■

Very small conduction losses

■

Negligible switching losses

■

Extremely fast switching

■

Low thermal resistance

■

200 °C maximum junction temperature

■

Avalanche rated

Description

This device is a dual center tap Schottky rectifier

suited for switch mode power supply and high

frequency DC to DC converters.

Packaged in D2PAK, this device is especially

intended for use in low voltage, high frequency

inverters, freewheeling and polarity protection

applications. Also ideal for PV cell-bypass diode

for junction and smart junction boxes.

j

Table 1.

Device summary

Symbol

Value

IF(AV)

50 A

VRRM

45 V

Tj (max)

200 °C

VF(max)

0.48 V

A

K

D2PAK

STPS5045SG-TR

A

K

A
