Network Analyzer
(HP8753ES)
RL = 50
EXT TRIGGER
BIAS
P1
P2
DUT
A0
SEL
0B1
VSEL
VCC
VBIAS
A1
1B2
1B1
RL = 50
Ω
Ω
2B1
3B1
A2
A3
0B2
3B2
2B2
TS2PCIE412
www.ti.com
SCDS269C – MARCH 2009 – REVISED APRIL 2010
PARAMETER MEASUREMENT INFORMATION (continued)

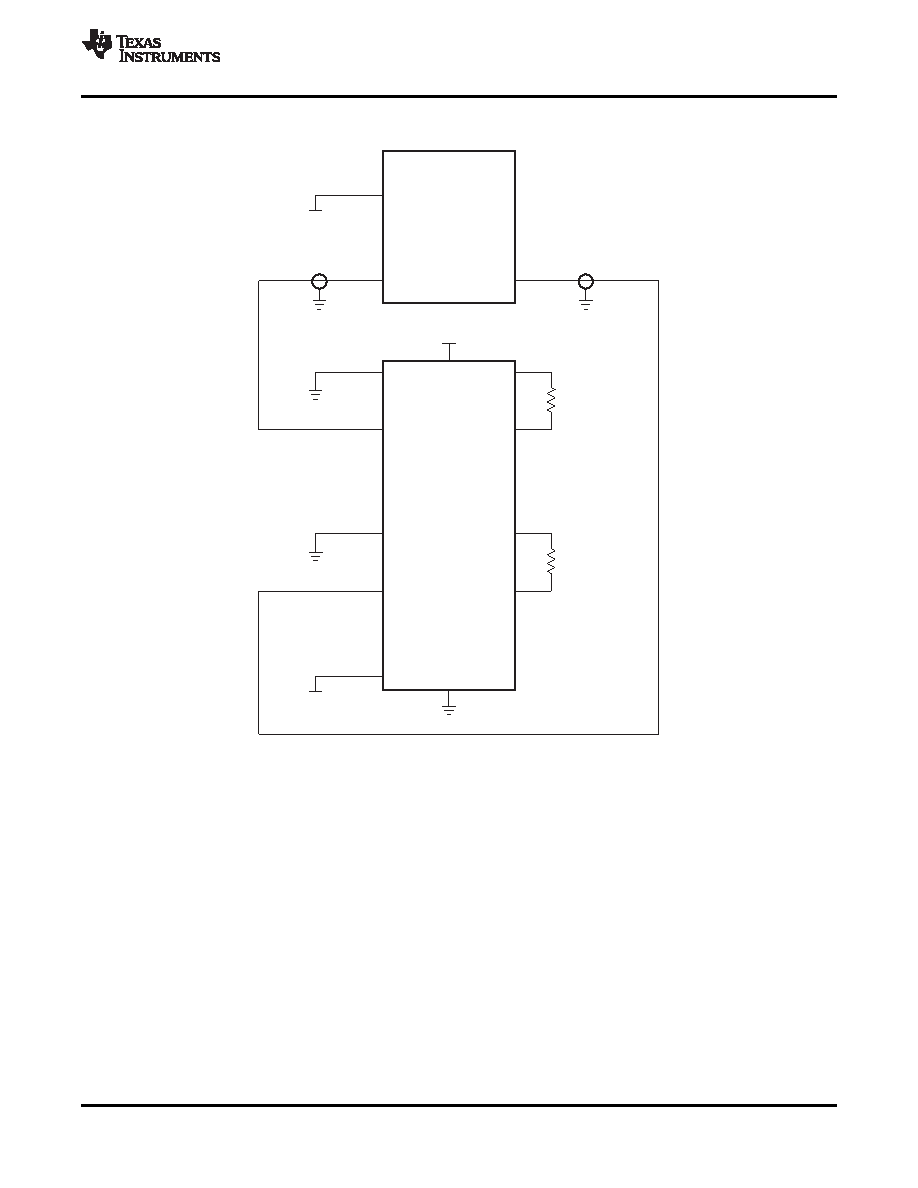

Figure 9. Test Circuit for Crosstalk (XTALK)
Crosstalk is measured at the input of the nonadjacent ON channel. For example, when VSEL = 0 V and A1 is the
input, the output is measured at A3. All unused analog input (A) ports are connected to GND, and output (B)
ports are connected to GND through 50-
Ω pulldown resistors.
HP8753ES Setup
Average = 4
RBW = 3 kHz
VBIAS = 0.35 V
ST = 2 s
P1 = 0 dBM
Copyright © 2009–2010, Texas Instruments Incorporated
Submit Documentation Feedback
11
Product Folder Link(s): TS2PCIE412
