TMP708 Folha de dados(PDF) 4 Page - Texas Instruments

Click here to check the latest version.
Nome de Peças TMP708
Descrição Electrónicos  Resistor-Programmable Temperature Switch in SOT Package
PDF  14 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  TI1 [Texas Instruments]
Página de início  http://www.ti.com
Logo TI1 - Texas Instruments

TMP708 Folha de dados(HTML) 4 Page - Texas Instruments

  TMP708 Datasheet HTML 1Page - Texas Instruments TMP708 Datasheet HTML 2Page - Texas Instruments TMP708 Datasheet HTML 3Page - Texas Instruments TMP708 Datasheet HTML 4Page - Texas Instruments TMP708 Datasheet HTML 5Page - Texas Instruments TMP708 Datasheet HTML 6Page - Texas Instruments TMP708 Datasheet HTML 7Page - Texas Instruments TMP708 Datasheet HTML 8Page - Texas Instruments TMP708 Datasheet HTML 9Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 4 / 14 page
background image
VCC
HYST
SET
GND
OT
1
2
3
5
4
TMP708
SBOS585A
– DECEMBER 2011 – REVISED FEBRUARY 2012
www.ti.com

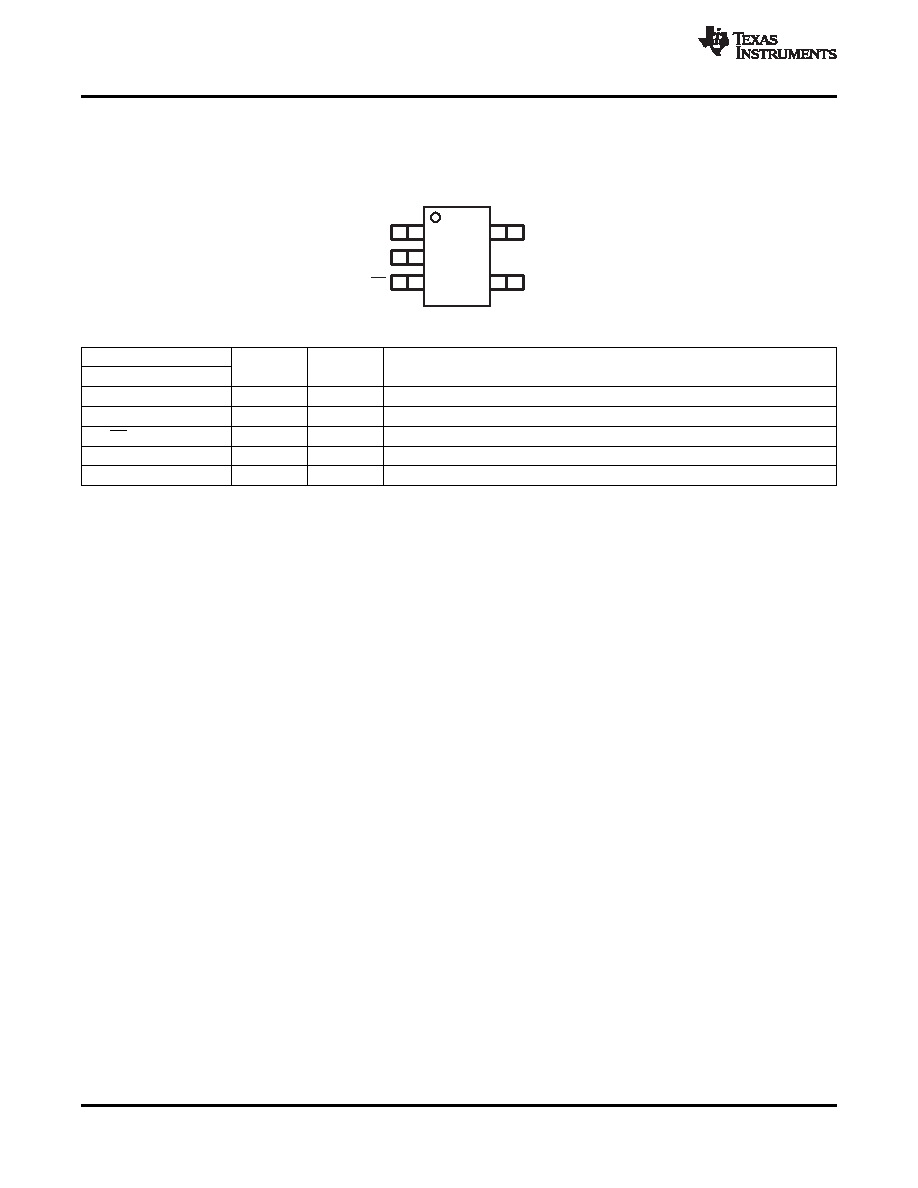

PIN CONFIGURATION
DBV PACKAGE
SOT23-5
(TOP VIEW)
PIN DESCRIPTIONS
PIN
NAME
NO.
I/O
TYPE
DESCRIPTION
GND
2
Power
Analog
Device ground
HYST
4
Input
Digital
Hysteresis selection. For 10
°C, HYST = VCC; for 30°C, HYST = GND.
OT
3
Output
Digital
Open-drain, active low output
SET
1
Input
Analog
Temperature set point. Connect an external 1% resistor between SET and GND.
VCC
5
Power
Analog
Power-supply voltage (2.7 V to 5.5 V)
4
Submit Documentation Feedback
Copyright
© 2011–2012, Texas Instruments Incorporated
Product Folder Link(s): TMP708
