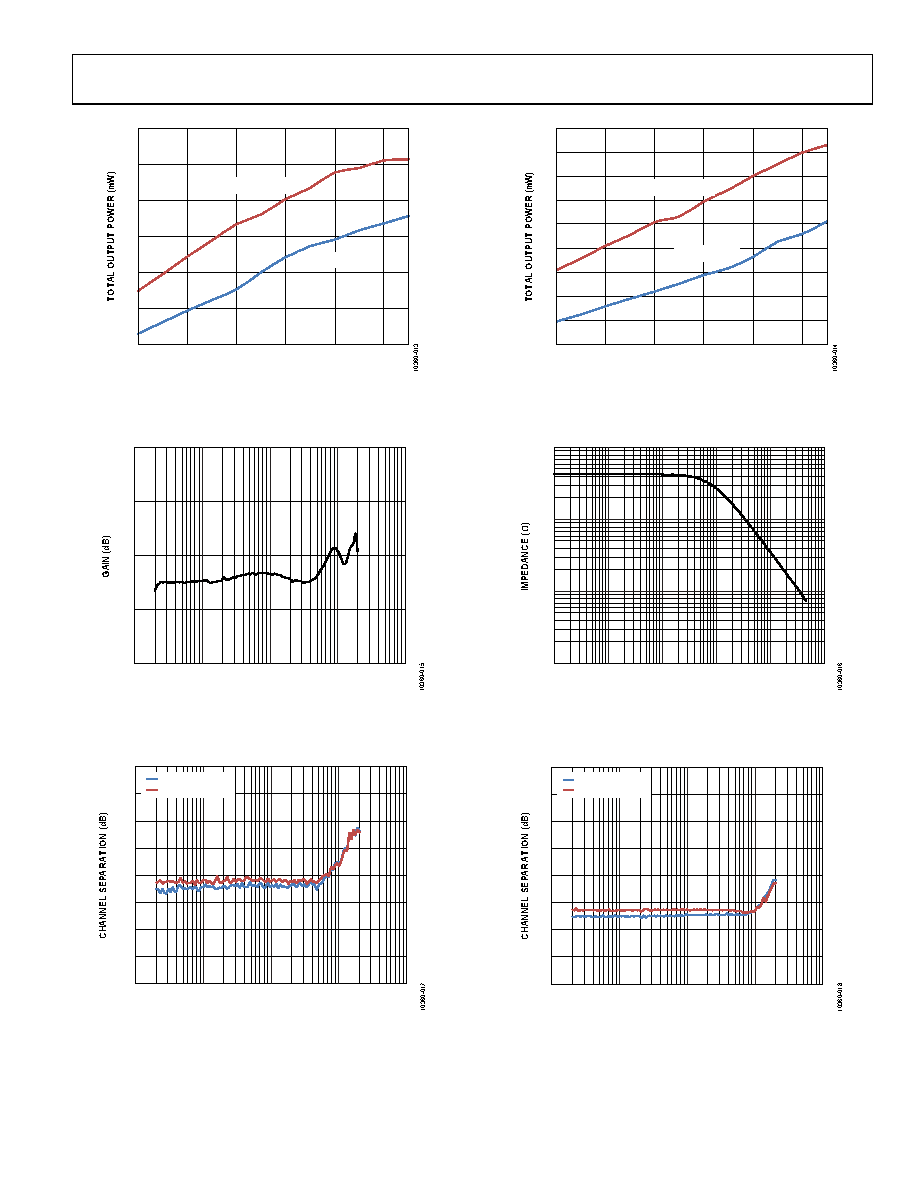

Data Sheet
SSM2932
Rev. 0 | Page 9 of 16
170
150
130
110
90
70
50
2.5
2.7
2.9
3.1
3.3
3.5
SUPPLY VOLTAGE (V)
THD + N = 1%
THD + N = 10%
Figure 15. Output Power vs. Supply Voltage, RL = 32 Ω
0.2
0.1
0
–0.1
–0.2
10
100
1k
10k
100k
FREQUENCY (Hz)
Figure 16. Frequency Response, PVDD = 3.0 V
–75
–80
–85
–90
–95
–100
–105
–110
–115
10
100
1k
10k
100k
FREQUENCY (Hz)
RIGHT TO LEFT
LEFT TO RIGHT
Figure 17. Channel Separation vs. Frequency, PVDD = 3.0 V, RL = 32 Ω
210
190
170
150
130
90
110
30
50
70
2.5
2.7
2.9
3.1
3.3
3.5
SUPPLY VOLTAGE (V)
THD + N = 1%
THD + N = 10%
Figure 18. Output Power vs. Supply Voltage, RL = 16 Ω
100k
1k
10k
100
100
1k
10k
100k
1M
10M
FREQUENCY (Hz)
Figure 19. High-Z Mode Output Impedance vs. Frequency
–55
–60
–65
–70
–75
–80
–85
–90
–95
10
100
1k
10k
100k
FREQUENCY (Hz)
RIGHT TO LEFT
LEFT TO RIGHT
Figure 20. Channel Separation vs. Frequency, PVDD = 3.0 V, RL = 16 Ω
