Data Sheet
ADP2370/ADP2371
Rev. A | Page 11 of 32
0
10
20
30
40
50
60
70
80
90
100
0.01
0.10
1.0
10
100
1000
LOAD (mA)
5.4V
6.0V
7.2V
9.0V
10.8V
12.8V
15.0V

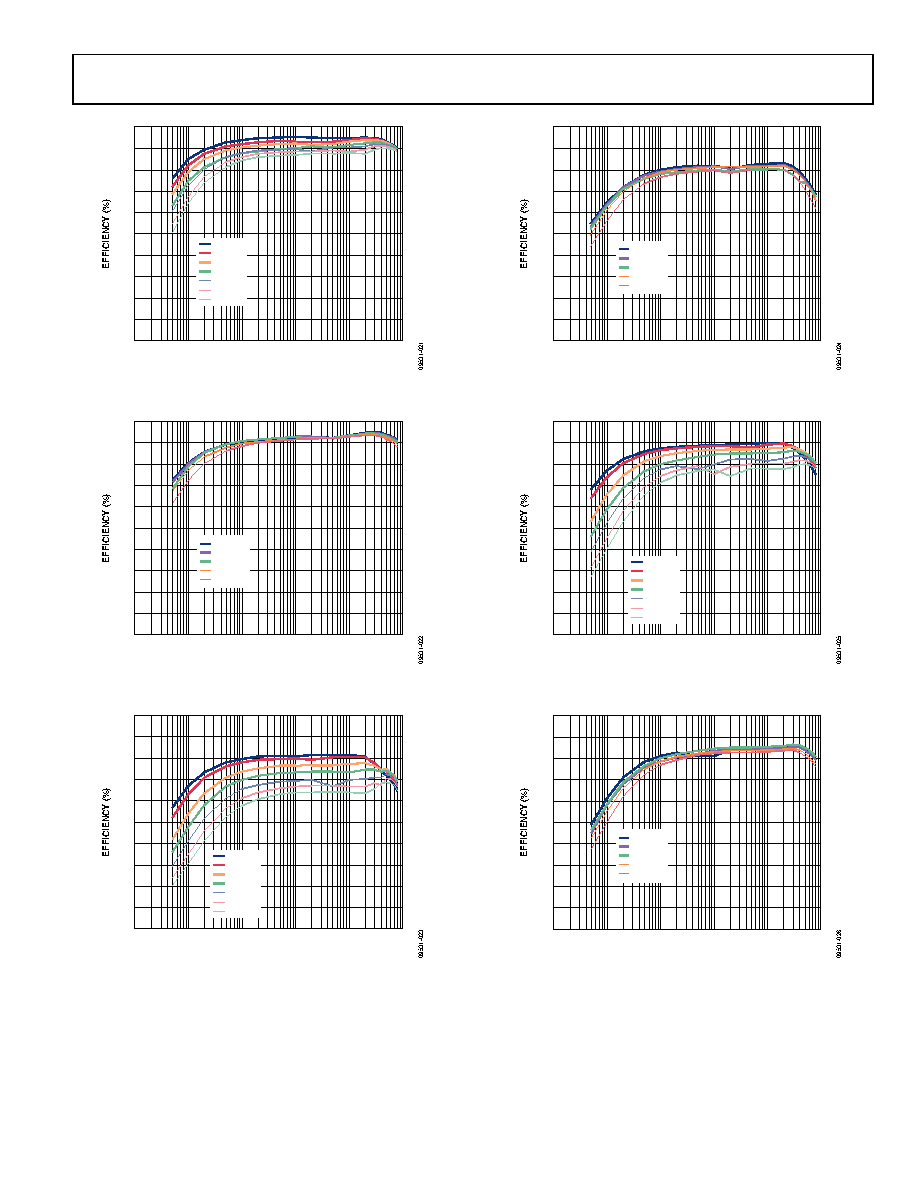

Figure 21. Efficiency vs. Load Current, VOUT = 5.0 V, Different Input Voltages
0
10
20
30
40
50
60
70
80
90
100
0.01
0.10
1.0
10
100
1000
LOAD (mA)
–40°C
–5°C
+25°C
+85°C
+125°C
Figure 22. Efficiency vs. Load Current, VOUT = 5.0 V, Different Temperatures
0
10
20
30
40
50
60
70
80
90
100
0.01
0.10
1.0
10
100
1000
LOAD (mA)
3.20V
3.95V
5.50V
7.20V
9.95V
12.45V
15.20V
Figure 23. Efficiency vs. Load Current, VOUT = 1.2 V, Different Input Voltages
0
10
20
30
40
50
60
70
80
90
100
0.01
0.10
1.0
10
100
1000
LOAD (mA)
–40°C
–5°C
+25°C
+85°C
+125°C
Figure 24. Efficiency vs. Load Current, VOUT = 1.2 V, Different Temperatures,
VIN = 4 V
0
10
20
30
40
50
60
70
80
90
100
0.01
0.10
1.0
10
100
1000
LOAD (mA)
3.20V
3.95V
5.50V
7.20V
9.95V
12.45V
15.20V
Figure 25. Efficiency vs. Load Current, VOUT = 1.8 V, Different Input Voltages
0
10
20
30
40
50
60
70
80
90
100
0.01
0.10
1.0
10
100
1000
LOAD (mA)
–40°C
–5°C
+25°C
+85°C
+125°C
Figure 26. Efficiency vs. Load Current, VOUT = 1.8 V, Different Temperatures,
VIN = 4 V
