ADP1876ACPZ-R7 Folha de dados(PDF) 13 Page - Analog Devices

Nome de Peças ADP1876ACPZ-R7
Descrição Electrónicos  600 kHz Dual Output Synchronous Buck
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Fabricante Electrônico  AD [Analog Devices]
Página de início  http://www.analog.com
Logo AD - Analog Devices

ADP1876ACPZ-R7 Folha de dados(HTML) 13 Page - Analog Devices

Back Button ADP1876ACPZ-R7 Datasheet HTML 9Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 10Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 11Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 12Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 13Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 14Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 15Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 16Page - Analog Devices ADP1876ACPZ-R7 Datasheet HTML 17Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 24 page
background image
Data Sheet
ADP1876
Rev. A | Page 13 of 24

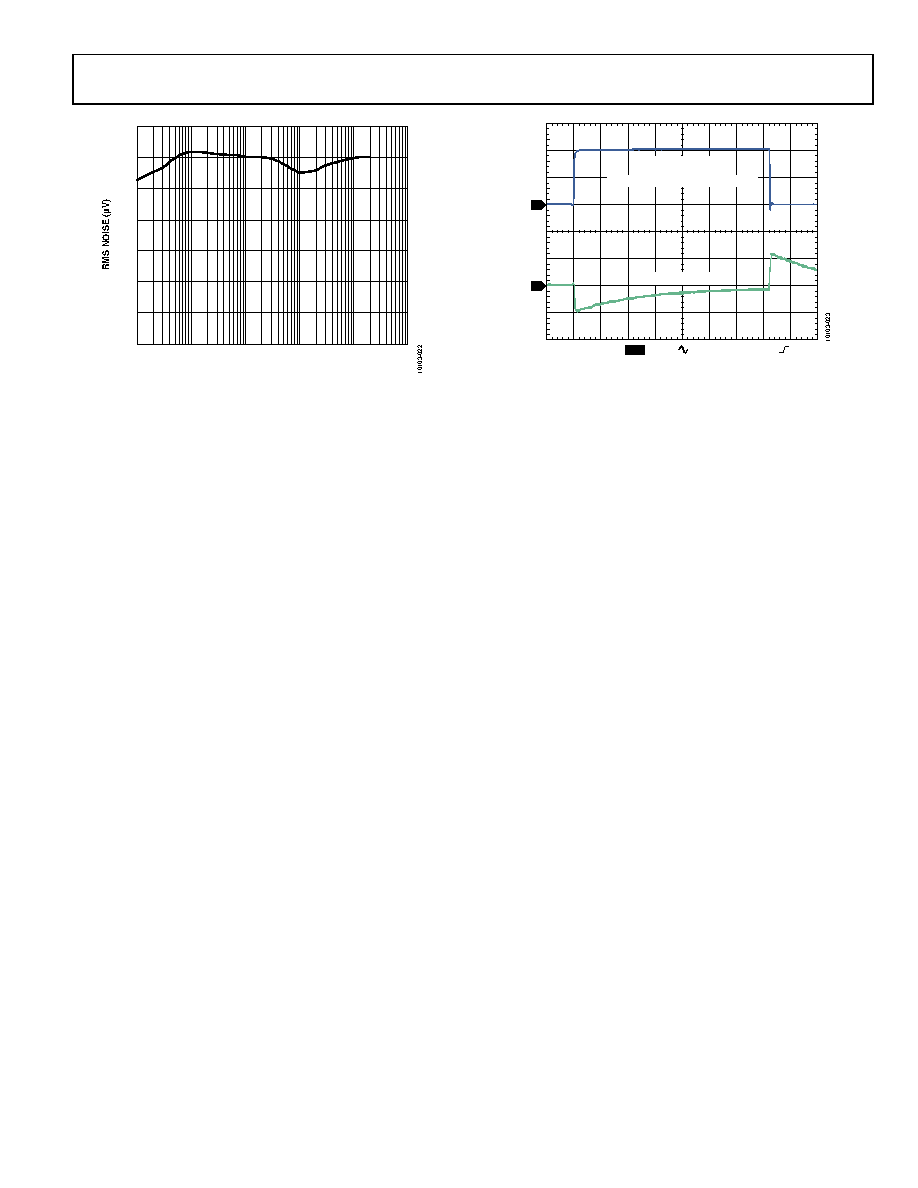

Figure 22. VOUTLDO Noise Spectral Density
Figure 23. VOUTLDO Step Load Transient
0
5
10
15
20
25
30
35
10µ
100µ
1m
10m
100m
1
VOUTLDO LOAD (A)
CH1
100mA Ω BW
M10.0µs A CH1
118mA
2
1
CH2 50.0mV
B
W
STEP LOAD
1mA TO 200mA
CINLDO = 1µF; COUTLDO = 4.7µF
OUTPUT TRANSIENT
