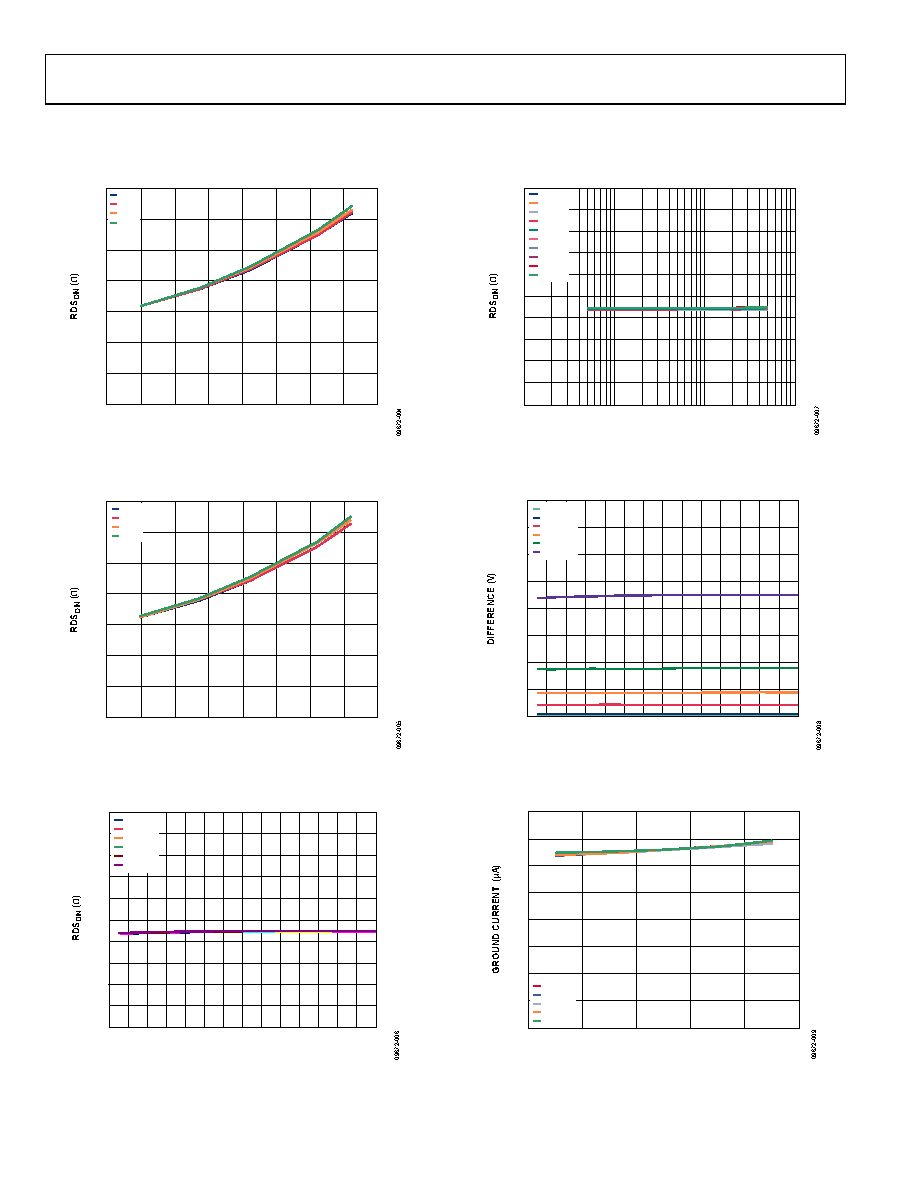

TYPICAL PERFORMANCE CHARACTERISTICS

VIN = 1.2 V, VEN = VIN, CIN = COUT = 1 μF, TA = 25°C, unless otherwise noted.

0.01

0.02

0.03

0.04

0.05

0.07

0.06

–60

–40

–20

100

TEMPERATURE (°C)

0.9V

1.0V

1.5V

2.6V

Figure 4. RDSON vs. Temperature, 50 mA, Different Input Voltage (VIN)

0.01

0.02

0.03

0.04

0.05

0.07

0.06

–60

–40

–20

20406080

100

TEMPERATURE (°C)

0.9V

1.0V

1.5V

2.6V

Figure 5. RDSON vs. Temperature, 500 mA, Different Input Voltage (VIN)

0.01

0.02

0.03

0.04

0.05

0.06

0.07

0.08

0.09

0.10

0.8

1.2

1.6

2.0

2.4

2.8

3.2

3.6

VIN (V)

5mA

10mA

50mA

100mA

200mA

500mA

Figure 6. RDSON vs. Input Voltage (VIN), Different Load Currents

0.01

0.02

0.03

0.04

0.05

0.10

0.06

0.07

0.08

0.09

100

1000

LOAD (mA)

0.90V

0.95V

1.00V

1.20V

1.50V

1.80V

2.20V

2.60V

3.20V

3.60V

Figure 7. RDSON vs. Load Current, Different Input Voltage (VIN)

0.005

0.010

0.015

0.020

0.025

0.030

0.035

0.040

0.8

1.2

1.6

2.0

2.4

2.8

3.2

3.6

VIN (V)

5mA

10mA

50mA

100mA

200mA

500mA

Figure 8. Voltage Drop vs. Temperature, Different Load Currents

–40

–5

TEMPERATURE (°C)

10mA

50mA

100mA

200mA

500mA

Figure 9. Ground Current vs. Temperature,

Different Load Currents, VIN = 0.9 V
