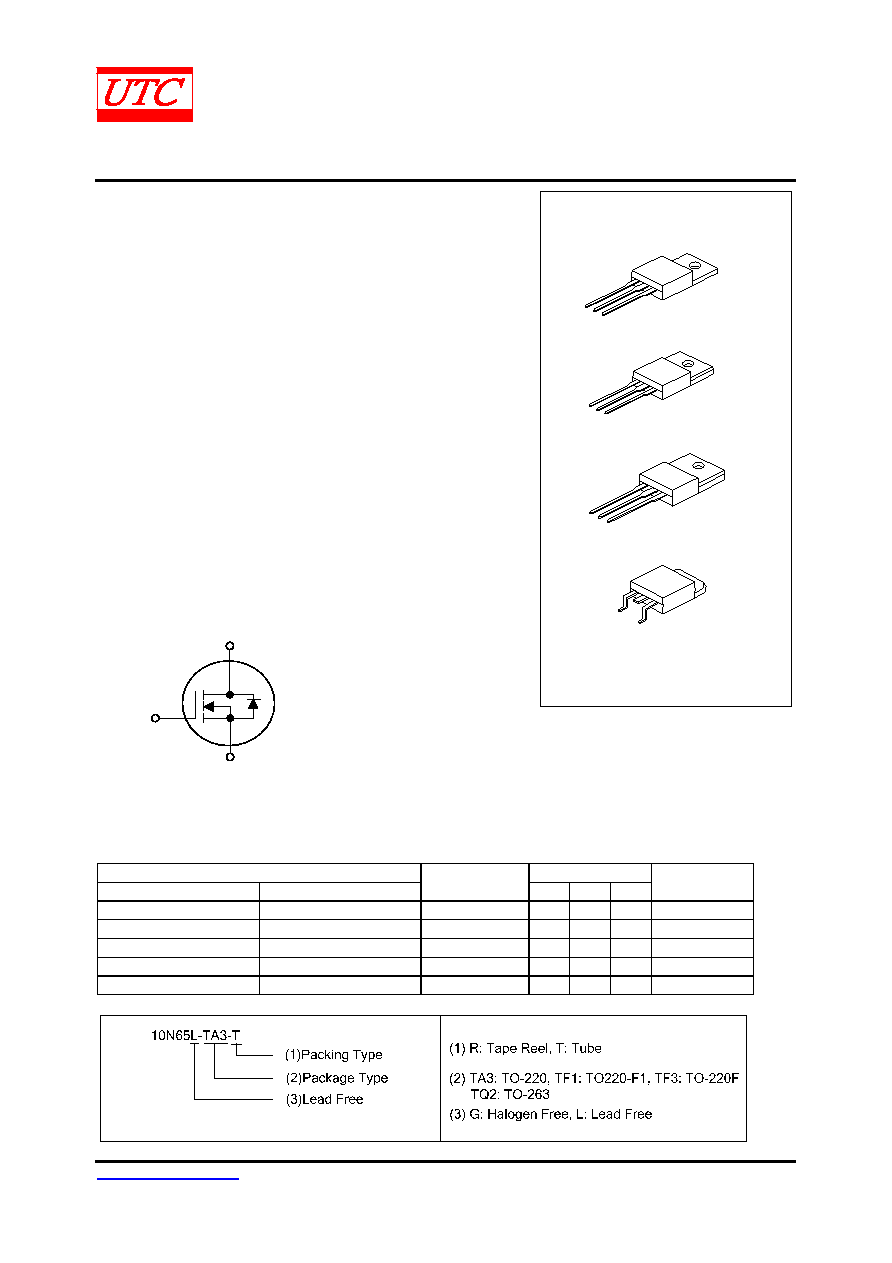

UNISONIC TECHNOLOGIES CO., LTD

10N65

Power MOSFET

www.unisonic.com.tw

1 of 7

Copyright © 2011 Unisonic Technologies Co., Ltd

QW-R502-588.C

10A, 650V N-CHANNEL

POWER MOSFET

DESCRIPTION

The UTC 10N65 is a high voltage and high current power MOSFET,

designed to have better characteristics, such as fast switching time, low

gate charge, low on-state resistance and a high rugged avalanche

characteristics. This power MOSFET is usually used at high speed

switching applications in power supplies, PWM motor controls, high

efficient DC to DC converters and bridge circuits.

FEATURES

* Low gate charge ( typical 44 nC)

* Low Crss ( typical 18 pF)

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability

SYMBOL

1.Gate

3.Source

2.Drain

TO-220

1

1

TO-220F

1

TO-220F1

TO-263

1

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

10N65L-TA3-T

10N65G-TA3-T

TO-220

G

D

S

Tube

10N65L-TF1-T

10N65G-TF1-T

TO-220F1

G

D

S

Tube

10N65L-TF3-T

10N65G-TF3-T

TO-220F

G

D

S

Tube

10N65L-TQ2-R

10N65G-TQ2-R

TO-263

G

D

S

Tape Reel

10N65L-TQ2-T

10N65G-TQ2-T

TO-263

G

D

S

Tube

Note: Pin Assignment: G: Gate D: Drain S: Source
