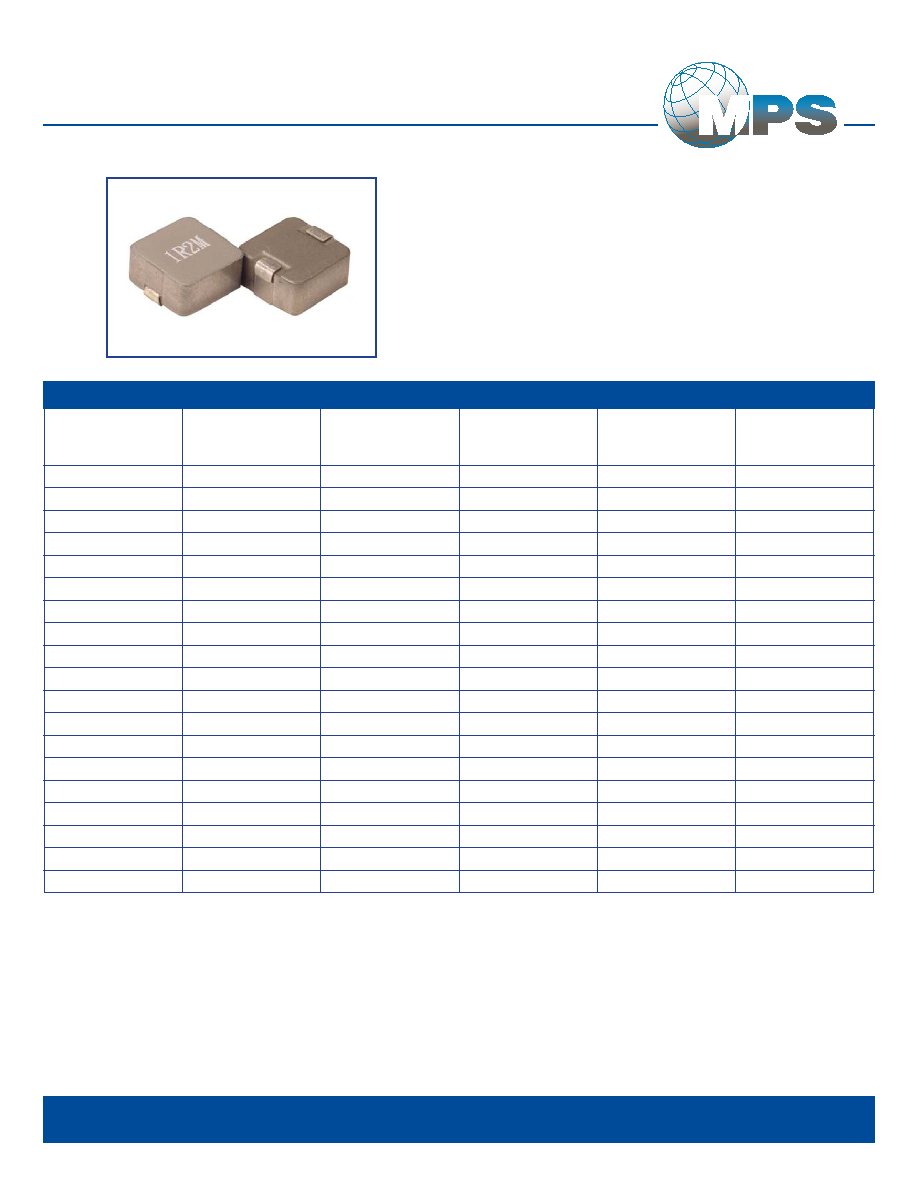

SHIELDED SMD

POWER INDUCTOR

PSE104 SERIES

• High current inductor for Voltage Regulated Module

(VRM)

• Good for DC/DC converter and switch-mode power

supply applications

• High current in compact package

• RoHS compliant product

Industries

Part Number

PSE104-

Inductance

(µH)

±20%

DCR

(mΩ)

Typ

DCR

(mΩ)

Max

I

DC

(A)

Typ

I

SAT

(A)

Typ

R22M

0.22

1.1

1.5

32.0

50.0

R36M

0.36

1.5

1.7

31.5

50.0

R47M

0.47

1.5

1.9

27.5

49.0

R56M

0.56

1.9

2.3

27.5

49.0

R68M

0.68

2.0

2.5

23.0

40.0

R88M

0.88

2.7

3.0

20.0

38.0

1R0M

1.0

3.7

4.1

17.5

36.0

1R5M

1.5

5.3

6.0

15.0

27.5

1R8M

1.8

7.0

8.2

15.0

27.5

2R2M

2.2

8.2

9.0

12.0

25.6

3R3M

3.3

10.8

12

10.0

18.6

4R7M

4.7

15.0

16.5

9.5

17.0

5R6M

5.6

17.6

19.3

8.5

16.0

6R8M

6.8

19.5

25.0

8.0

14.0

8R2M

8.2

21.2

23.3

8.0

13.5

100M

10.0

33.2

36.5

6.8

12.0

150M

15.0

51.0

65.0

3.5

7.0

220M

22.0

90.0

120.0

2.0

3.0

330M

33.0

155.0

200.0

1.8

2.8

•

Inductance measured at 100kHz / 0.1V

RMS

•

I

•

I

•

Inductance tolerance M=20%

•

Ambienttemperature:125°CMax.

Productperformanceislimitedtospecifiedparameters.Dataissubjecttochangewithoutpriornotice.

Dimensions

Unlessotherwisespecified,alltolerancesare:

inch: .XX : ±0.015

.XXX : ±0.004

mm: X,X : ±0,38

X,XX : ±0,10
