SPHERICAL
Rad
Rad
Side View
HORIZONTAL/SPHERICAL
LINEAR
SPLINE

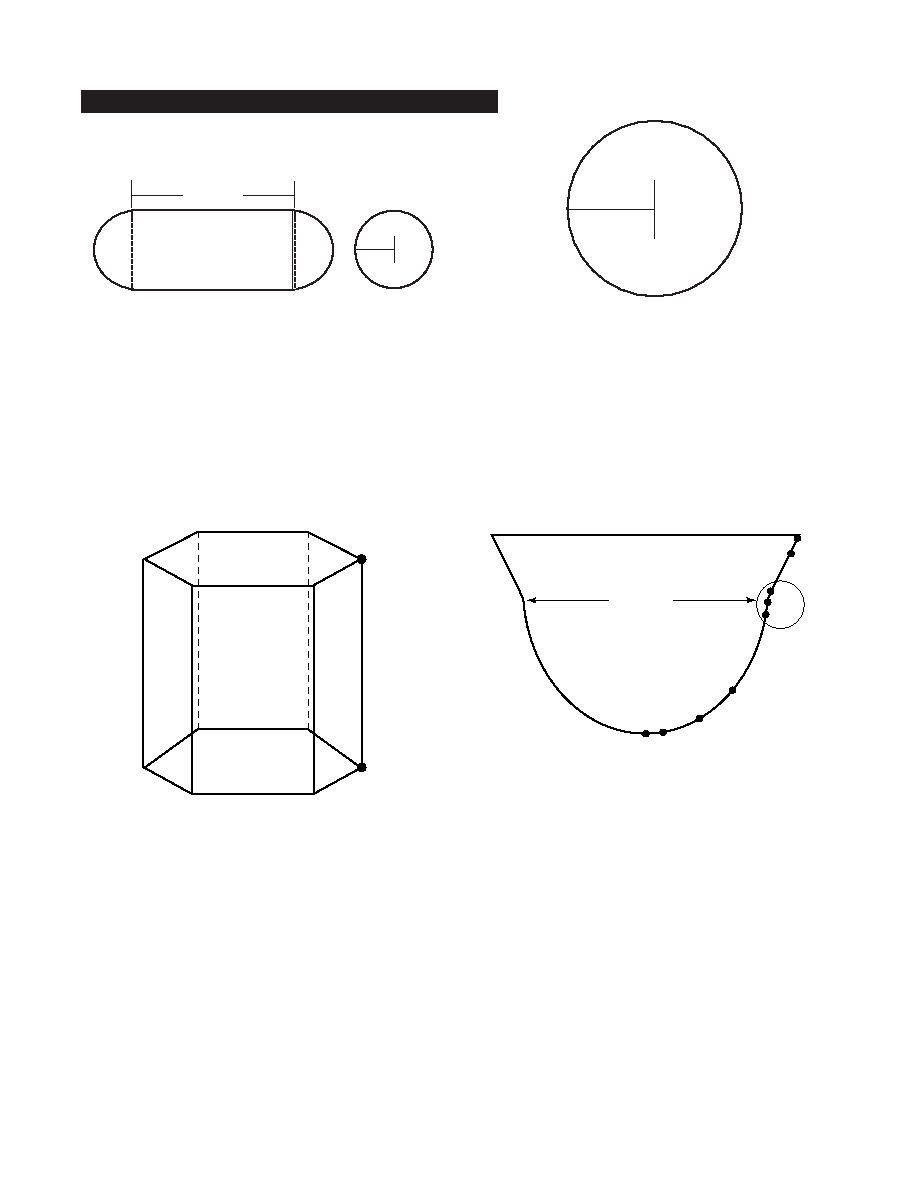

Figure 11
Vessel Drawings cont.
Figure 12
Custom Table (Volume and Level)
Length
SOFTWARE CONFIGURATION cont.
19
P2
P1
P1
P2
P3
P4
P5
P6
P7
P8
P9
Transition
point
Use where walls are not perpendicular to base.
Concentrate at least two points at beginning (P1) and end (P9);
and three points at either side of transition points.
SYSTEM CONFIGURATION MENU—VOLUME AND LEVEL cont.
