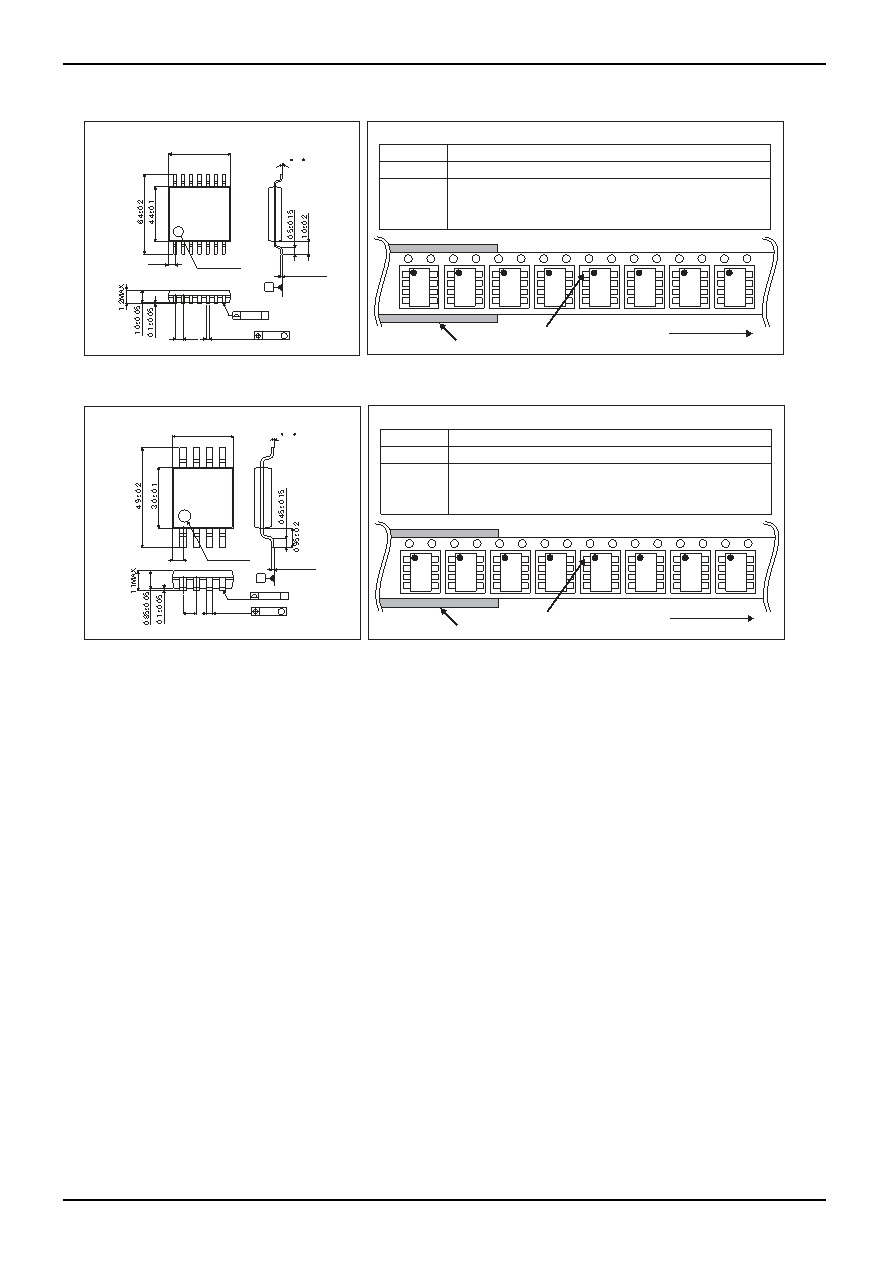

LM393DGKR datasheet(17/18 Pages) ROHM

17 / 18 page

Technical Note

17/17

LM393DR/PWR/DGKR,LM2903DR/PWR/DGKR/VQDR/VQPWR

LM339DR/PWR,LM2901DR/PWR/VQDR/VQPWR

www.rohm.com

2011.06 - Rev.B

(Unit : mm)

MSOP / VSSOP8

0.08 M

0.08 S

± 4

(MAX 3.35 include BURR)

1PIN MARK

0.65

3.0

±0.1

0.145

0.32

0.525

+0.05

−0.03

+0.05

−0.04

∗Order quantity needs to be multiple of the minimum quantity.

Embossed carrier tape

Tape

Quantity

Direction

of feed

2500pcs

The direction is the 1pin of product is at the upper left when you hold

reel on the left hand and you pull out the tape on the right hand

()

Direction of feed

Reel

1pin

(Unit : mm)

TSSOP14

0.08 S

0.08 M

(Max 5.35 include BURR)

1PIN MARK

0.245

+0.05

−0.04

0.65

0.145

+0.05

−0.03

±4

0.55

5.0

±0.1

∗Order quantity needs to be multiple of the minimum quantity.

Embossed carrier tape

Tape

Quantity

Direction

of feed

2500pcs

The direction is the 1pin of product is at the upper left when you hold

reel on the left hand and you pull out the tape on the right hand

()

Direction of feed

Reel

1pin
